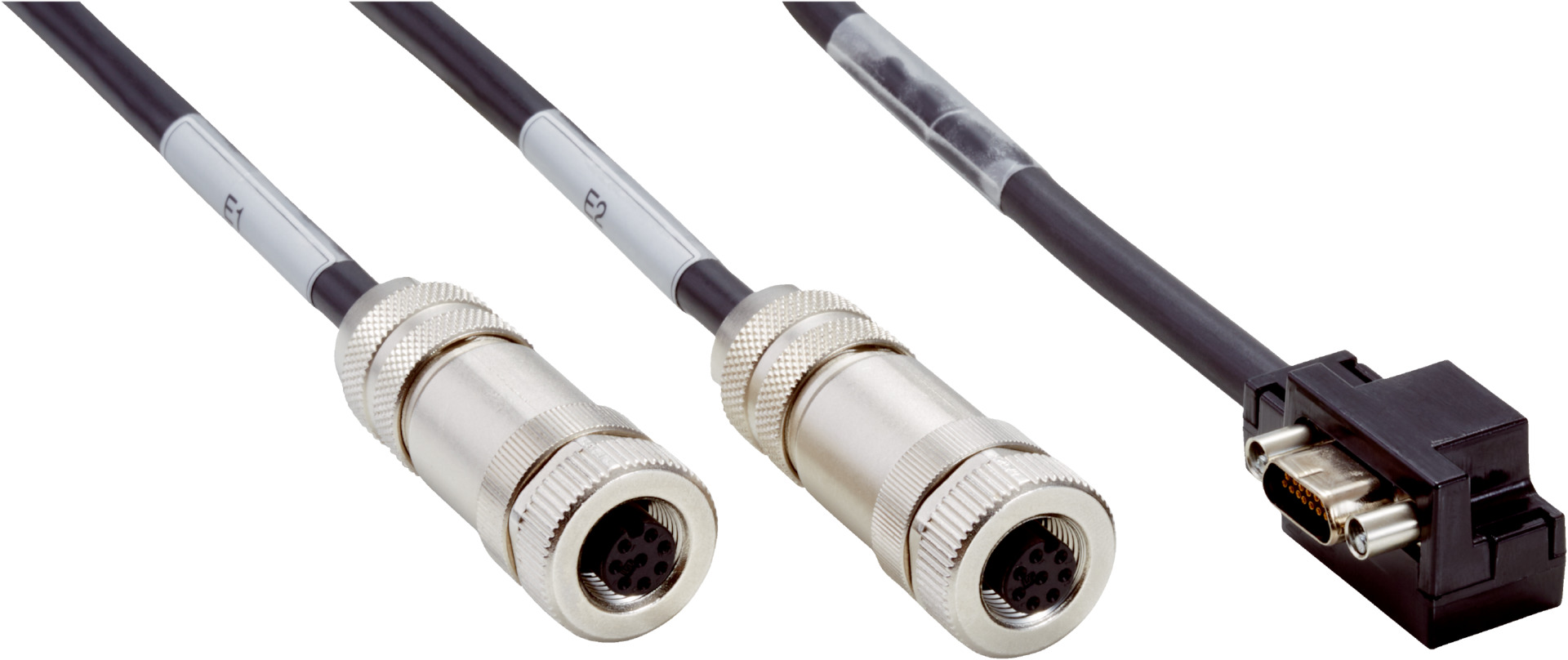

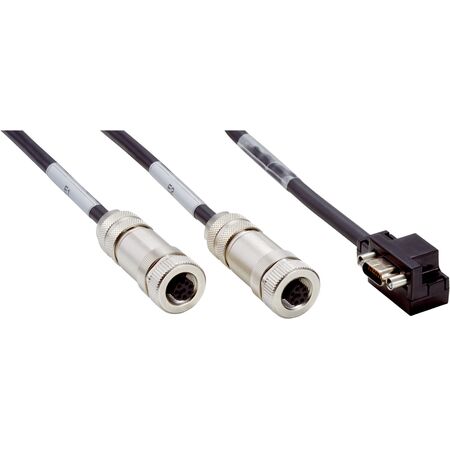

FX3-MOC Y-CABLE | Male D-Sub 15-pin & Dual M12 Connectors | 2.4m Length | by SICK
The FX3-MOC Y-CABLE features a male D-Sub 15-pin connector and two female M12 8-pin connectors, making it perfect for industrial automation systems. With a flexible 2.4m PVC cable and a temperature range of -25°C to +80°C, this cable ensures reliable signal transmission in manufacturing environments. Ideal for connecting sensors and actuators, it offers a secure screw connection and shielded design for enhanced performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Accessory family: Other adapters
- Connection type head A: Male connector, D-Sub, 15-pin, Form A
- Connection type head B: Female connector, M12, 8-pin, A-coded
- Connection type head C: Female connector, M12, 8-pin, A-coded
- Locking plug connector: Screw connection
- Connecting cable length: 2.4 m
- Cable material: PVC
- Cable color: Black
- Conductor cross section: AWG28, AWG26
- Cable diameter: 6.6 mm, 6.2 mm
- Housing material: Plastic/metal
- Housing color: Black
- Locking nut material: Steel
- Shielding: Shielded
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature: -25°C to +80°C (stationary), -10°C to +80°C (flexible)
- Dimensions (H x L x W): 30mm x 2400mm x 150mm
- Weight: 0.2 kg
Key Features
- Male D-Sub 15-pin connector (Form A) on head A
- Two female M12 8-pin A-coded connectors on heads B and C
- Screw connection locking plug for secure attachment
- Shielded cable for interference protection
- Flexible PVC cable with 2.4 m length
- Operating temperature range from -25°C to +80°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation systems requiring reliable signal transmission
- Connection of sensors and actuators in manufacturing environments
- Use in machinery and control panels for signal distribution
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing electronic waste
- Shielded design reduces electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK FX3-MOC Y-Cable is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
