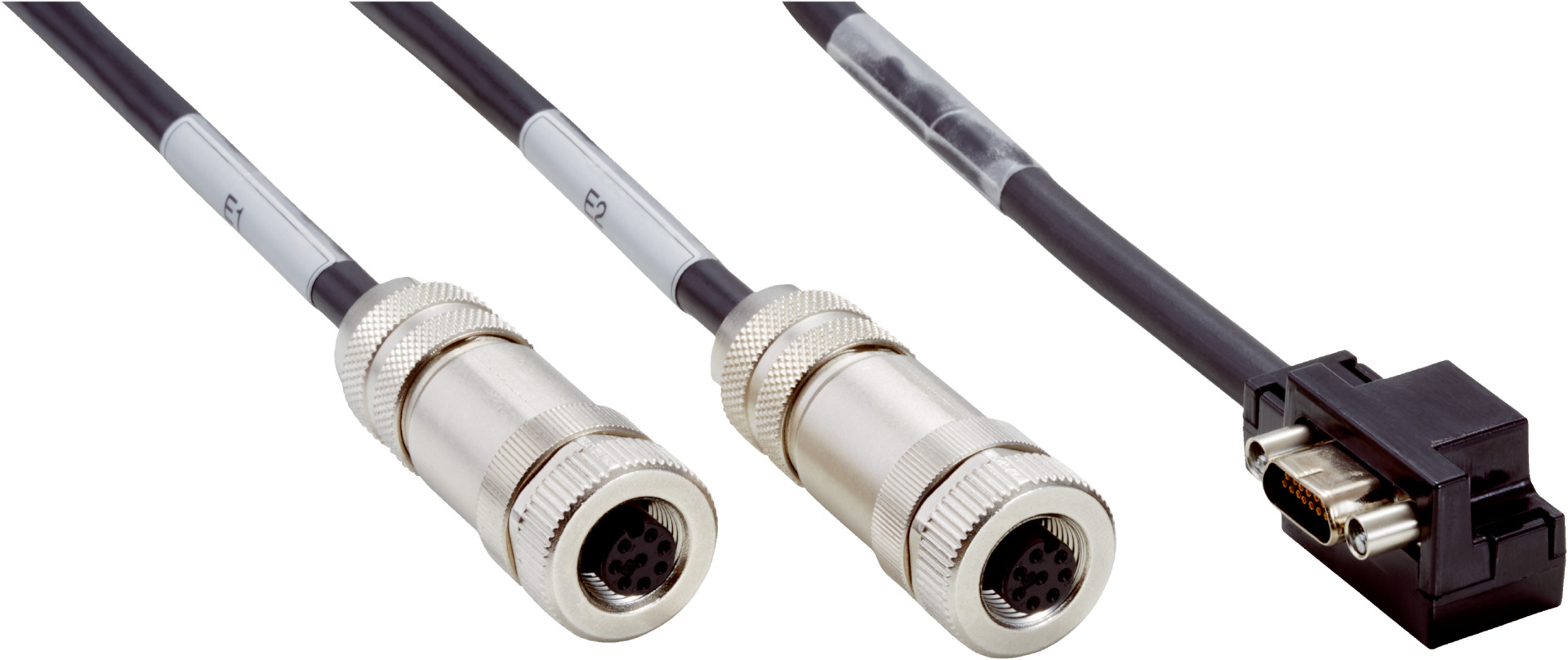

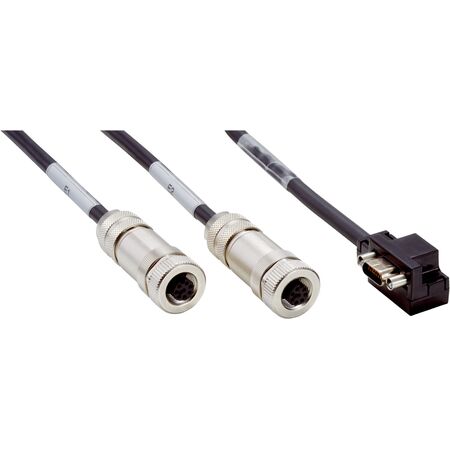

FX3-MOC Y-Cable | Male D-Sub 15-Pin & Dual M12 Connectors | Shielded PVC | by SICK
The FX3-MOC Y-Cable features a male D-Sub 15-pin connector and two female M12 8-pin A-coded connectors, making it perfect for industrial automation systems that require signal splitting or extension. Built with durable PVC and a shielded design, this cable minimizes electromagnetic interference, ensuring reliable performance in factory automation and control panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Accessory family: Other adapters
- Connection type head A: Male connector, D-Sub, 15-pin, Form A
- Connection type head B: Female connector, M12, 8-pin, A-coded
- Connection type head C: Female connector, M12, 8-pin, A-coded
- Locking plug connector: Screw connection
- Connecting cable length: 0.6 m
- Cable material: PVC
- Cable color: Black
- Conductor cross section: AWG28, AWG26
- Cable diameter: 6.6 mm, 6.2 mm
- Housing material: Plastic/metal
- Housing color: Black
- Locking nut material: Steel
- Shielding: Shielded
- Bending radius flexible use: > 12 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature: -25°C to +80°C (stationary), -10°C to +80°C (flexible)
- Dimensions (H x L x W): 20mm x 600mm x 20mm
- Weight: 0.1 kg
Key Features
- Male D-Sub 15-pin connector (Form A) on head A
- Two female M12 8-pin A-coded connectors on heads B and C
- Shielded cable with PVC material for durability
- Screw connection locking plug for secure attachment
- Flexible cable with bending radius > 12 x cable diameter for flexible use
- Operating temperature range from -25°C to +80°C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation systems requiring signal splitting or extension
- Connection of sensors and actuators with D-Sub and M12 interfaces
- Use in factory automation and control panels
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable PVC cable reduces need for frequent replacements
- Shielded design minimizes electromagnetic interference, improving system efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK FX3-MOC Y-Cable is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
