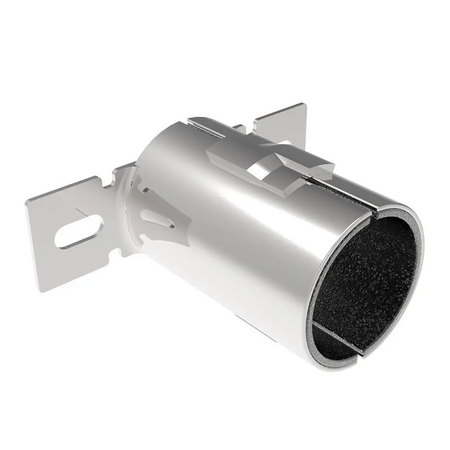

FyreCOLLAR Conduit Collar 32mm Grey Fire Factory Australia
Fire Factory Australia FyreCOLLAR Conduit Collar 32mm Intumescent Fire Stopping Suited for AS NZS 2053 conduit installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Designed for plastic pipes and conduits
- Intumescent material expands under fire conditions
- Powder-coated finish for durability
- Sizes available from 25 mm to 100 mm
- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 0.3 kg
Key Features
- Intumescent fire stopping for plastic pipes, conduits and air-conditioning bundle penetrations
- Actively expands during fire conditions to form a tight seal preventing fire spread
- Fire tested in various wall and floor systems and service types
- Solid hinge and clasp with durable powder-coated finish
- Simple design for quick and easy retrofit installation
- Available in sizes from 25 mm up to 100 mm
Professional Installation Requirements
- Installation should be performed by a qualified professional to ensure compliance with fire safety regulations and optimal performance.
Applications
- Plastic pipes and mixed services fire protection
- Data NBN Conduits
- Electrical Conduits
- PVC pipes
- PEX pipes
- PEX-AL-PEX pipes
Standards & Compliance
- Complies with AS/NZS 1851 – Routine Service of Fire Protection Systems
Environmental Benefits
- Helps contain fire and smoke, reducing environmental damage from fire spread
- Durable and reusable design reduces waste from fire damage repairs
Warranty Information
Standard manufacturer warranty applies; please refer to Fire Factory Australia for details.
Available Now
The FyreCOLLAR Conduit Collar 32mm is available for immediate purchase, ideal for fire protection in residential, commercial, and industrial buildings.
FAQ
Q: What types of services can this conduit collar protect?
A: It is designed for plastic pipes and conduits including Data NBN Conduits, Electrical Conduits, PVC pipes, PEX pipes, and PEX-AL-PEX pipes.
Q: How does the FyreCOLLAR Conduit Collar work during a fire?
A: The intumescent material expands under fire conditions to form a tight seal that helps prevent the spread of fire through wall and floor penetrations.
