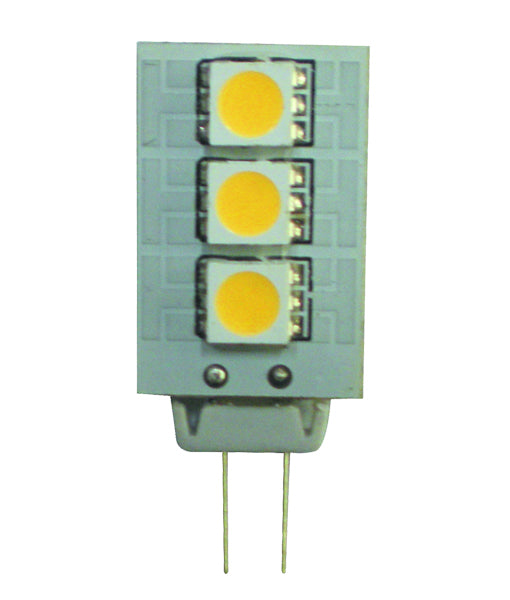

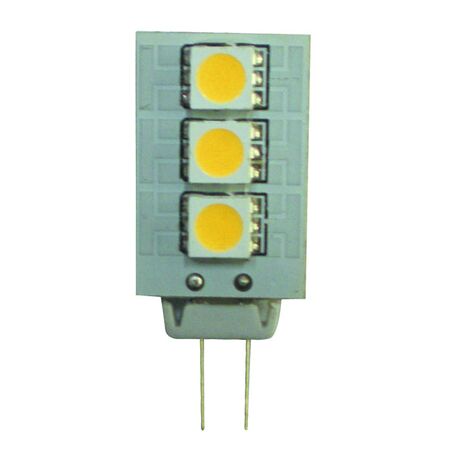

G4 Bi-Pin LED Globes | 12V DC | 0.9W Power Consumption | 3000K Warm White Light | by CLA Lighting
G4 Bi-Pin LED Globes operate on 12V DC, providing 50 lumens of warm white light at 3000K. With a wide 120° beam angle, these globes are perfect for low voltage lighting systems in residential and commercial settings, such as display cabinets and under-cabinet lighting. Designed for safety and efficiency, they must be wired in parallel and are not suitable for dimming.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: G4 Bi-Pin LED Globes | 12V DC | 0.9W Power Consumption | 3000K Warm White Light | by CLA Lighting
Brand: CLA Lighting
SKU: CLAG4L3WW
Alternatively Known As: G4 LED Globe, 12V LED Bi-Pin Bulb, G4 LED Lamp, Low Voltage LED Globe
Technical Specifications
- Input Voltage: 12V DC
- Power: 0.9W
- Color Temperature: 3000K (Warm White)
- Luminous Flux: 50 lumens
- Beam Angle: 120 degrees
- Power Factor: 0.9
- CRI: 60
- Operating Temperature: -30°C to 40°C
- Base Type: G4 bi-pin
- Wiring: Must be wired in parallel
- Maximum Distance to Light Source: 30 meters
- Dimming: Not suitable
- Dimensions (H x L x W): 33mm x 15mm x 15mm
- Weight: 0.1 kg
Key Features
- Operates on 12V DC constant voltage
- G4 base bi-pin LED globe
- 0.9W power consumption with 50 lumens output
- Warm white light at 3000K color temperature
- 120° beam angle for wide light distribution
- Power factor of 0.9
- Ambient operating temperature range from -30°C to 40°C
- Maximum wiring distance to light source is 30 meters
- Not suitable for dimming
- Must be wired in parallel
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safe wiring practices.
Applications
- Suitable for low voltage lighting systems in residential and commercial settings
- Ideal for display cabinets, under-cabinet lighting, and accent lighting
- Compatible with 12V DC battery or constant voltage LED drivers
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage
- Long lifespan reduces waste and replacement frequency
- Operates on low voltage DC, enhancing safety and efficiency
Warranty Information
Warranty terms vary for clearance items; please contact CLA Lighting sales team for specific warranty details.
Available Now
The CLA Lighting G4 Bi-Pin LED Globe is available for immediate purchase, ideal for low voltage lighting applications in residential and commercial environments.
