Trade Discount 25%

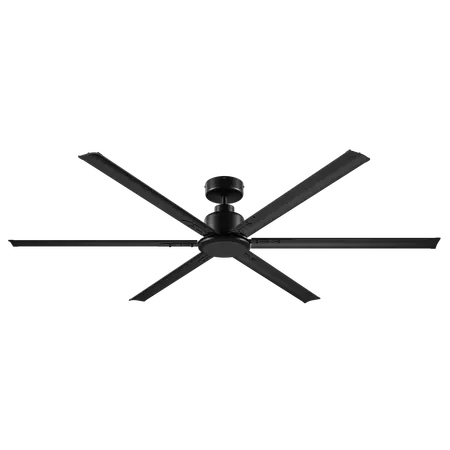

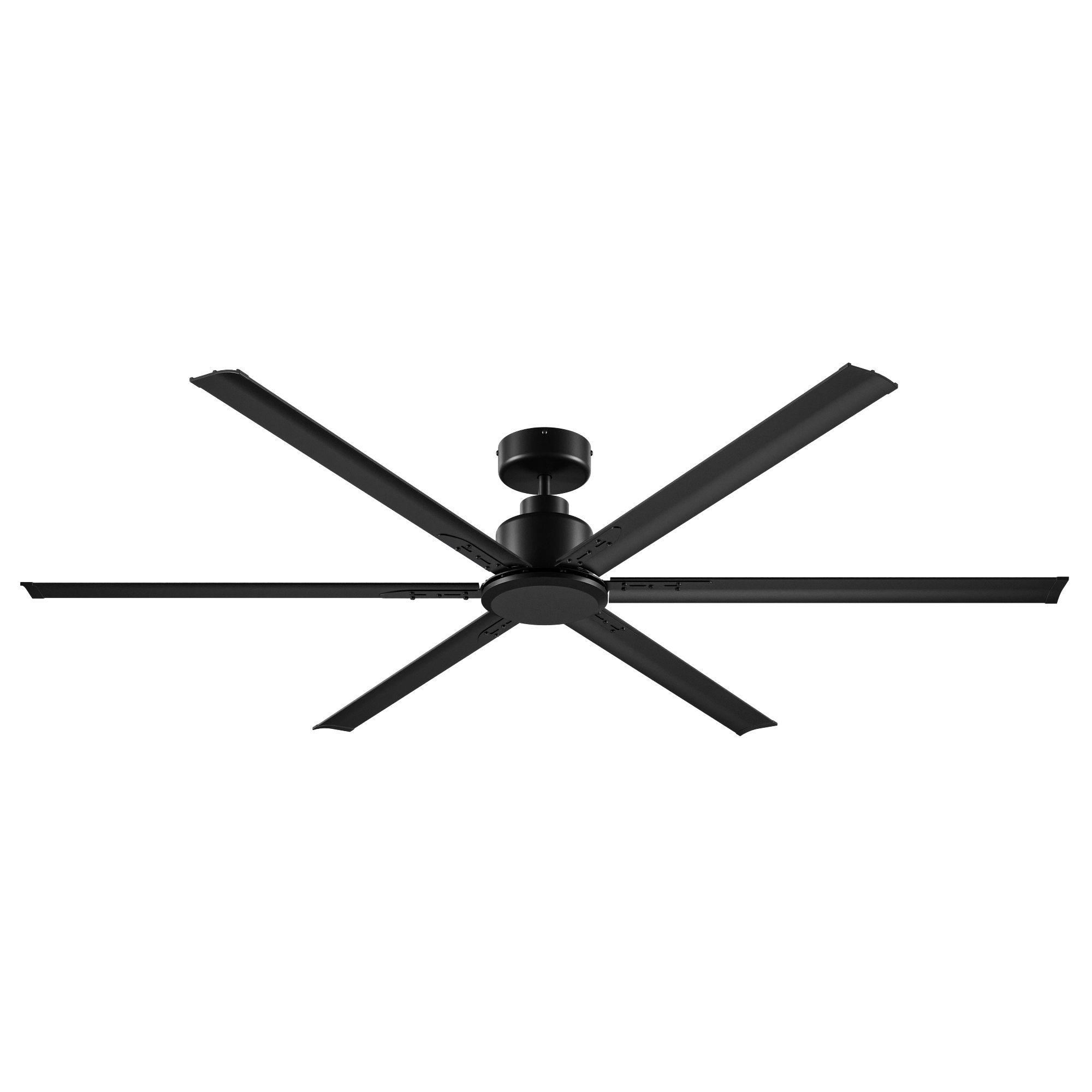

Gale 84 Inch 2130mm Smart DC Ceiling Fan 6 Blade Black Domus
Domus Gale 84 inch (2130mm) smart DC ceiling fan, 6 blade, black.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus GALE-84 Ceiling Fan, 2130mm 6-Blade DC Ceiling Fan, Large Smart Ceiling Fan
Technical Specifications
- Variant: GALE-84
- Finish Colour: Black
- Fan Diameter: 84 inches / 2130mm
- Number of Blades: 6
- Motor Type: DC
- Motor Power: 80W
- Input Voltage: 240V AC
- Blade Pitch: 12 degrees
- Maximum Airflow: 22,800m³/h
- Airflow by Speed: 6,390 to 22,800m³/h across six speeds
- Remote Control: Included, 6-speed
- Light Compatibility: Optional dimmable LED light kit
- Optional Light Kit: 24W, switchable 3000K / 4000K / 6500K
- Light Kit Output: 2470lm at 3000K, 2500lm at 4000K, 2600lm at 6500K
- Light Kit Beam Angle: 120 degrees
- Light Kit Colour Rendering: CRI ≥80
- Light Kit Rated Life: 10,000 hours
- IP Rating: IPX0
- Winter/Summer Function: Yes
- Tropical Rating: Yes
- Construction: Metal
- Extension Rods: Available separately
- Optional Sloped-Ceiling Kit: 38-degree ceiling kit required for raked or sloped ceilings
- Dimensions (H x L x W): 347mm x 2130mm x 2130mm
- Weight: 9 kg
Key Features
- Large 84-inch / 2130mm diameter for spacious residential and commercial areas
- Six-blade aerodynamic design
- Energy-efficient 80W DC motor
- Six-speed remote control included
- Quiet operation with reversible Summer/Winter airflow
- Tropical-rated construction
- Optional dimmable tri-colour LED light kit
- Compatible with separately available extension rods
- Manufacturer data sheet specifies 22,800m³/h maximum airflow
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with the supplied installation instructions and applicable electrical installation requirements. Do not install on a raked or sloped ceiling without the optional 38-degree ceiling kit.
Applications
- Large residential living areas
- Open-plan interiors
- Commercial and hospitality spaces
- Large bedrooms and entertainment areas
- Covered outdoor areas where suitable for the IP rating
Standards & Compliance
- AS/NZS 60335.2.80 – applicable safety requirements for household and similar electric fans
- AS/NZS 3000 – electrical installation and wiring requirements applicable to fixed ceiling-fan installation
Environmental Benefits
- DC motor technology can reduce operating energy use compared with comparable AC fan motors
- Optional LED light kit provides efficient illumination with switchable colour temperatures
- Metal construction supports material recyclability at end of service life
- Six-year total fan warranty may help extend service life and reduce replacement waste
Warranty Information
Fan: 3-year in-home warranty plus 3-year parts replacement warranty. Receiver and remote: 1-year in-home warranty plus 1-year parts replacement warranty. Warranty eligibility requires installation by a licensed electrician and compliance with Domus installation guidelines.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
Ceiling Fan Sizing Calculator
This calculator uses typical airflow recommendations. Users must verify results according to AS/NZS 3000:2018 and specific manufacturer specs.
