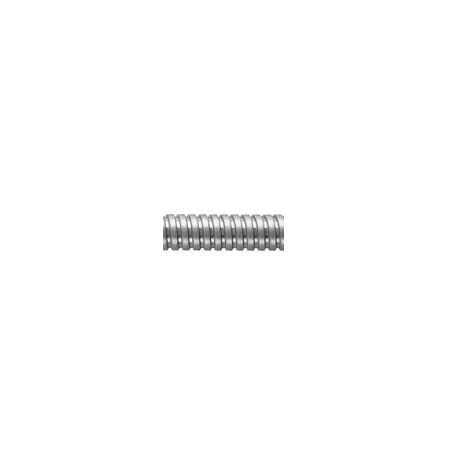

Galvanised Flexible Conduit 25mm | Flame Retardant | UV Protection | IP40-65 by United Manufacturers Australia
Galvanised flexible conduit with a 25mm diameter and flame retardant properties—ideal for electrical wiring protection in dry environments. Built for industrial and commercial use, it offers UV protection and a temperature range of -50°C to +300°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Galvanised Flexible Conduit 25mm | Flame Retardant | UV Protection | IP40-65 by United Manufacturers Australia
Brand: United Manufacturers Australia
SKU: UMGSF-25-25
Alternatively Known As: Galvanised Steel Flexible Conduit, Galvanized Flexible Conduit, Steel Flex Conduit, Galvanised Electrical Conduit
Technical Specifications
- Nominal size ISO: 25.0 mm
- Inner diameter: 21.4 mm
- Outer diameter: 26.0 mm
- Minimum bend radius: 70.0 mm
- Length per coil: 25 m
- Approvals: IEC EN61368, RoHS
- IP rating: IP40-65 depending on termination
- Temperature range: -50°C to +300°C
- No protection against moisture (dry environments only)
- Dimensions (H x L x W): 25mm x 25000mm x 25mm
- Weight: 2.5 kg
Key Features
- Flame retardant
- High mechanical strength
- UV protection
- IP40-65 rating depending on termination
- Temperature range from -50°C to +300°C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards.
Applications
- Electrical wiring protection in dry environments
- Industrial and commercial electrical installations
- Areas requiring flame retardant and UV protected conduit
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable galvanised steel construction reduces need for frequent replacement
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Warranty details available upon request from United Manufacturers Australia.
Available Now
The Gal Flex galvanised steel flexible conduit 25mm x 25m is available for immediate purchase, ideal for electrical wiring protection in dry industrial and commercial environments.
