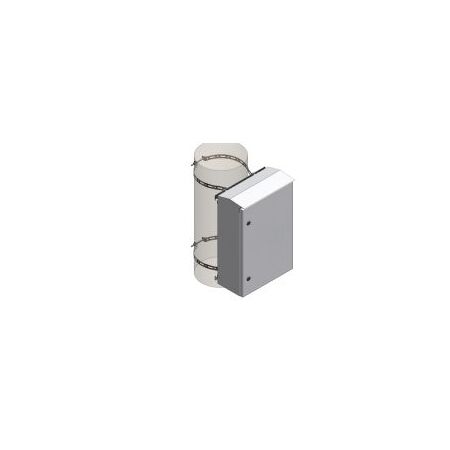

Galvanised Pole Clamp 100-300mm to Suit 200x200mm MSB Redback

BRAND: CABAC
SKU: BT2-MSG200
$87.60 List price: $116.80
+ −
30 Days Return Electricians Unlock Trade Access
Redback galvanised zinc pole clamp features adjustment for 100-300mm pole diameters and 150kg rating. Ideal for 200x200x150mm MSB enclosures.

Alternatively Known As: BT2-MSG200, RBBT2MSG200, Galvanised Zinc Pole Clamp, MSB Enclosure Pole Mounting Clamp

Technical Specifications
  • Model: BT2-MSG200 / RBBT2MSG200
  • Material: Galvanised zinc-coated steel
  • Compatible Enclosure: Redback Racks MSB.202015
  • Compatible Cabinet Width: 200 mm
  • Adjustable Pole Diameter: 100–300 mm
  • Rated Load: Up to 150 kg
  • Packaging Unit: 1 each
  • Dimensions (H x L x W): 300mm x 200mm x 100mm
  • Weight: 2 kg
Key Features
  • Designed for the back width of Redback Racks MSB.202015 enclosures
  • Adjustable mounting arrangement suits round poles from 100 to 300 mm diameter
  • Galvanised zinc finish provides corrosion resistance for outdoor installations
  • Supports enclosure loads up to 150 kg when correctly installed
  • Suitable for telecommunications, electrical, CCTV and outdoor equipment enclosures
Professional Installation Requirements
  • Installation should be performed by suitably qualified personnel. The installer must verify pole condition, fastener torque, cabinet loading and structural suitability for the intended site. Electrical equipment installed within the enclosure must comply with applicable wiring rules.
Applications
  • Pole mounting Redback Racks MSB.202015 enclosures
  • Telecommunications and data network installations
  • Outdoor electrical distribution and control enclosures
  • CCTV, security and communications equipment cabinets
  • Commercial and industrial mast-mounted equipment
Environmental Benefits
  • Galvanised steel provides extended service life and can reduce replacement frequency in outdoor installations
  • Steel components are recyclable at end of service life
  • Durable corrosion-resistant construction can reduce material waste associated with premature failure
Warranty Information

PSS Distributors publishes a standard 2-year return-to-base warranty for PSS products, subject to proof of purchase, correct installation, normal use and the applicable warranty terms. Product-specific manufacturer warranty terms should be confirmed at purchase.

Available Now

Available through Redback Racks, PSS Distributors and authorised Australian electrical, security and communications distributors.
