Galvanised Pole Clamp 100-300mm to Suit 300x300mm MSB Redback

BRAND: CABAC
SKU: BT2-MSG300
$93.80 List price: $125.10
+ −
30 Days Return Electricians Unlock Trade Access

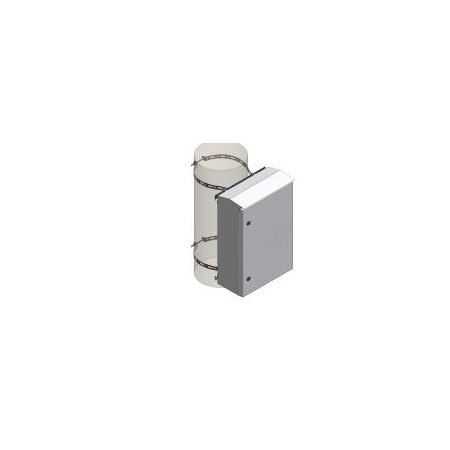

Redback galvanised zinc pole clamp features adjustment for 100-300mm pole diameters and 150kg rating. Ideal for 300x300 and 400x300mm MSB enclosures.

Alternatively Known As: Galvanised Pole Mounting Clamp, Zinc Pole Clamp Kit, MSB Cabinet Pole Bracket

Technical Specifications
  • Model: BT2-MSG300
  • Material: Galvanised/zinc-coated steel
  • Pole Diameter Range: 100–300mm
  • Maximum Supported Load: 150kg
  • Compatible Enclosures: MSB.303020 and MSB.403020/403025
  • Cabinet Width: 300mm
  • Kit Contents: 2 struts, 4 adjustable clamps, threaded bolts, washers, nuts and square recessed bolts
  • Installation Type: Bolt-up pole mounting kit
  • Approximate Kit Dimensions: 300 x 300 x 100mm, estimated from the 300mm cabinet-width struts and assembled clamp configuration
  • Approximate Weight: 3.0kg, estimated from comparable galvanised steel pole-mounting hardware
  • Dimensions (H x L x W): 300mm x 300mm x 100mm
  • Weight: 3 kg
Key Features
  • Adjustable to suit round poles from 100mm to 300mm diameter
  • Designed for Redback Racks MSB enclosures with a 300mm cabinet width
  • Suitable for 300 x 300mm and 400 x 300mm MSB cabinets
  • Supports cabinet loads up to 150kg when correctly installed
  • Galvanised steel construction provides corrosion resistance for outdoor applications
  • Complete mounting kit supplied with struts, clamps and installation hardware
  • Suitable for telecom power, CCTV, electrical and industrial enclosure installations
Professional Installation Requirements
  • The clamp is a passive mounting component, but installation supporting an electrical enclosure should be completed by a suitably qualified installer. Ensure the enclosure and associated electrical installation comply with AS/NZS 3000 and the manufacturer's instructions. Verify the pole, fasteners and mounting surface can safely support the stated load.
Applications
  • Pole mounting Redback Racks MSB.303020 enclosures
  • Pole mounting MSB.403020 and MSB.403025 enclosures
  • Outdoor telecom power cabinets
  • CCTV and security equipment enclosures
  • Commercial and industrial electrical enclosure installations
Environmental Benefits
  • Galvanised steel provides corrosion resistance that can extend service life and reduce replacement waste
  • Steel components are recyclable at end of service life
  • Durable mechanical mounting can support longer service intervals for outdoor enclosures
Warranty Information

PSS Distributors publishes a standard 2-year return-to-base warranty for PSS products, subject to proof of purchase, correct installation and its warranty terms.

Available Now

Available through Redback Racks, PSS Distributors and authorised Australian electrical, security and data-cabling distributors.
