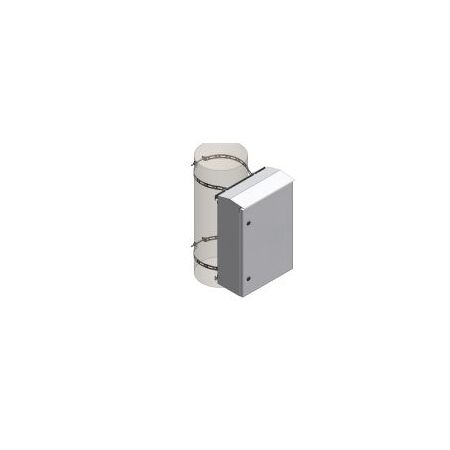

Galvanised Pole Clamp 100-300mm to Suit 600x400mm MSB Redback
Redback galvanised zinc pole clamp features adjustment for 100-300mm pole diameters and 150kg rating. Ideal for 600x400x200mm MSB enclosures.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Redback Racks BT2-MSG400 Pole Clamp, Galvanised/Zinc MSB Pole Mount, MSB.604020 Pole Clamp
Technical Specifications
- Product Type: Pole-mounting clamp kit
- Material: Galvanised/zinc-coated steel
- Compatible Enclosure: Redback Racks MSB.604020, 600 x 400 x 200 mm
- Pole Diameter Range: 100–300 mm
- Rated Load Capacity: Up to 150 kg
- Cabinet Width: 400 mm
- Configuration: Adjustable clamp assembly with mounting hardware
- Dimensions (H x L x W): 100mm x 400mm x 300mm
- Weight: 3.5 kg
Key Features
- Designed for Redback Racks MSB.604020 enclosures
- Adjustable to suit round poles from 100 to 300 mm diameter
- Rated to support cabinet loads up to 150 kg
- Galvanised/zinc-coated steel construction for outdoor corrosion resistance
- Custom designed to suit the back width of MSB enclosures
- Suitable for telecommunications, security, power and outdoor equipment cabinets
Professional Installation Requirements
- Mounting should be completed by a suitably qualified installer who verifies pole condition, fixing security, cabinet loading and suitability for the installation environment. Any electrical equipment installed in the enclosure must be wired by a licensed electrical worker in accordance with applicable Australian requirements.
Applications
- Pole mounting of 600 x 400 mm MSB electrical enclosures
- Telecommunications and data communications installations
- CCTV, security and access-control equipment cabinets
- Outdoor power supply and control equipment installations
- Commercial and industrial pole-mounted enclosure systems
Environmental Benefits
- Galvanised steel provides extended service life and can reduce replacement-related material waste
- Steel components are recyclable at end of service life
- Durable corrosion-resistant construction is suited to outdoor installations and supports longer product utilisation
Warranty Information
PSS Distributors states a standard 2-year return-to-base warranty for PSS products, subject to proof of purchase, correct installation, normal use and the applicable warranty terms. ([pssdistributors.com.au](https://www.pssdistributors.com.au/ups-warranty/?utm_source=openai))
Available Now
Available through Redback Racks, PSS Distributors and authorised Australian electrical, security and communications distributors. ([cabac.com.au](https://www.cabac.com.au/p/racks-and-cabinets/accessories/bt2-msg300?utm_source=openai))
