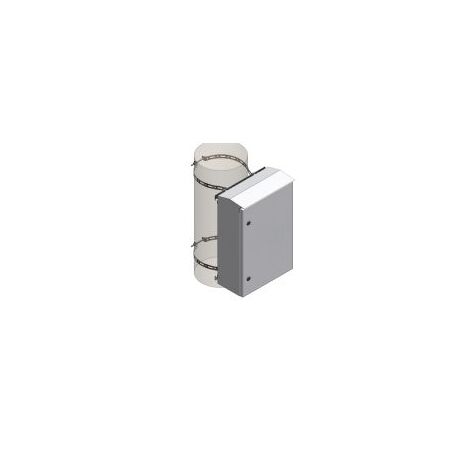

Galvanised Pole Clamp 100-300mm to Suit 800x600mm MSB Redback

BRAND: CABAC
SKU: BT2-MSG600
$112.60 List price: $150.20
+ −
30 Days Return Electricians Unlock Trade Access
Redback galvanised zinc pole clamp features adjustment for 100-300mm pole diameters and 150kg rating. Ideal for 800x600x200mm MSB enclosures.

Alternatively Known As: BT2-MSG600, Galvanised Zinc Pole Clamp, MSB.806020 Pole Mounting Clamp, Outdoor Enclosure Pole Clamp

Technical Specifications
  • Model: BT2-MSG600
  • Compatible Enclosure: Redback Racks MSB.806020, 800 x 600 x 200 mm
  • Material: Galvanised/zinc-coated steel
  • Adjustable Pole Diameter: 100-300 mm
  • Cabinet Width: 600 mm
  • Load Rating: Up to 150 kg
  • Application: Round-pole mounting
  • Dimensions: Approx. 100 x 600 x 300 mm; estimated from the compatible 600 mm cabinet width and maximum pole diameter
  • Dimensions (H x L x W): 100mm x 600mm x 300mm
  • Weight: 4 kg
Key Features
  • Adjustable to suit round poles from 100 to 300 mm in diameter
  • Designed for Redback Racks MSB.806020 mild steel enclosures
  • Galvanised/zinc-coated construction for improved outdoor corrosion resistance
  • Supports cabinet loads up to 150 kg
  • Suitable for electrical, communications, security and utility enclosure installations
  • Provides pole mounting without requiring a wall or floor-mounted support
Professional Installation Requirements
  • Installation should be carried out by suitably qualified personnel. Confirm the pole, fixings and supporting structure are suitable for the enclosure mass, equipment load, wind exposure and the 150 kg clamp rating. Electrical equipment installed in the enclosure must be connected in accordance with applicable wiring rules and local requirements.
Applications
  • Pole mounting Redback Racks MSB.806020 outdoor electrical enclosures
  • Telecommunications and data communications cabinets
  • CCTV, security and access-control equipment enclosures
  • Utility, industrial and municipal outdoor equipment installations
Environmental Benefits
  • Galvanised steel provides corrosion resistance that can extend service life and reduce replacement waste
  • Steel components are recyclable at end of service life
  • Supports durable outdoor enclosure installations, reducing the need for frequent component replacement
Warranty Information

Covered by the standard PSS Distributors two-year return-to-base warranty for faulty materials or workmanship, subject to the supplier's warranty terms and proof of purchase.

Available Now

Available through Redback Racks, PSS Distributors and authorised Australian distributors, subject to current stock availability.
