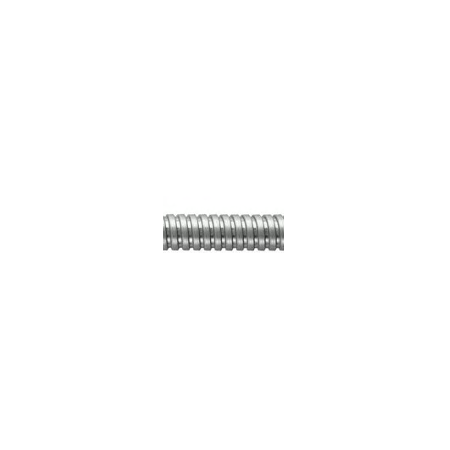

Galvanised Steel Flexible Conduit 16mm | Flame Retardant & UV Protected | IP40-65 by United Manufacturers Australia
Galvanised steel flexible conduit with 16mm diameter and flame retardant properties—ideal for electrical wiring protection in dry environments. Built for industrial and commercial installations, it offers UV protection and a temperature range of -50°C to +300°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Galvanised Steel Flexible Conduit 16mm | Flame Retardant & UV Protected | IP40-65 by United Manufacturers Australia
Brand: United Manufacturers Australia
SKU: UMGSF-16-10
Alternatively Known As: Galvanised Steel Flexible Conduit, Galvanized Flexible Conduit, Steel Flex Conduit 16mm
Technical Specifications
- Nominal size ISO: 16.0mm
- Inner diameter: 13.0mm
- Outer diameter: 17.1mm
- Minimum bend radius: 70.0mm
- Length per coil: 10m
- Approvals: IEC EN61368, RoHS
- IP rating: IP40-65 depending on termination
- Temperature range: -50°C to +300°C
- Dimensions (H x L x W): 171mm x 10000mm x 171mm
- Weight: 1.2 kg
Key Features
- Flame retardant
- High mechanical strength
- UV protection
- IP40-65 depending on termination
- Temperature range from -50°C to +300°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper conduit termination.
Applications
- Electrical wiring protection in dry environments
- Industrial and commercial electrical installations
- Conduit for wiring in UV exposed areas
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable galvanised steel construction reduces need for frequent replacement
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to United Manufacturers Australia for details.
Available Now
The Gal Flex 16mm x 10m galvanised steel flexible conduit is available for immediate purchase, ideal for electrical wiring protection in dry and UV exposed environments.
