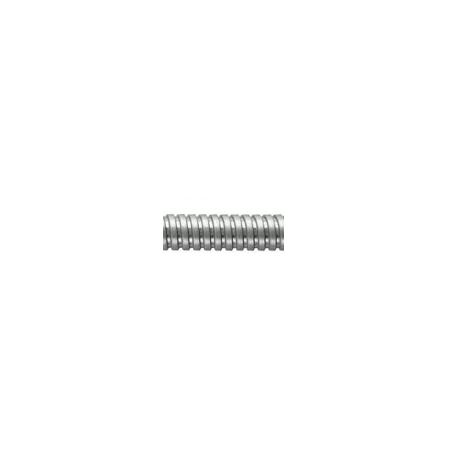

Galvanised Steel Flexible Conduit 20mm | Flame Retardant | UV Protected | IP40-65 by United Manufacturers Australia
Galvanised steel flexible conduit with 20mm nominal size and flame retardant properties—ideal for electrical wiring protection in dry environments. Built for industrial and commercial installations, with UV protection and high mechanical strength.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UMGSF-20-10
Brand: United Manufacturers Australia
SKU: UMGSF-20-10
Alternatively Known As: Galvanised Steel Flexible Conduit, Galvanised Flex Conduit, Steel Flexible Electrical Conduit
Technical Specifications
- Nominal size: 20.0 mm
- Inner diameter: 16.9 mm
- Outer diameter: 21.5 mm
- Minimum bend radius: 70 mm
- Length: 10 m coil
- Temperature range: -50°C to +300°C
- IP rating: IP40-65 depending on termination
- Approvals: IEC EN61368, RoHS
- Dimensions (H x L x W): 21.5mm x 10000mm x 21.5mm
- Weight: 1.2 kg
Key Features
- Flame retardant
- High mechanical strength
- UV protection
- IP40-65 rating depending on termination
- Suitable for dry environments only
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper termination for IP rating.
Applications
- Electrical wiring protection in dry environments
- Industrial and commercial electrical installations
- Areas requiring flame retardant and UV protected conduit
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable galvanised steel construction extends product life and reduces replacement frequency
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to United Manufacturers Australia for details.
Available Now
The Gal Flex galvanised steel flexible conduit 20mm x 10m by United Manufacturers Australia is available now for immediate purchase. Ideal for electrical wiring protection in dry industrial and commercial environments.
