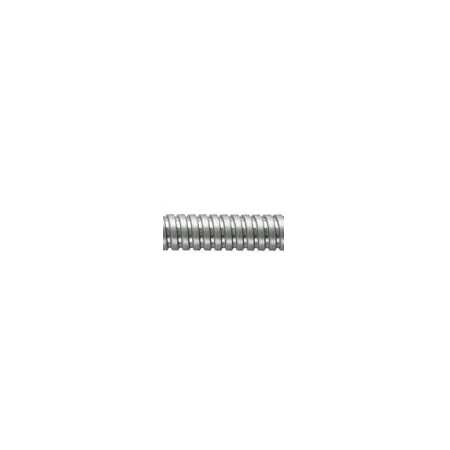

Galvanised Steel Flexible Conduit 25mm | Flame Retardant & UV Protected | IP40-65 Rated by United Manufacturers Australia
Galvanised steel flexible conduit with a 25mm nominal size and a temperature range of -50°C to +300°C—ideal for electrical wiring protection in dry environments. Built for industrial and commercial use, featuring flame retardant and UV protection for enhanced durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Galvanised Steel Flexible Conduit 25mm | Flame Retardant & UV Protected | IP40-65 Rated by United Manufacturers Australia
Brand: United Manufacturers Australia
SKU: UMGSF-25-10
Alternatively Known As: Galvanised Steel Flexible Conduit, Galvanized Flexible Conduit, Steel Flex Conduit 25mm
Technical Specifications
- Nominal size: 25.0mm
- Inner diameter: 21.4mm
- Outer diameter: 26.0mm
- Minimum bend radius: 70.0mm
- Length: 10m coil
- Approvals: IEC EN61368, RoHS
- IP rating: IP40-65 depending on termination
- Temperature range: -50°C to +300°C
- No protection against moisture (dry environments only)
- UV protection
- Dimensions (H x L x W): 26mm x 10000mm x 26mm
- Weight: 1.5 kg
Key Features
- Flame retardant
- High mechanical strength
- UV protection
- IP40-65 depending on termination
- Temperature range from -50°C to +300°C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Electrical wiring protection in dry environments
- Industrial and commercial electrical installations
- Areas requiring flame retardant and UV protected conduit
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable galvanised steel construction extends product life reducing waste
- RoHS compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to United Manufacturers Australia for details.
Available Now
The Gal Flex 25mm x 10m galvanised steel flexible conduit is available now for immediate purchase. Ideal for electrical wiring protection in dry industrial and commercial environments.
