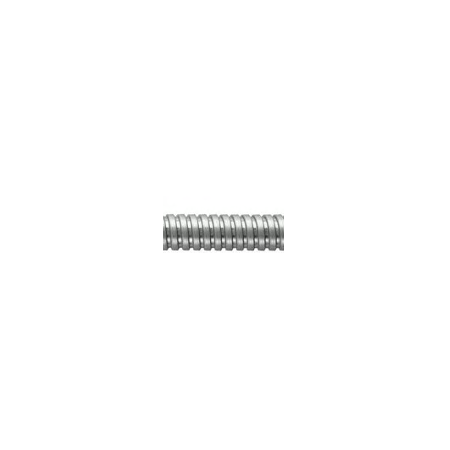

Galvanised Steel Flexible Conduit 32mm | Flame Retardant & UV Protected | IP40-65 by United Manufacturers Australia
Galvanised steel flexible conduit with a 32mm nominal size and a temperature range of -50°C to +300°C—ideal for electrical wiring protection in dry environments. Built for industrial and commercial use, with flame retardant and UV protection features.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Galvanised Steel Flexible Conduit 32mm | Flame Retardant & UV Protected | IP40-65 by United Manufacturers Australia
Brand: United Manufacturers Australia
SKU: UMGSF-32-25
Alternatively Known As: Galvanised Flexible Conduit, Steel Flexible Conduit, Galvanised Steel Conduit, Flexible Electrical Conduit
Technical Specifications
- Nominal size ISO: 32.0mm
- Inner diameter: 28.1mm
- Outer diameter: 34.0mm
- Minimum bend radius: 100.0mm
- Length per coil: 25m
- Approvals: IEC EN61368, RoHS
- IP rating: IP40-65 depending on termination
- No protection against moisture (dry environments only)
- Temperature range: -50°C to +300°C
- Dimensions (H x L x W): 34mm x 25000mm x 34mm
- Weight: 3.5 kg
Key Features
- Flame retardant
- High mechanical strength
- UV protection
- IP40-65 depending on termination
- Temperature range from -50°C to +300°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Electrical wiring protection in dry environments
- Industrial and commercial electrical installations
- Areas requiring flame retardant and UV protected conduit
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable galvanised steel construction reduces need for frequent replacement
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Warranty details available upon request from United Manufacturers Australia.
Available Now
The Gal Flex galvanised steel flexible conduit 32mm x 25m is available for immediate purchase, ideal for electrical wiring protection in dry industrial and commercial environments.
