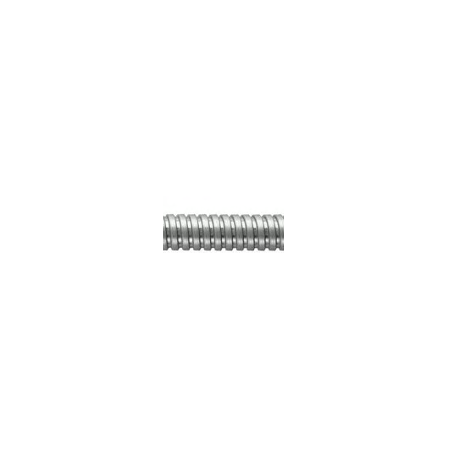

Galvanised Steel Flexible Conduit 40mm | Flame Retardant & UV Protected | 10m Length by United Manufacturers Australia
Galvanised steel flexible conduit with a 40mm diameter and 10m length—ideal for electrical wiring protection in dry environments. Built for industrial and commercial use, it features flame retardant properties and UV protection for enhanced durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Galvanised Steel Flexible Conduit 40mm | Flame Retardant & UV Protected | 10m Length by United Manufacturers Australia
Brand: United Manufacturers Australia
SKU: UMGSF-40-10
Alternatively Known As: Galvanised Steel Flexible Conduit, Galvanized Flexible Conduit, Steel Flex Conduit, Galvanised Electrical Conduit
Technical Specifications
- Nominal size: 40.0 mm
- Inner diameter: 37.7 mm
- Outer diameter: 44.5 mm
- Minimum bend radius: 120 mm
- Length per coil: 10 m
- Approvals: IEC EN61368, RoHS
- IP rating: IP40-65 depending on termination
- Temperature range: -50°C to +300°C
- Dimensions (H x L x W): 40mm x 10000mm x 40mm
- Weight: 3.5 kg
Key Features
- Flame retardant
- High mechanical strength
- UV protection
- Temperature range from -50°C to +300°C
- IP40-65 rating depending on termination
- No protection against moisture, suitable for dry environments
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper termination for IP rating.
Applications
- Electrical wiring protection in dry environments
- Industrial and commercial electrical installations
- Areas requiring flame retardant and UV protected conduit
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable galvanised steel construction reduces need for frequent replacement
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to United Manufacturers Australia for specific warranty details.
Available Now
The Gal Flex galvanised steel flexible conduit 40mm x 10m by United Manufacturers Australia is available now for immediate purchase. Ideal for electrical wiring protection in dry industrial and commercial environments.
