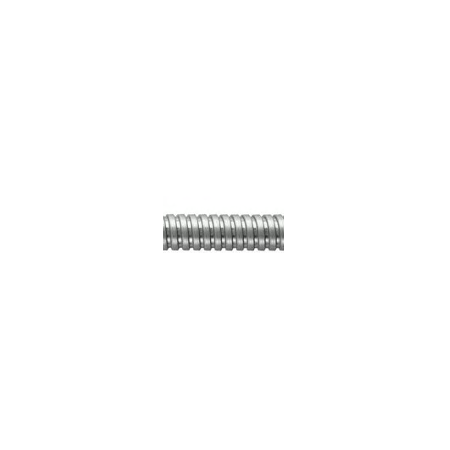

Galvanised Steel Flexible Conduit 50mm | Flame Retardant | UV Protection | IP40-65 by United Manufacturers Australia
Galvanised steel flexible conduit with a 50mm diameter and a temperature range of -50°C to +300°C—ideal for electrical wiring protection in dry environments. Built for industrial and commercial use, it features flame retardant properties and UV protection for enhanced durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Galvanised Steel Flexible Conduit 50mm | Flame Retardant | UV Protection | IP40-65 by United Manufacturers Australia
Brand: United Manufacturers Australia
SKU: UMGSF-50-10
Alternatively Known As: Galvanised Steel Flexible Conduit, Galvanized Flexible Conduit, Steel Flex Conduit 50mm, High Temperature Flexible Conduit
Technical Specifications
- Nominal size ISO: 50.0mm
- Inner diameter: 48.4mm
- Outer diameter: 55.0mm
- Minimum bend radius: 170.0mm
- Length per coil: 10m
- Approvals: IEC EN61368, RoHS
- IP rating: IP40-65 depending on termination
- No protection against moisture - suitable for dry environments
- Temperature range: -50°C to +300°C
- Dimensions (H x L x W): 50mm x 10000mm x 50mm
- Weight: 3.5 kg
Key Features
- Flame retardant
- High mechanical strength
- UV protection
- IP40-65 rating depending on termination
- Temperature range from -50°C to +300°C
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Electrical wiring protection in dry environments
- Industrial and commercial electrical installations
- Areas requiring flame retardant and UV protected conduit
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable galvanised steel construction reduces need for frequent replacements
- Flame retardant properties enhance safety and reduce fire risk
Warranty Information
Warranty details available upon request from United Manufacturers Australia.
Available Now
The Gal Flex galvanised steel flexible conduit 50mm x 10m by United Manufacturers Australia is available now for immediate purchase. Ideal for electrical wiring protection in dry industrial and commercial environments.
