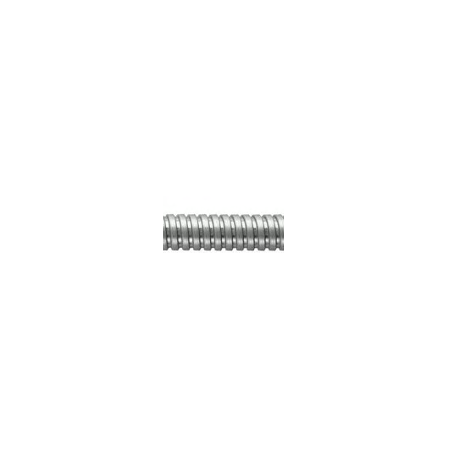

Galvanised Steel Flexible Conduit 63mm | -50°C to +300°C | Flame Retardant & UV Protection | IP40-65 by United Manufacturers Australia
Galvanised steel flexible conduit with a temperature range of -50°C to +300°C and flame retardant properties—ideal for electrical wiring protection in dry environments. Built for industrial and commercial use, it offers UV protection and high mechanical strength.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: UMGSF-63-10
Brand: United Manufacturers Australia
SKU: UMGSF-63-10
Alternatively Known As: Galvanised Steel Flexible Conduit, Galvanized Flexible Conduit, Steel Flex Conduit, Galvanised Electrical Conduit
Technical Specifications
- Nominal size: 63.0 mm
- Inner diameter: 57.5 mm
- Outer diameter: 57.5 mm
- Minimum bend radius: 200 mm
- Length: 10 m coil
- Approvals: IEC EN61368, RoHS
- IP rating: IP40-65 depending on termination
- No protection against moisture (dry environments only)
- Temperature range: -50°C to +300°C
- Dimensions (H x L x W): 63mm x 10000mm x 63mm
- Weight: 5 kg
Key Features
- Flame retardant
- High mechanical strength
- UV protection
- Temperature range from -50°C to +300°C
- IP40-65 protection depending on termination
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper conduit termination.
Applications
- Electrical wiring protection in dry environments
- Industrial and commercial conduit installations
- UV exposed outdoor electrical conduit applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable galvanised steel construction reduces need for frequent replacements
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Warranty details available upon request from United Manufacturers Australia.
Available Now
The Gal Flex galvanised steel flexible conduit 63mm x 10m is available for immediate purchase, ideal for electrical wiring protection in dry and UV-exposed environments.
