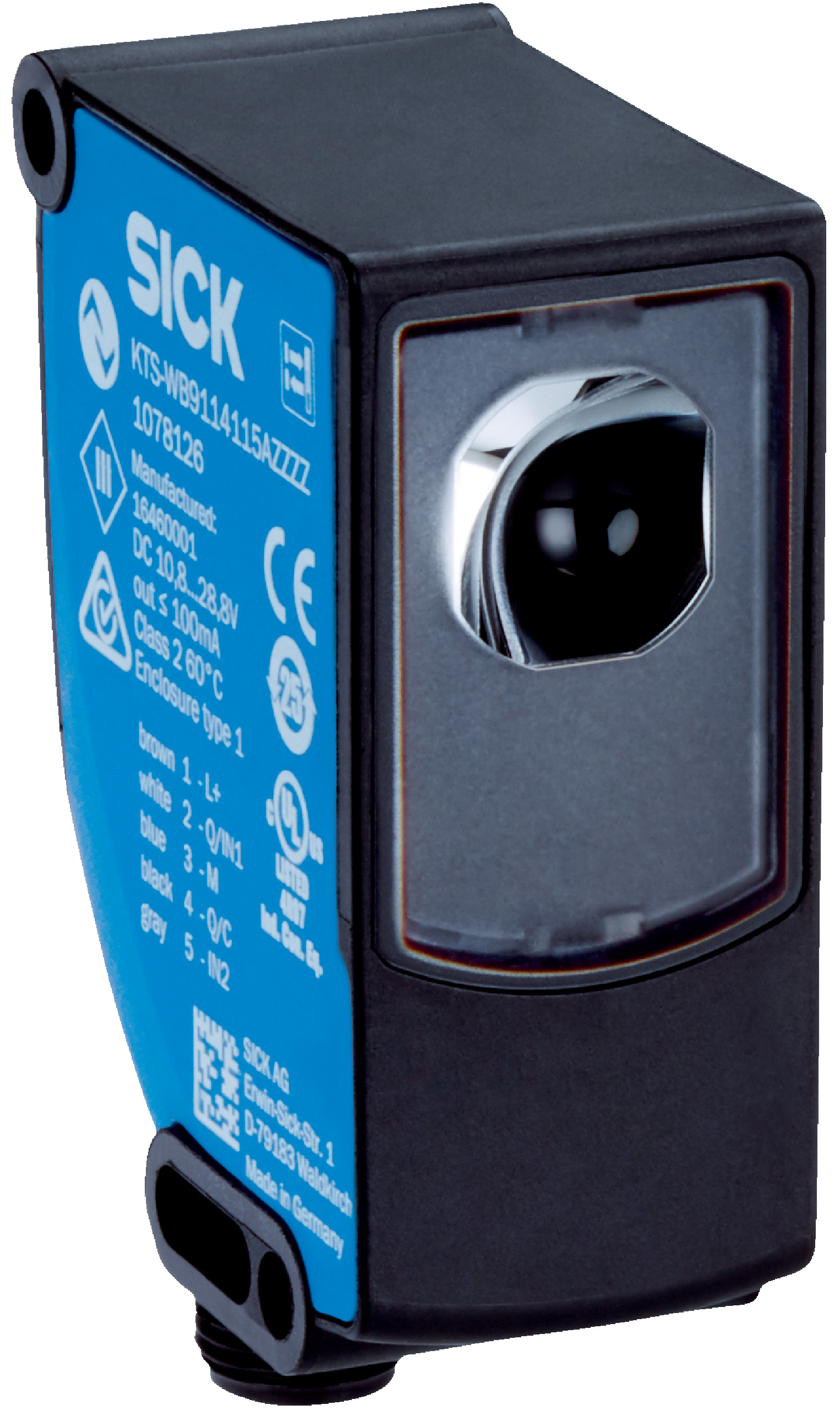

Gap Detection Sensor KTS-MBD724115AZZZZ | IP67 Rated | White LED Light Source | 16.5 kHz Switching Frequency | by SICK
The KTS-MBD724115AZZZZ Gap Detection Sensor is designed for precise gap detection in industrial automation. With a sensing distance of up to 27.5 mm and a robust IP67 enclosure, it ensures reliable performance in challenging environments. Featuring a white LED light source and a fast switching frequency of 16.5 kHz, this sensor is perfect for applications requiring accurate and efficient sensing solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing distance: ≤ 27.5 mm with ±3 mm tolerance
- Light source: White LED, wavelength 400 nm to 750 nm
- Light spot size: 0.8 mm x 8 mm, longitudinal narrow direction
- Switching frequency: 16.5 kHz
- Response time: 60 µs
- Jitter: 30 µs
- Supply voltage: 10.8 V DC to 28.8 V DC
- Current consumption: < 100 mA
- Switching output: Push-pull PNP/NPN, max 100 mA
- Protection: Reverse polarity, short-circuit, interference pulse suppression
- Connection: Plug, M12, 5-pin
- MTTFD: 291 years
- Enclosure rating: IP67
- Operating temperature: -20 °C to +60 °C
- Storage temperature: -25 °C to +75 °C
- Shock load: 30 g/11 ms per IEC 60068-2-27
- Dimensions (H x L x W): 62mm x 48mm x 26mm
- Weight: 0.1 kg
Key Features
- Gap detection capability
- Standard device type with middle housing design
- White LED light source with wavelength range 400 nm to 750 nm
- Light emission from the long side of housing with a narrow longitudinal light spot
- Teach-in dynamic and auto mode for easy setup
- Light/dark switching output function with adjustable delay time
- IO-Link communication interface with digital inputs and outputs
- Push-pull PNP/NPN switching output with max 100 mA output current
- Protection class III with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Operating temperature range from -20 °C to +60 °C
- Shock load resistance according to IEC 60068-2-27 (30 g/11 ms)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and configuration, including IO-Link setup.
Applications
- Industrial automation for gap detection
- Standard device applications requiring precise sensing
- Environments requiring robust and reliable optical sensors
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product life
- Complies with China-RoHS and other environmental safety standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK KTS-MBD724115AZZZZ Gap Detection Sensor is available for immediate purchase, ideal for industrial automation and precise gap detection applications.
