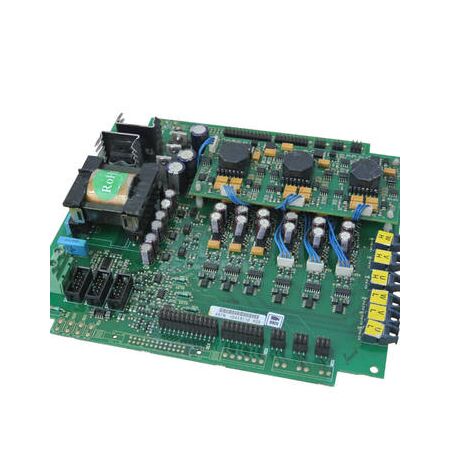

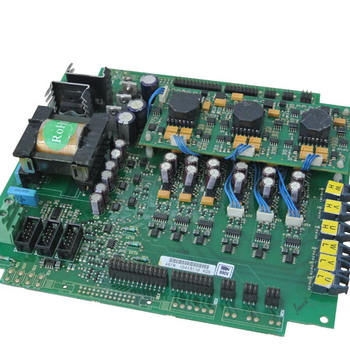

Product Name/Title: Allen-Bradley SKH1ASICBDE1030 Gate Drive Board for PowerFlex 700H/S
Brand: Allen-Bradley
SKU: SKH1ASICBDE1030
Alternatively Known As: PowerFlex 700H Gate Drive PCB, PowerFlex 700S Control Board, Allen-Bradley PCB Board
Technical Specifications
- Type: Gate Drive Board
- Compatibility: PowerFlex 700H and 700S drives
- Mounting Style: Open style, mountable PCB
- Function: Controls power transistor gates in drive systems
- Dimensions (H x L x W): 100mm x 200mm x 150mm
- Weight: 1.5 kg
Key Features
- Gate drive board designed for PowerFlex 700H/S drives
- Open style mountable PCB board
- Essential for controlling power transistors in drive systems
Professional Installation Requirements
- Installation by a qualified electrical technician or engineer is required to ensure proper integration with PowerFlex drives and compliance with electrical safety standards.
Applications
- Industrial motor control systems
- PowerFlex 700H and 700S drives
- Factory automation and process control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports efficient motor control reducing energy consumption
- Enhances drive system reliability, reducing waste from failures
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley SKH1ASICBDE1030 Gate Drive Board is available for immediate purchase, ideal for industrial motor control and automation system maintenance or upgrades.
