GEFU Thread Rolling Screw | Taptite 2000 Flat Head | Hexalobular Drive | M3x5 | @Pack of 50 | by Wurth

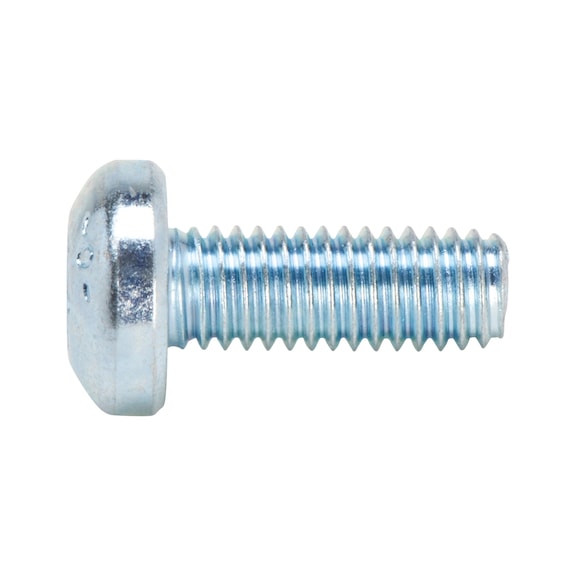

The GEFU Thread Rolling Screw with Taptite 2000 thread is designed for efficient mechanical fastening, featuring a flat head and hexalobular TX10 drive. Ideal for applications where thread cutting is to be avoided, this screw forms nut threads in various materials without interrupting their structure. Made from case-hardened zinc-plated steel, it ensures high clamping force and load-bearing capacity, making it perfect for metal fabrication and assembly tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GEFU Thread Rolling Screw | Taptite 2000 Flat Head | Hexalobular Drive | M3x5 | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 20971305
Alternatively Known As: Taptite 2000 Screw, Thread Rolling Screw M3x5, Self-Tapping Screw TX10, Hexalobular Drive Screw

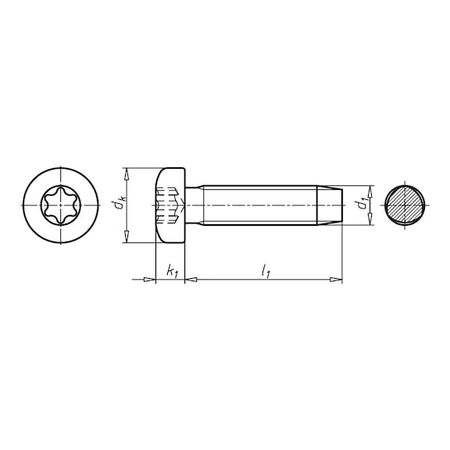

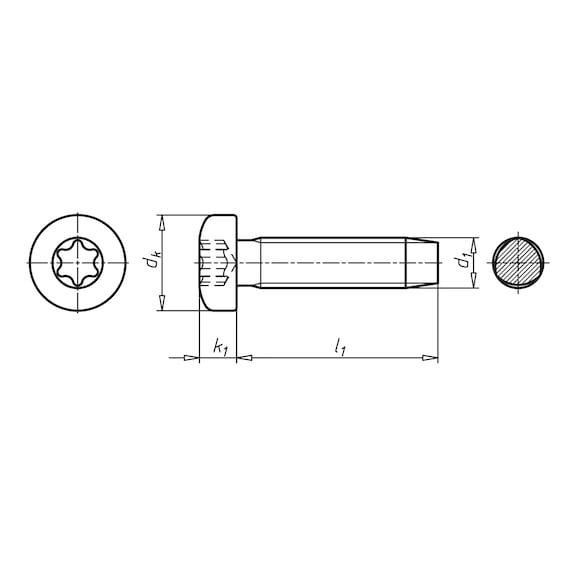

Technical Specifications
- Thread type x nominal diameter: M3
- Length: 5 mm
- Head diameter: 5.6 mm
- Head height: 2.4 mm
- Head type: Flat head
- Material: Steel, case-hardened
- Surface: Zinc plated with blue passivation and slide coating
- Thread type: Metric thread
- Internal drive: TX10 (hexalobular)
- Guideline values for hole diameters: 2.8 mm
- Standards: DIN 7500-1
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.4mm x 5mm x 5.6mm
- Weight: 0.01 kg
Key Features
- Mechanical and functional properties in accordance with DIN 7500-1 (shape PE)
- Case-hardened zinc-plated steel with blue passivation (A2K) and slide coating
- Head dimensions according to ISO 14583
- Self-tapping screws form a nut thread without interrupting material structure
- Non-cutting thread formation displaces and strain-hardens material
- Low rolling torques with greater thread flank overlap
- TRILOBULAR core diameter shape combined with radius profile of thread flanks
- High clamping force and load-bearing capacity
- Play-free and self-locking thread seating
- Formed thread corresponds to standard metric thread
- RoHS-compliant
Professional Installation Requirements
- Installation by trained personnel or professionals recommended to ensure proper thread forming and secure fastening.
Applications
- Used for forming nut threads in cast blind holes, rim holes, and drilled, lasered, and punched sheet metal parts
- Ideal for mechanical fastening where thread cutting is to be avoided
- Suitable for applications requiring high clamping force and load-bearing capacity
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Meets DIN 7500-1 standard for thread rolling screws
Environmental Benefits
- Eliminates need for thread cutting, reducing manufacturing waste
- Durable coating extends product life, reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth warranty policy for details.
Available Now
The Wurth GEFU Thread Rolling Screw with Taptite 2000 Thread Flat Head TX10 M3x5 is available for immediate purchase. Ideal for mechanical fastening in metal fabrication and assembly applications.
