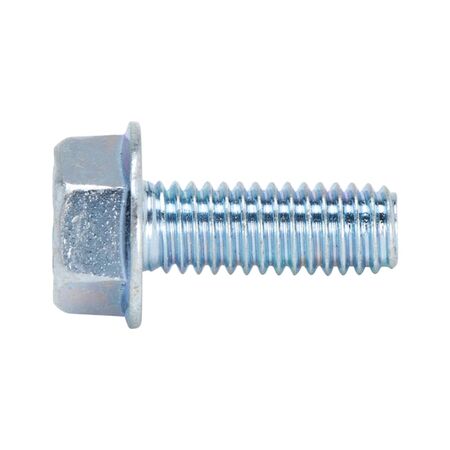

GEFU Thread Rolling Screw | Taptite 2000 Hexagon Head | M5x8 | Zinc Plated A2K | @Pack of 100 | by Wurth
The GEFU thread rolling screw with Taptite 2000 thread is designed for high load-bearing applications, featuring a self-tapping hexagon head that eliminates the need for thread cutting. Made from case-hardened steel with zinc plating and blue passivation, this screw ensures secure fastening in various materials, making it ideal for industrial and manufacturing use. With a collar design and anti-friction coating, it provides low rolling torque and high clamping force.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GEFU Thread Rolling Screw | Taptite 2000 Hexagon Head | M5x8 | Zinc Plated A2K | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 20973508
Alternatively Known As: Taptite 2000 screw, thread rolling screw, self-tapping hex screw, DIN 7500-1 screw, collar hex screw
Technical Specifications
- Thread type x nominal diameter: M5
- Length: 8 mm
- Collar diameter: 10.25 mm
- Head height: 4.5 mm
- External drive: WS8 hexagon
- Guideline hole diameter: 4.6 mm
- Standard: DIN 7500-1
- Material: Steel, case-hardened
- Surface: Zinc plated with blue passivation (A2K)
- RoHS-compliant: Yes
- Head type: Hexagon head
- Drive type: Hexagon
- Collar/flange: Yes
- Dimensions (H x L x W): 4.5mm x 8mm x 10mm
- Weight: 0.01 kg
Key Features
- Self-tapping screws form a nut thread without interrupting material structure
- Case-hardened steel with zinc plating and blue passivation (A2K)
- Anti-friction coating for low rolling torque and high clamping force
- TRILOBULAR core diameter shape combined with radius profile thread flanks
- High load-bearing capacity due to strain-hardened counter thread
- Play-free and self-locking thread seating reduces likelihood of screw loosening
- Eliminates need for thread cutting, saving costs
Professional Installation Requirements
- Installation by trained personnel or professionals recommended to ensure correct torque and secure fastening.
Applications
- Used for fastening in cast blind holes, rim holes, drilled, lasered, and punched sheet metal parts
- Ideal for applications requiring high load-bearing capacity and secure fastening without thread cutting
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Eliminates need for thread cutting, reducing manufacturing waste and energy consumption
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth warranty policy for details.
Available Now
The Wurth GEFU thread rolling screw with Taptite 2000 hexagon head M5x8 is available for immediate purchase, ideal for industrial and manufacturing fastening applications.
