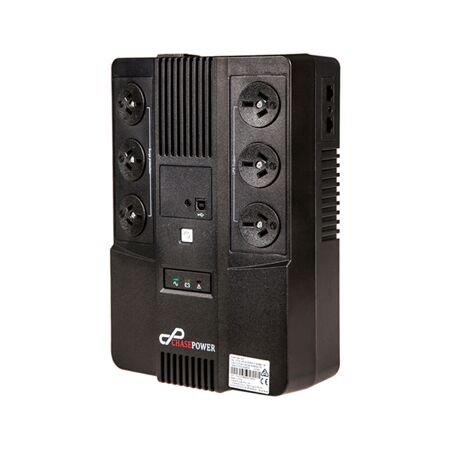

Gem 800 800VA 480W Line Interactive UPS AVR Chase Power

BRAND: Chase Power
SKU: CP2317
$180.30 List price: $270.40
+ −
30 Days Return Electricians Unlock Trade Access
Chase Power Gem 800 line interactive UPS 800VA/480W AVR compact tower. Entry backup for PCs, routers and CCTV.

Alternatively Known As: Gem 800 UPS, 800VA AVR UPS, 480W Battery Backup UPS, Wall-Mountable UPS

Technical Specifications
  • UPS Topology: Line interactive
  • Capacity: 800VA / 480W
  • Input Voltage: 220/230/240VAC
  • Input Voltage Range: 162-290VAC
  • Output Waveform: Simulated sine wave
  • Voltage Regulation: +/-10% in battery mode
  • Frequency: 50Hz or 60Hz
  • Frequency Regulation: +/-1Hz in battery mode
  • Transfer Time: 2-6ms typical
  • Battery: 12V/9Ah sealed battery, 1 unit
  • Recharge Time: 6-8 hours to 90% after complete discharge
  • Outlets: 3 x battery-backed Australian sockets; 3 x surge-protected Australian sockets
  • Management Interface: USB
  • USB Charger Output: 5.0V/1.0A maximum
  • Connection: 10A power point required
  • Operating Environment: 0-40°C; 0-90% RH non-condensing
  • Noise Level: Less than 40dB
  • Protection: Discharge, overcharge and overload protection
  • Alarm Indicators: AC mode, battery mode, fault mode, backup, low battery and overload
  • Dimensions (H x L x W): 93mm x 293mm x 202mm
  • Weight: 7 kg
Key Features
  • Boost and buck automatic voltage regulation
  • Compact, lightweight and wall-mountable design
  • Cold-start function enables operation without mains power
  • Automatic restart when AC supply resumes
  • User-replaceable battery
  • USB interface for real-time UPS status monitoring and automatic shutdown
  • RJ11/RJ45 telephone and Ethernet surge protection
  • Ergonomic one-direction cable management
  • Six Australian outlets, including three battery-backed outlets
  • UPSilon 2000 software support for power management
Applications
  • Home and small business computers
  • Routers and networking equipment
  • CCTV and security systems
  • Telephone systems
  • Hi-fi equipment
  • Eftpos and point-of-sale equipment
  • Individual workstation protection
Standards & Compliance
  • Relevant UPS safety standard: AS IEC 62040.1
  • Plug-in connection and any fixed electrical work should comply with AS/NZS 3000; product certification should be confirmed from the supplied RCM and compliance documentation
Environmental Benefits
  • Green power function is designed to reduce energy consumption
  • Automatic voltage regulation can reduce unnecessary battery use and help extend battery life
  • User-replaceable battery design can extend the service life of the UPS and reduce replacement waste
  • Lead-acid battery components should be recycled through an appropriate battery recycling service at end of life
Warranty Information

Chase Power states that its UPS warranty is equal to or better than competing brands, but a specific Gem 800 warranty period was not published. Confirm the applicable warranty terms with the supplier before purchase.

Available Now

Available through Chase Power and authorised Australian distributors.

UPS Sizing Calculator




This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
