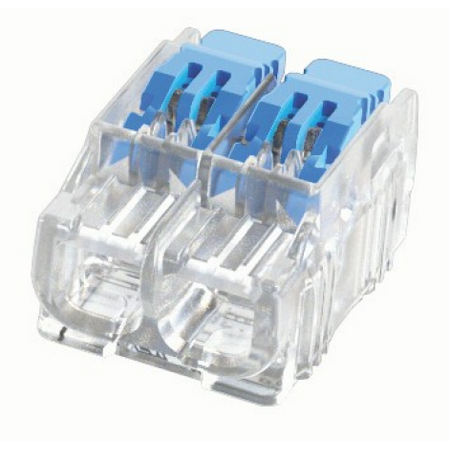

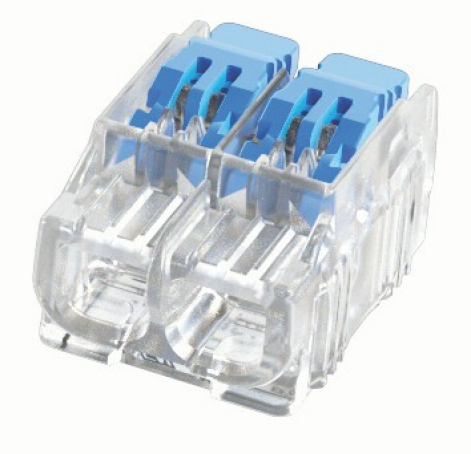

Lever Wire Connector 2 Wires | 32A Current Rating | Reusable Design | Clear Housing | Pack of 100 by Ideal Electrical
Gen II Lever Wire Connector designed for 2 wires, featuring a 32A current rating and reusable design—ideal for electrical wiring in residential and commercial settings. Built for electricians, it ensures secure connections with clear housing for visual inspection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Gen II Lever Wire Connector - 2 wires 100/jar
Brand: Ideal Electrical
SKU: IDL30-0092J
Alternatively Known As: Lever Wire Connector, Push In Wire Connector, Reusable Wire Connector, Electrical Wire Connector
Technical Specifications
- Wire Range: Solid and rigid stranded wires (7 strands) 0.2 mm² to 4.0 mm²; flexible wires 0.14 mm² to 4.0 mm² (24 - 12 AWG)

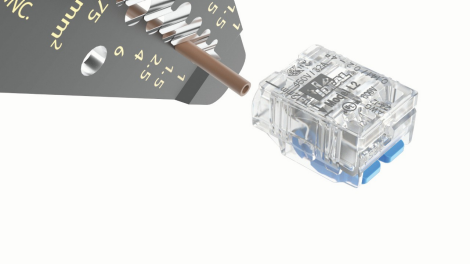

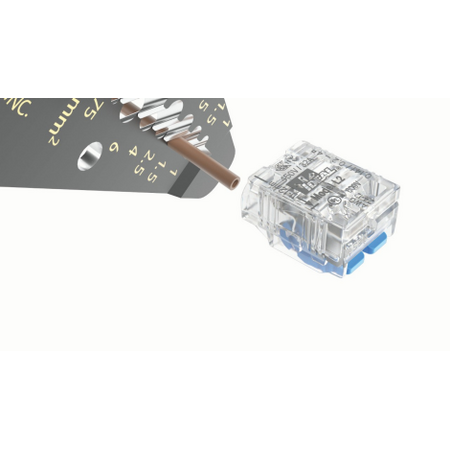

- Strip Length: 11-12 mm (0.45 inches)
- Current Rating: IEC 60998 - 32A at 450V, UL 486C - 20A at 600V
- Temperature Rating: 85°C ambient (IEC), 105°C working (UL)
- Compliance: BS 7671:2018 (18th Edition), IEC 60998, UL 486C
- Approvals: CE, UKCA, UL, ENEC
- Dimensions (H x L x W): 20mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Clear housing for visual inspection of connections
- Optimized spring design for easy open levers and strong bite
- Single lever operation for less hand stress and better grip
- Reusable for solid and stranded wires
- Compatible with solid and rigid stranded wires (7 strands) 0.2 mm² to 4.0 mm² and flexible wires 0.14 mm² to 4.0 mm² (24 - 12 AWG)
- Dedicated test ports for easy servicing
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Electrical wiring connections in residential, commercial, and industrial settings
- Joining solid, stranded, and flexible wires securely and efficiently
- Suitable for use in electrical installations requiring reliable wire connectors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reusable design reduces waste by allowing multiple uses
- Clear housing enables inspection to prevent faulty connections and reduce electrical failures
Warranty Information
Standard manufacturer warranty applies; please refer to Ideal Electrical for specific warranty details.
Available Now
The Gen II Lever Wire Connector - 2 wires 100/jar by Ideal Electrical is available for immediate purchase, ideal for electrical wiring and connection tasks in various applications.
