Lever Wire Connector 3 Wires | 32A Rated Current | 450V Rated Voltage | Reusable Design | Pack of 50 by Ideal Electrical

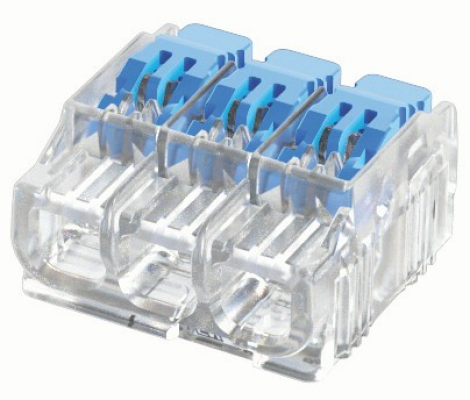

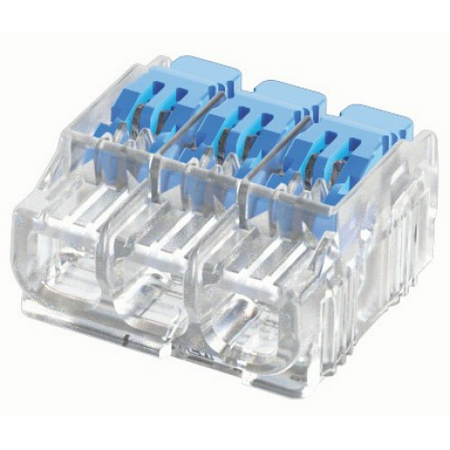

Gen II Lever Wire Connector with a reusable design and clear housing—ideal for secure electrical wiring connections. Built for residential, commercial, and industrial applications, it accommodates solid, stranded, and flexible wires efficiently.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Gen II Lever Wire Connector - 3 wires 50/Jar
Brand: Ideal Electrical
SKU: IDL30-0093J
Alternatively Known As: Lever Wire Connector, Push In Wire Connector, Reusable Wire Connector, Electrical Wire Connector
Technical Specifications
- Wire Range: solid and rigid stranded wires (7 strands) - 0.2 mm² to 4.0 mm²; flexible wires - 0.14 mm² to 4.0 mm² (24 - 12 AWG)
- Strip Length: 11-12 mm (0.45 inches)
- Rated Current: IEC 60998: 32A, UL 486C: 20A
- Rated Voltage: IEC 60998: 450V, UL 486C: 600V
- Temperature Rating: 85° C (ambient), 105° C (working)
- Compliance: BS 7671:2018 (18th Edition), IEC 60998, UL 486C
- Approvals: CE, UKCA, UL, ENEC
- Dimensions (H x L x W): 30mm x 60mm x 40mm
- Weight: 0.1 kg
Key Features
- Clear housing for visual inspection of work
- Optimized spring design for easy open levers and strong bite
- Single lever operation for less stress on hands
- Reusable for solid and stranded wires
- Compatible with standard wire ranges from 0.14 mm² to 4.0 mm²

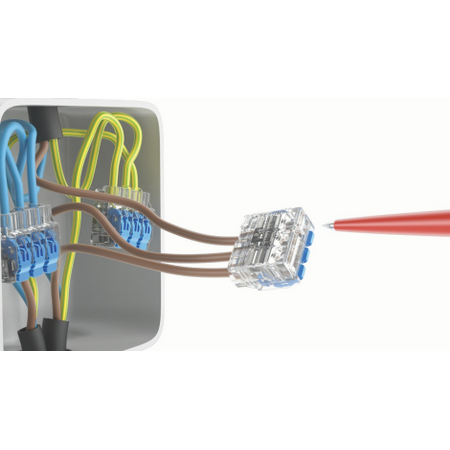

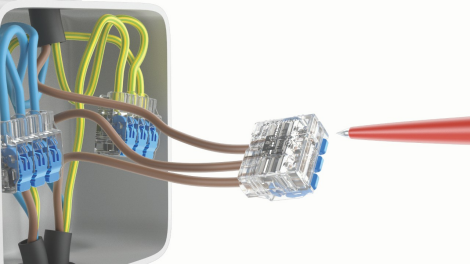

- Dedicated test ports for easy servicing
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications

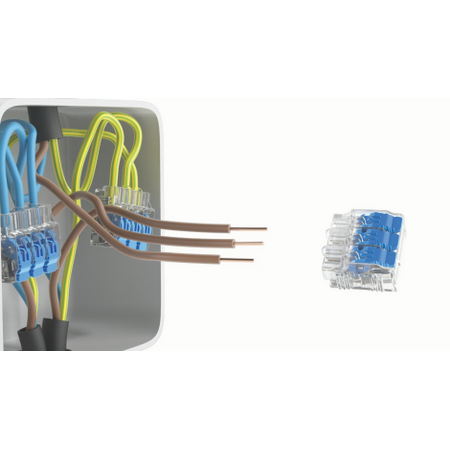

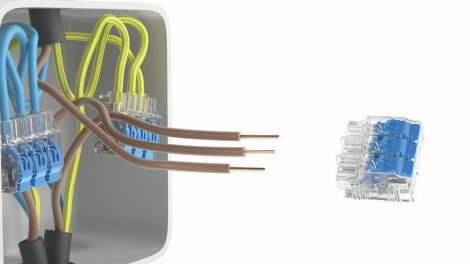

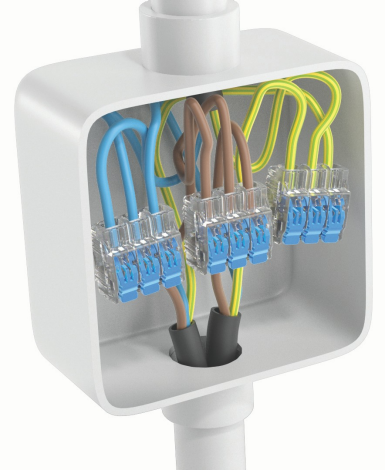

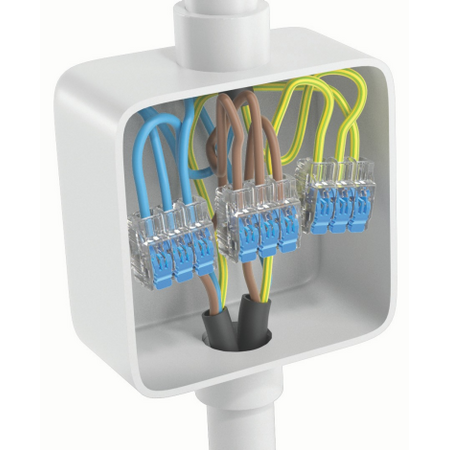

- Electrical wiring connections in residential, commercial, and industrial settings
- Joining solid, stranded, and flexible wires securely and efficiently
- Suitable for use in electrical installations requiring reliable wire connectors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Reusable design reduces waste by allowing multiple uses
- Secure connections reduce electrical faults and energy loss
Warranty Information
Standard manufacturer warranty applies; please refer to Ideal Electrical for specific warranty details.
Available Now
The Gen II Lever Wire Connector - 3 wires 50/Jar by Ideal Electrical is available now for immediate purchase. Ideal for electrical wiring projects requiring secure and reusable wire connections.
