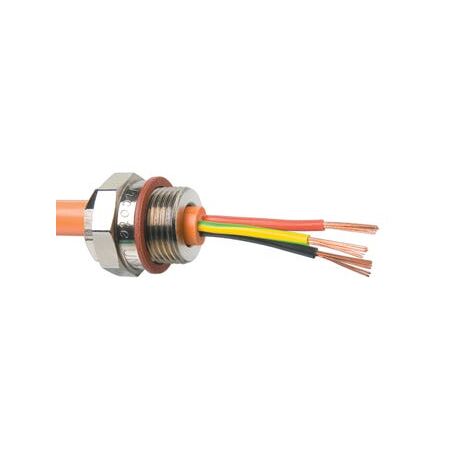

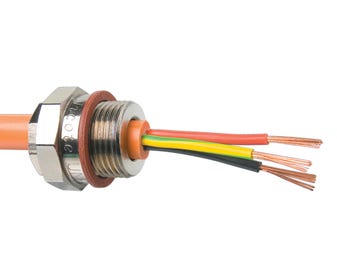

General Purpose Cable Gland M63 | IP66/68 Rated | Nickel-Plated Brass | 45.0-50.0 mm by Cabac
The Cabac Nicote General Purpose M63 Cable Gland provides a secure and reliable seal for circular cables in both indoor and outdoor environments. Made from nickel-plated brass, it offers durability and corrosion resistance with IP66/68 ingress protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GLAND NICOTE GENERAL PURPOSE M63 OD 45.0-50.0
Brand: Cabac
SKU: UN63A
Alternatively Known As: Cable Gland M63, Circular Cable Gland, General Purpose Cable Gland, Nickel-Plated Brass Cable Gland
Technical Specifications
- Material: Nickel-plated brass
- Ingress Protection: IP66/68 (up to 30m water submersion)
- Suitable for circular cables with outer diameter 45.0-50.0 mm
- Locknut not included; compatible with LNBxxN series locknuts
- Conforms to AS60529-2004 for ingress protection standards
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.1 kg
Key Features
- Designed specifically for circular cable connections
- Provides a secure seal on cable sheaths
- Suitable for indoor and outdoor applications
- Nickel-plated brass components for strength and corrosion resistance
- Locknut not included; compatible with LNBxxN series locknuts
- Ingress Protection rated IP66/68 (up to 30m water depth)
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper sealing and compliance with electrical standards.
Applications
- Indoor and outdoor cable sealing and securing
- General-purpose circular cable connections
- Industrial and commercial electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Corrosion resistance extends product life, minimizing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The Cabac Nicote General Purpose M63 Cable Gland is available for immediate purchase, ideal for securing and sealing circular cables in industrial and commercial electrical installations.
