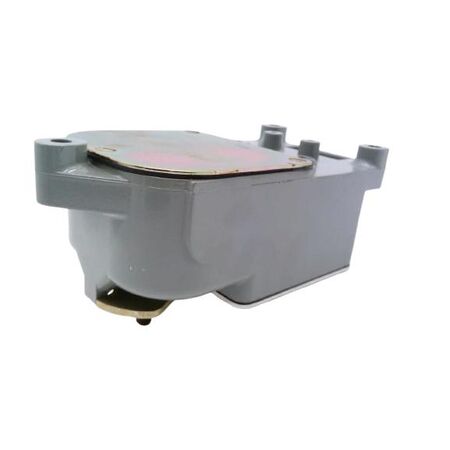

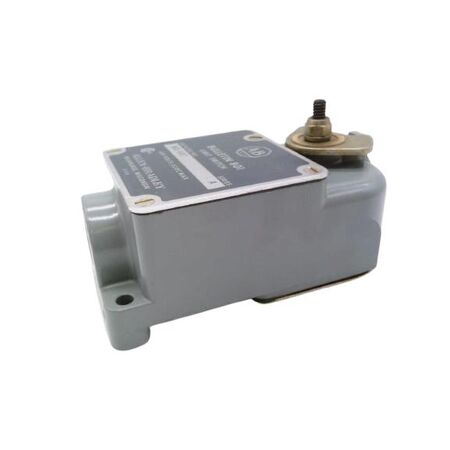

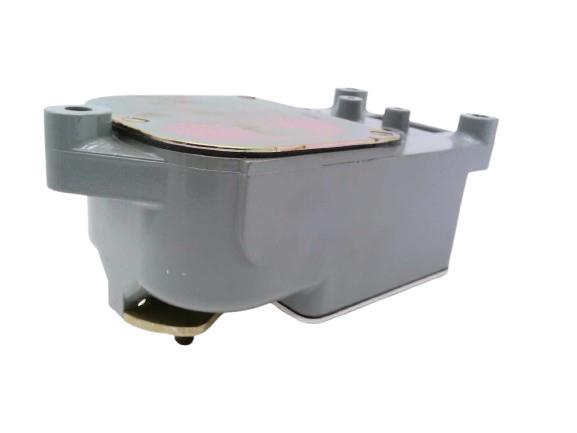

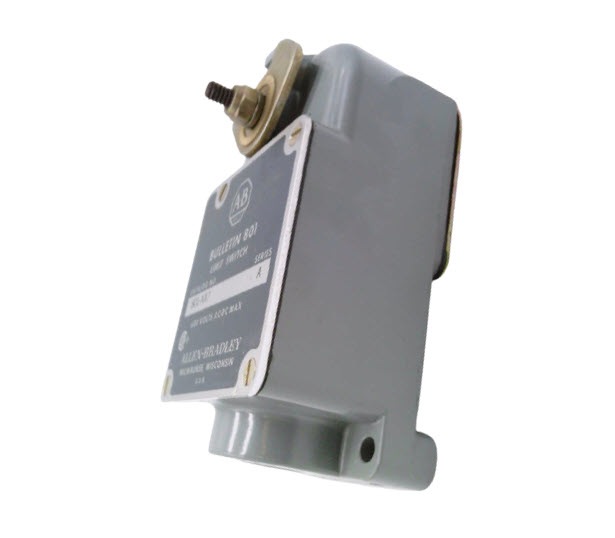

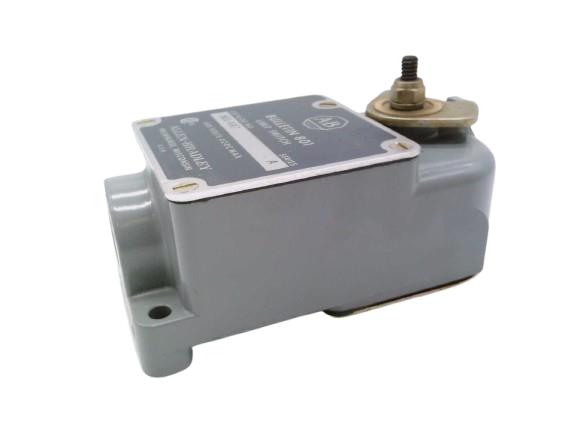

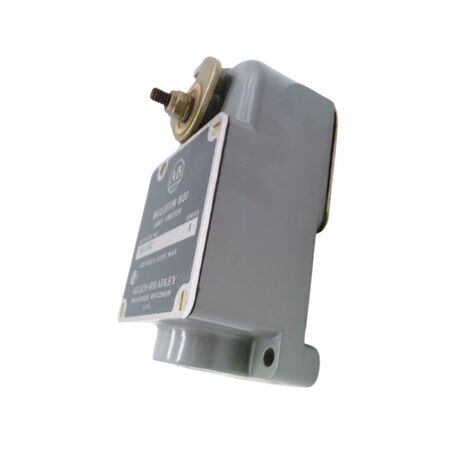

Product Name/Title: Allen-Bradley 801NX7 General Purpose Limit Switch
Brand: Allen-Bradley
SKU: 801NX7
Alternatively Known As: Limit Switch 801NX7, Allen-Bradley Snap Action Limit Switch, NEMA 9 Limit Switch
Technical Specifications
- Operating Force: 15.58N (3.5 lbs)
- Contact Configuration: 1 Normally Open Contact (NOC) and 3 Normally Closed Contacts (NCC)
- Enclosure Rating: NEMA 1
- Housing Style: NEMA 9
- Switch Action: Snap action maintained
- Lever: No lever
- Fork/Stroke: Not applicable
- Actuator Size: 20.6 mm (0.81 in)
- Dimensions (H x L x W): 60mm x 70mm x 50mm
- Weight: 0.16 kg
Key Features
- General purpose limit switch with NEMA 9 housing style
- No lever design
- 1 Normally Open Contact (NOC) and 3 Normally Closed Contacts (NCC)
- Snap action maintained operation
- NEMA 1 enclosure for basic protection
- Custom limit switch configuration
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with industrial control equipment to ensure proper setup and safety compliance.
Applications
- Industrial automation control systems
- Machinery position detection
- Manufacturing equipment safety interlocks
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 801NX7 General Purpose Limit Switch is available for immediate purchase, ideal for industrial automation and machinery safety applications.
