General Purpose Limit Switch | Roller Lever Actuator | NEMA 5 Housing | Snap Action Mechanism | by Allen-Bradley
The General Purpose Limit Switch by Allen-Bradley features a roller lever actuator and a NEMA 5 housing, making it ideal for industrial automation control systems. With a snap action mechanism and 1 Normally Open Contact (NOC) plus 3 Normally Closed Contacts (NCC), it ensures reliable position detection for machinery and conveyor systems. Designed for durability and efficiency, this limit switch supports energy savings and minimizes waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact Configuration: 1 Normally Open Contact (NOC) & 3 Normally Closed Contacts (NCC)
- Housing Style: NEMA 5
- Enclosure Rating: NEMA 1
- Actuator Type: Roller Lever
- Operating Force: 22.25N (5.0 lbs)
- Operating Angle: 15 to 25 degrees
- Action: Snap action with spring return
- Dimensions (H x L x W): 80mm x 40mm x 60mm
- Weight: 0.3 kg
Key Features
- General purpose limit switch with roller lever
- NEMA 5 housing style with NEMA 1 enclosure
- Snap action spring return mechanism
- 1 Normally Open Contact (NOC) and 3 Normally Closed Contacts (NCC)
- Spring return with 15 to 25 degrees operating angle
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper integration and safety compliance.
Applications
- Industrial automation control systems
- Machinery position detection
- Conveyor systems
- Manufacturing process control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Supports efficient machinery operation, contributing to energy savings
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now

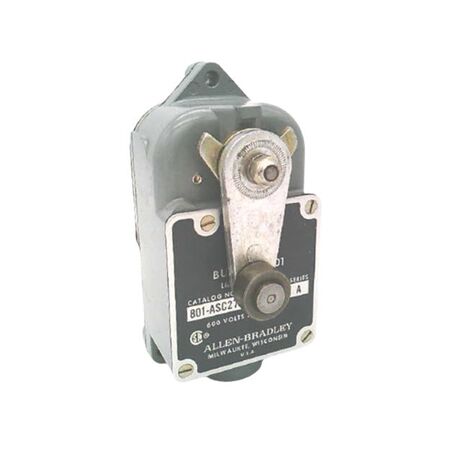

The Allen-Bradley 801ASC27 General Purpose Limit Switch is available now for immediate purchase. Ideal for industrial and manufacturing automation applications.
