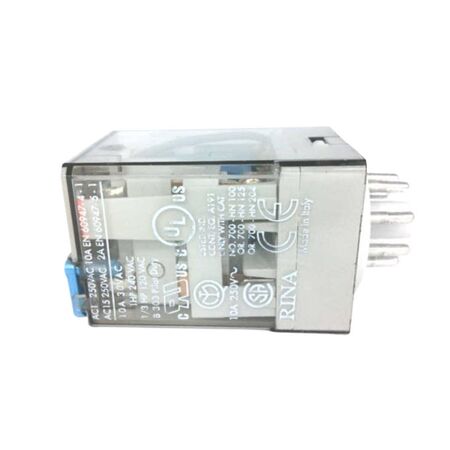

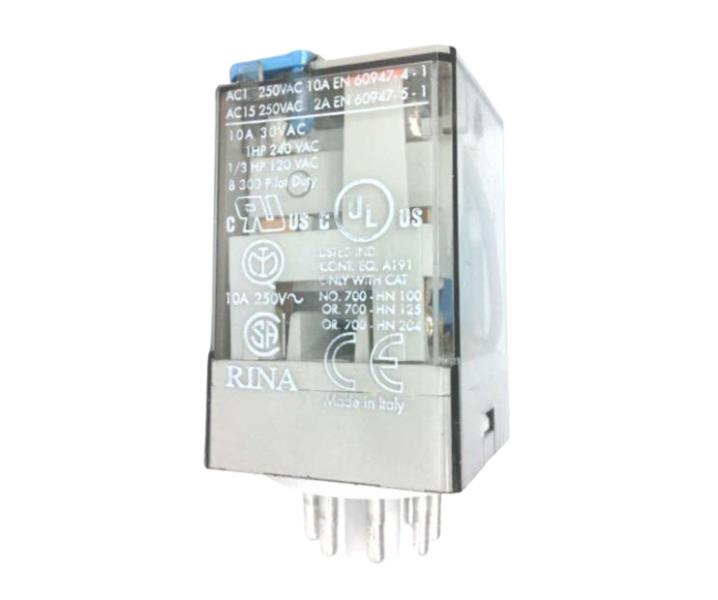

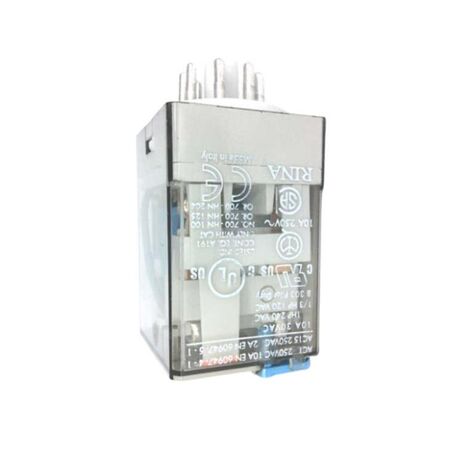

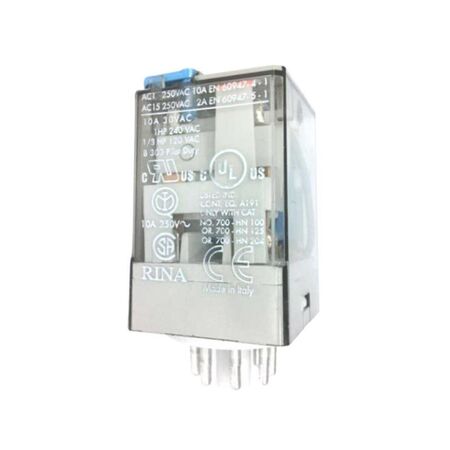

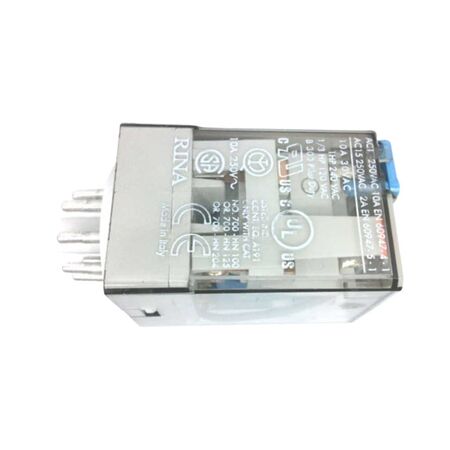

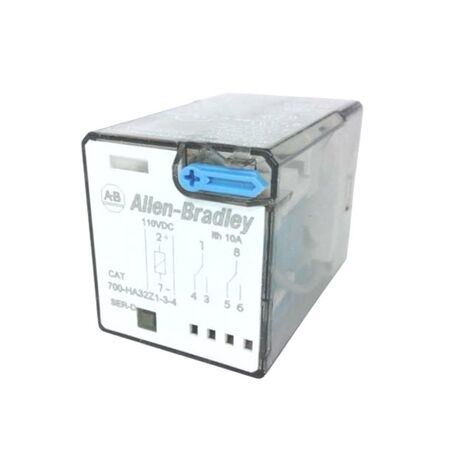

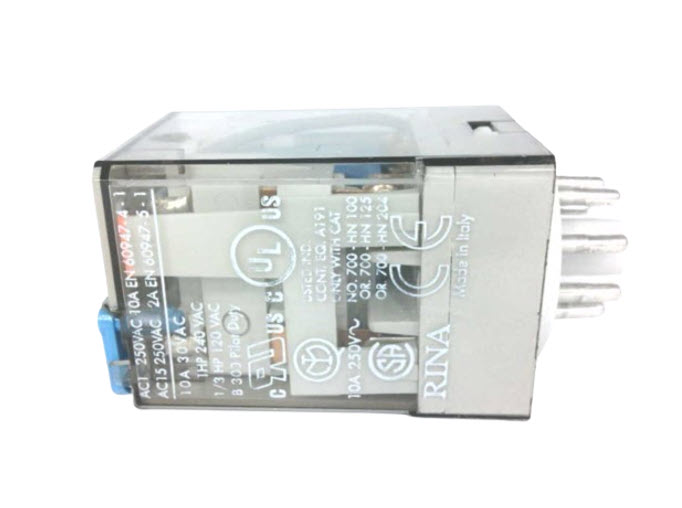

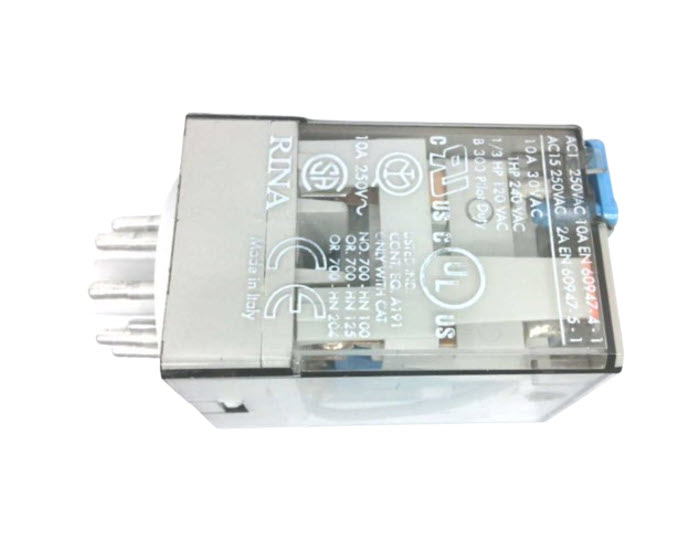

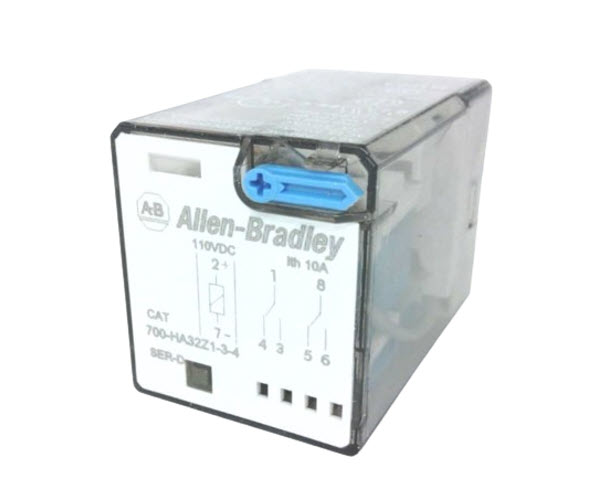

General Purpose Relay 700HA32Z134 | 10A Contact Rating | 110V DC Coil | Push-to-Test & Manual Override | by Allen-Bradley
The General Purpose Relay 700HA32Z134 is designed for reliable electrical switching in industrial control systems and automation equipment. With a 10A contact rating and 110V DC coil voltage, it features pin-style terminals for secure connections and an on/off LED indicator for easy status monitoring. Ideal for general-purpose applications, this relay also includes push-to-test functionality and manual override capability for enhanced usability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Contact Rating: 10 A
- Coil Voltage: 110 V DC
- Frequency: 50/60 Hz
- Terminal Type: Pin-style terminals
- Poles: 2-pole
- Indicator: On/off indicator with LED option
- Features: Push-to-test, manual override, mountable
- Dimensions (H x L x W): 60mm x 50mm x 30mm
- Weight: 0.2 kg
Key Features
- General purpose relay with tube base
- Pin-style terminals for secure connections
- On/off indicator for status monitoring
- 2-pole configuration
- Push-to-test functionality
- Manual override capability
- LED option for visual indication
- Mountable design
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper wiring and safety compliance.
Applications
- Industrial control systems
- Automation equipment
- Electrical switching applications
- General purpose electrical relay use
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Energy efficient operation reduces power consumption in control circuits
Warranty Information
Radwell 2-year warranty included. Factory warranty does not apply.
Available Now
The Allen-Bradley 700HA32Z134 General Purpose Relay is available now for immediate purchase. Ideal for industrial and automation control applications.
