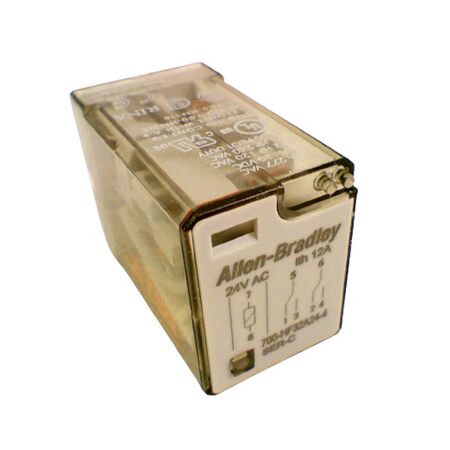

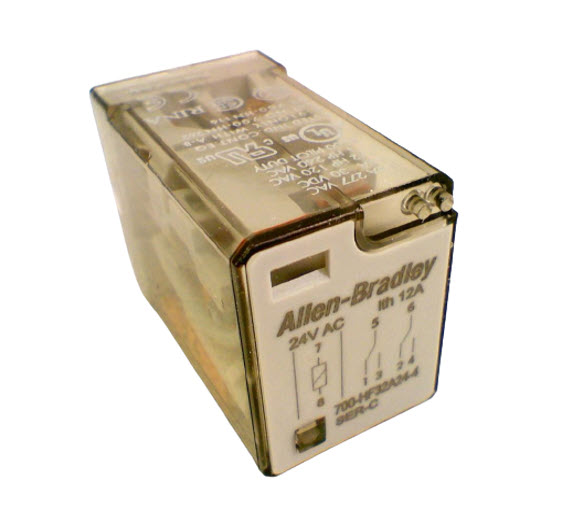

General Purpose Relay 700HF32A244 | 12 Amp Current Rating | Square Base & Blade-Style Terminals | by Allen-Bradley
The General Purpose Relay 700HF32A244 is designed for reliable electrical switching in industrial control systems and automation equipment. With a 12 Amp current rating and 24 VAC operation, this relay features a square base and blade-style terminals for easy wiring. Ideal for professionals, it includes an LED option for status indication and is built for durability, minimizing the need for frequent replacements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Type: General Purpose Relay
- Base: Square
- Terminals: Blade-style
- Poles: 2
- Current Rating: 12 Amp
- Coil Voltage: 24 VAC
- Frequency: 50/60 Hz
- LED Option: Included
- Style: Open, mountable
- Dimensions (H x L x W): 50mm x 45mm x 35mm
- Weight: 0.2 kg
Key Features
- General purpose relay with square base
- Blade-style terminals for easy wiring
- 2 pole configuration
- 12 Amp current rating
- 24 VAC operation at 50/60 Hz
- LED option for status indication
- Open style mountable design
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Industrial control systems
- Automation equipment
- General electrical switching
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 700HF32A244 General Purpose Relay is available for immediate purchase, ideal for industrial and automation control applications.
