Home/Data/Network/Switches/Gigabit Managed Network Switch | 8 Port PoE | 1 Uplink | 120W Power Budget by Matchmaster

Trade Discount 17%

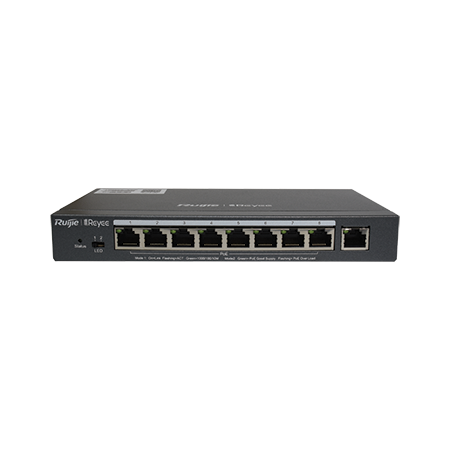

9 Port Gigabit Managed Network Switch (8 Port PoE, 1 Uplink)

Gigabit Managed Network Switch | 8 Port PoE | 1 Uplink | 120W Power Budget by Matchmaster

BRAND: Matchmaster

SKU: 57MM-SW09P

$292.50 List price: $354.00

+ −

30 Days Return Delivery Options

Gigabit managed network switch with 8 PoE ports and 1 uplink—ideal for small to medium-sized businesses. Built for enhanced control and security, with a 120W power budget for powering multiple devices.

Description
Attachments

Product Name/Title: 9 Port Gigabit Managed Network Switch (8 Port PoE, 1 Uplink)

Brand: Matchmaster

SKU: 57MM-SW09P

Alternatively Known As: Managed Network Switch, PoE Switch, Gigabit Switch

Technical Specifications

Ports: 8x 10/100/1000 Mbps (PoE/PoE+), 1x 10/100/1000 Mbps
Maximum output power per PoE port: 30W
Maximum PoE output power per switch: 120W
Switching capacity: 18Gbps
Packet forwarding rate: 13.392Mpps
Surge protection: Common mode: 4KV, Air discharge: 6KV, Contact discharge: 4KV
Power consumption: ≤130W
Power supply: External power adapter
Operating temperature: 0 to 40°C
Storage temperature: -40 to 70°C
Operating humidity: 10% to 90% RH
Storage humidity: 5% to 95% RH
MAC capacity: 4K
Static MAC address: 16
VLAN support: 802.1Q VLAN
Dimensions (H x L x W): 28mm x 108mm x 202mm
Weight: 1.5 kg

Key Features

Nine port managed network switch with eight PoE+ ports.
Free cloud service supports smart networking features.
120W PoE budget with up to 30W per PoE port.
Port status display, traffic statistics, and PoE output power status.
Supports port duplex/negotiation rate configuration and flow control.
L2 features: port mirroring, loop protection, and cable detection.

Professional Installation Requirements

Professional installation is recommended for optimal network performance.

Applications

Residential: Home networking
Commercial: Office networks, data centers
General: Any environment requiring managed network connectivity

Environmental Benefits

Energy-saving features through automatic PoE power negotiation.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The 9 Port Gigabit Managed Network Switch (8 Port PoE, 1 Uplink) is available now for immediate purchase. Ideal for residential and commercial networking applications.

Brochure (57mm-sw09p_brochure.pdf, 621 Kb) [Download]

Ruijie Product Application Guide (ruijie-product-application-guide-brochure.pdf, 2,823 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
