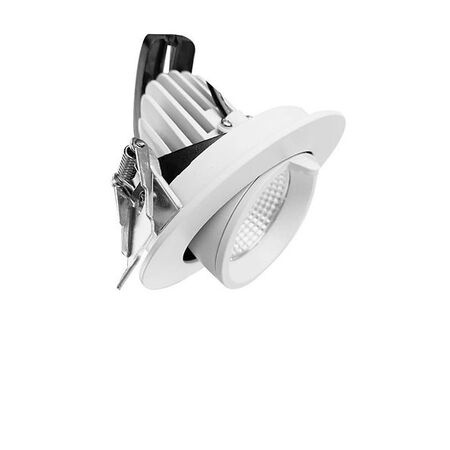

Gimble Adjustable COB Downlight 10W | 60° Tilt | 3000K-5000K
Gimble adjustable COB downlight with 10W power and 60° tilt—ideal for versatile lighting solutions. Built for residential and commercial spaces, with selectable color temperature (3000K-5000K) and sleek white finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Gimble Adjustable COB Downlight 10W | 60° Tilt | 3000K-5000K
SKU: DL05-03-10W/WH
Alternatively Known As: Adjustable LED Downlight, COB Downlight 10W, Tilt LED Ceiling Light
Technical Specifications
- Wattage: 10W
- Input Voltage: AC 240V
- Tilting Function: 60º (-15º to +45º) with 340º rotation
- Colour Temperature: 3000K / 4000K / 5000K selectable via dip switch
- CRI: Ra>80
- Lumens Output: 700-750lm
- IP Rating: IP20
- Cutout Size: 90mm
- Dimensions (H x L x W): 80mm x 102mm x 102mm
- Weight: 0.3 kg
Key Features
- Adjustable tilt function with 60º range (-15º to +45º) and 340º rotation
- Selectable colour temperature via dip switch: 3000K, 4000K, 5000K
- High CRI (Ra>80) for accurate colour rendering
- Compact size suitable for standard ceiling cutouts
- IP20 rated for indoor use
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper mounting and electrical connection.
Applications
- Residential: Living rooms, kitchens, hallways
- Commercial: Offices, retail stores, hospitality venues
- General: Indoor ceiling lighting requiring adjustable directional light
Standards & Compliance
- Complies with AS/NZS 60598 for safety and performance standards.
Environmental Benefits
- Energy-efficient 10W LED reduces power consumption compared to traditional lighting
- Long lifespan reduces waste and replacement frequency
Warranty Information
3 years replacement warranty against manufacturing defects.
Available Now
The Gimble Adjustable COB Downlight 10W is available now for immediate purchase. Ideal for indoor residential and commercial ceiling lighting applications.
