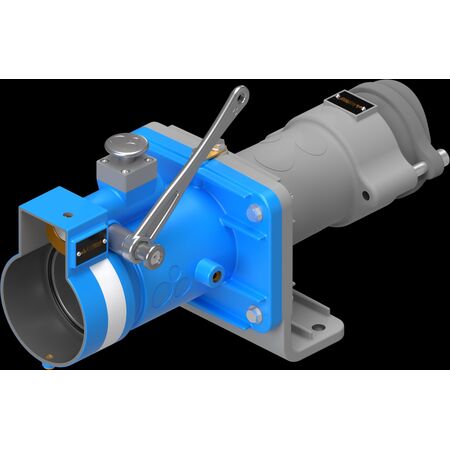

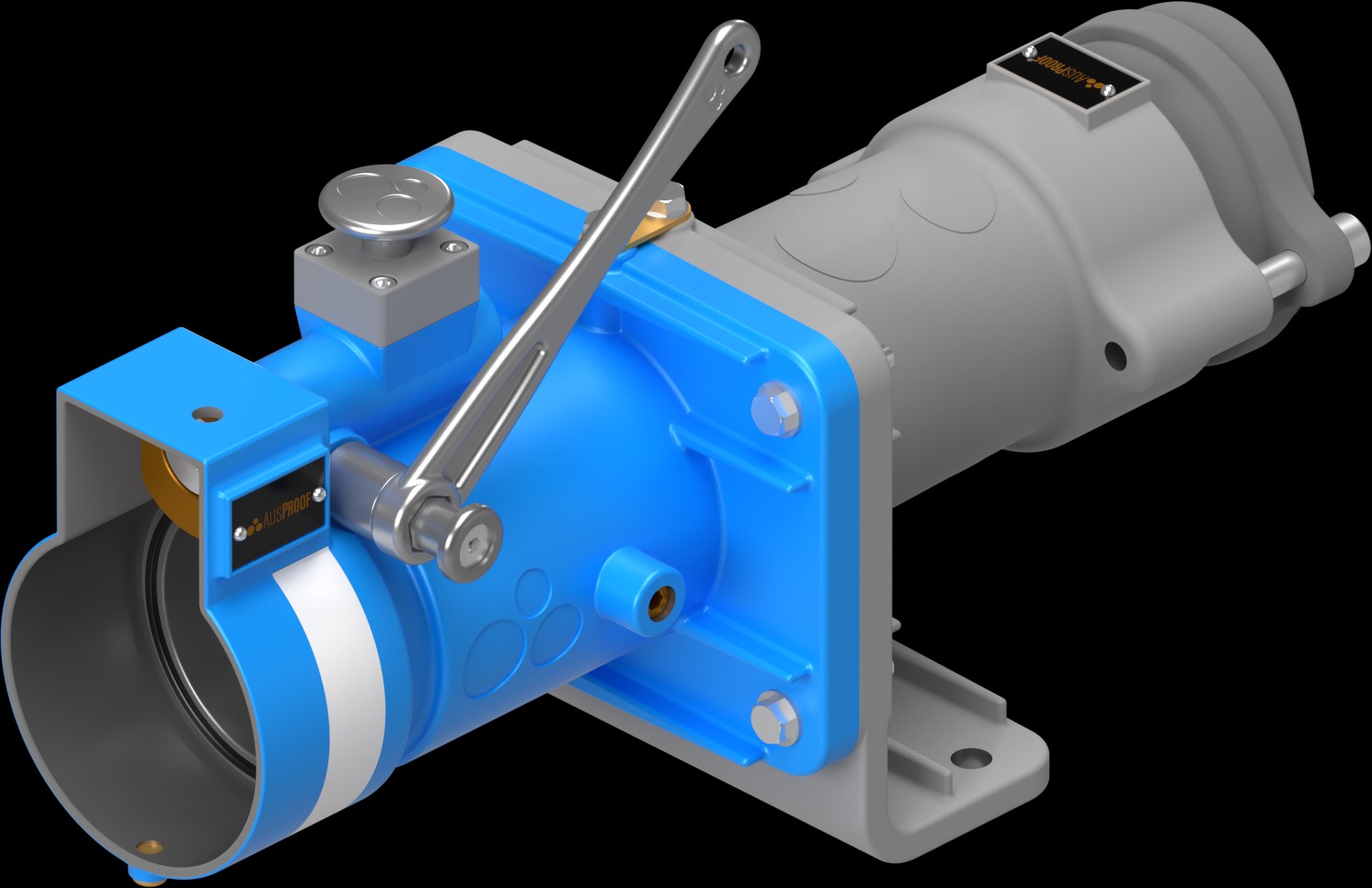

Gland Bracket 1100V 425A 4P | Quick Release Mechanism | IP55 Rated | Stainless Steel by Ausproof

BRAND: Ausproof

SKU: RS2567QR

$3,517.30 List price: $4,368.40

+ −

30 Days Return Delivery Options

Gland bracket with 1100V operating voltage and 425A current rating—ideal for mining and hazardous environments. Built for safety and durability, featuring a quick release mechanism and IP55 ingress protection for reliable electrical connections.

Description

Product Name/Title: PL QR 1100V 425A 4P Gland Bracket (0) 35-C 40-45-G (241.1)

Brand: Ausproof

SKU: RS2567QR

Alternatively Known As: Ex-certified plug, Quick Release plug, Mining plug, Flameproof plug, Stainless steel industrial plug

Technical Specifications

Operating Voltage: 660V to 3300V
Current Rating: 300A to 425A
Material: Stainless Steel
Ingress Protection: IP55
Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
AC HV Withstand (Phase): 8.6kV for one minute
AC HV Withstand (Pilot): 1.0kV for one minute
Temperature Rise: Rated for 300A and 425A
Weight: 10.7 kg for receptacle, 9.0 kg for plug
Dimensions (H x L x W): 240mm x 300mm x 240mm
Weight: 10.7 kg

Key Features

Quick Release mechanism for easy operation
Single piece contacts to prevent hot joints
Easy termination and flameproof repair
Full solid earth connectivity throughout the product
Full phase to phase segregation with earth
Lightest Ex product on the market
Silicone protection cover included
Stainless steel hanging plate for Back-to-Back (B2B) receptacles

Professional Installation Requirements

Installation must be performed by a qualified electrician experienced with Ex-certified equipment and hazardous area installations.

Applications

Mining and tunnelling operations
Commercial electrical installations
Group 1 hazardous environments requiring Ex-certified equipment

Standards & Compliance

Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres

Environmental Benefits

Durable stainless steel construction reduces need for frequent replacements
Flameproof repairable design minimizes waste by allowing on-site repairs
Energy efficient design reduces electrical losses

Warranty Information

Standard manufacturer warranty applies. Please contact Ausproof for detailed warranty terms.

Available Now

The Ausproof PL QR 1100V 425A 4P Gland Bracket is available now for immediate purchase. Ideal for mining, tunnelling, and hazardous commercial applications requiring robust and safe electrical connections.
