Gland Mounting Body Kit | 660V to 3300V | IP55 Rated | Quick Release by Ausproof
Gland mounting body kit with 660V to 3300V operating voltage and IP55 ingress protection—ideal for mining and hazardous environments. Built for commercial applications, featuring quick release and durable stainless steel construction for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

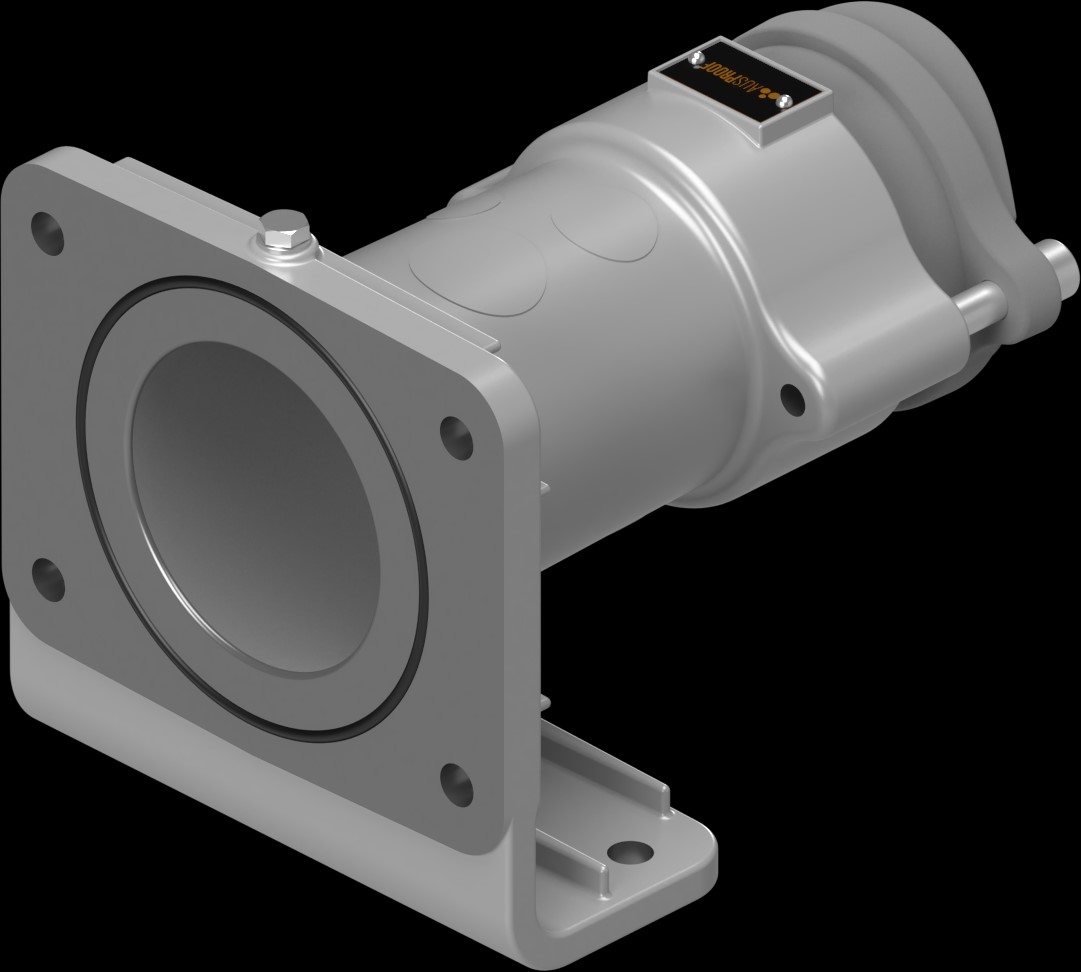

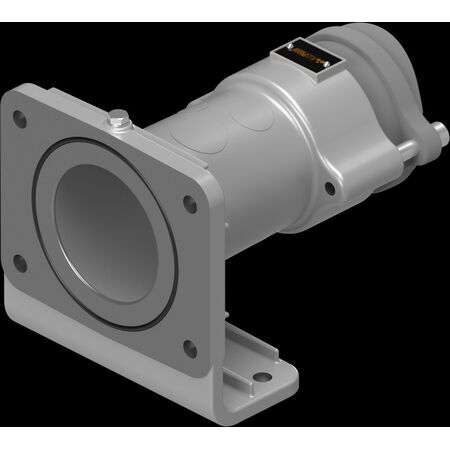

Product Name/Title: PL RGM RECEP Gland Mounting Body Kit
Brand: Ausproof
SKU: RS2511
Alternatively Known As: PL Range Receptacle Gland Mounting Kit, Flameproof Receptacle Kit, Ex-certified Receptacle Body Kit
Technical Specifications
- Operating Voltage: 660V to 3300V
- Current Ratings: 300A and 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests of 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests of 8.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 8.6kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Plug Weight: 9.0 kg
- Receptacle Weight: 10.7 kg
- Dimensions (H x L x W): 300mm x 300mm x 300mm
- Weight: 10.7 kg
Key Features
- Quick Release
- Single piece contacts to prevent hot joints
- Easy termination
- Easy flameproof repair
- Full solid earth connectivity throughout product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation must be performed by qualified personnel trained in hazardous area electrical equipment to ensure compliance with safety standards and proper flameproof assembly.
Applications
- Mining
- Tunnelling
- Commercial applications
- Group 1 hazardous environments
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements.
- Flameproof repairability minimizes waste by allowing on-site body casting replacement.
Warranty Information
Warranty details available upon request from Ausproof; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PL RGM Receptacle Gland Mounting Body Kit is available now for immediate purchase. Ideal for use in mining, tunnelling, and hazardous commercial environments requiring robust, flameproof electrical connections.
