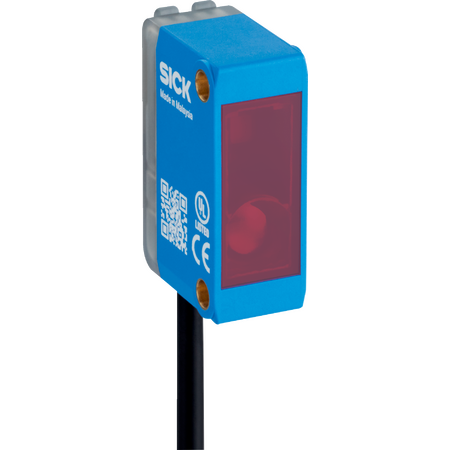

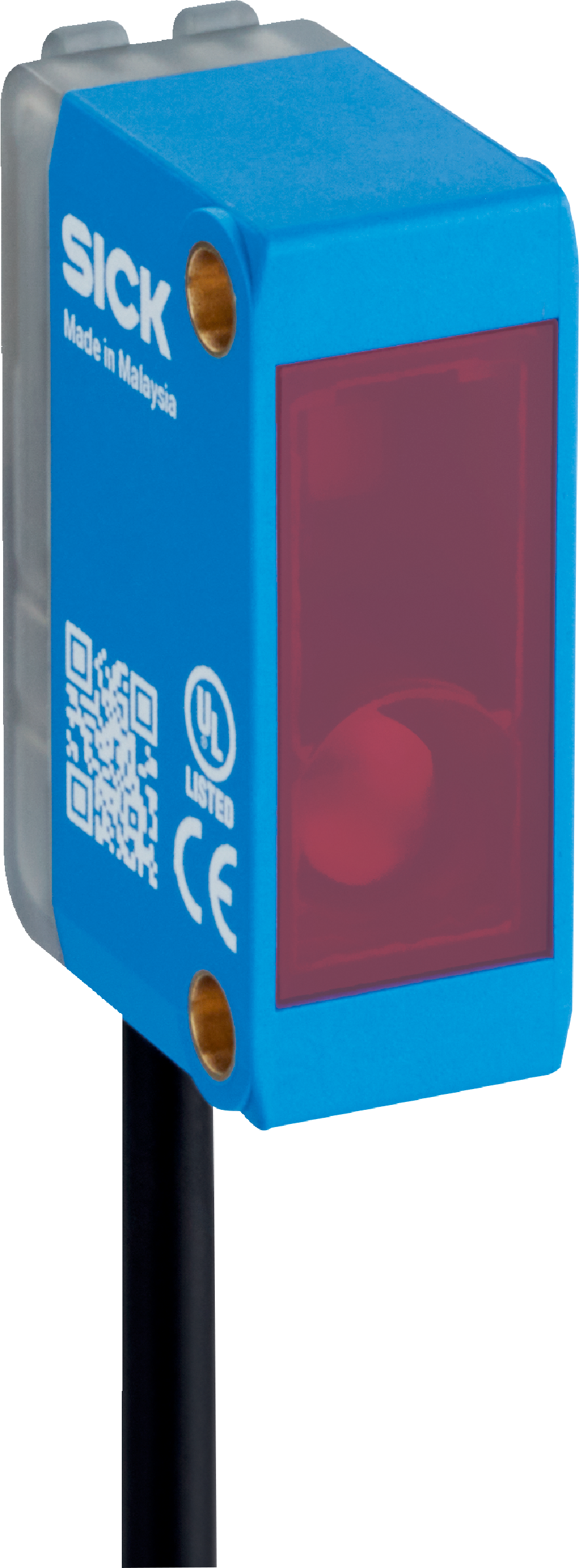

GLD6SP-1GE121AEZZZ | Photoelectric sensors
The SICK GLD6SP-1GE121AEZZZ is a high-performance photoelectric retro-reflective sensor designed for precise object detection in industrial automation, featuring a dual lens system, visible red LED light, and robust IP67 housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GLD6SP-1GE121AEZZZ | Photoelectric sensors
Brand: SICK
SKU: 1139401
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK GLD6SP sensor, Industrial object sensor, Optical sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.03 m to 6 m; recommended 0.25 m to 1.6 m
- Light source: PinPoint LED, visible red light, wavelength 640 nm
- Light spot size: Ø 11.5 mm at 350 mm distance
- Operating voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load at 24 V
- Output type: 1 x NPN open collector, light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Protection: Reverse polarity, overcurrent, short-circuit protected
- Housing material: Plastic ABS; front screen PMMA; cable PVC
- Cable: 3-wire, 2 m length, Ø 3.4 mm
- Enclosure rating: IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 11 ms, 18 shocks total
- Vibration resistance: 10 Hz to 55 Hz, amplitude 0.5 mm
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.03 m to 6 m with recommended range 0.25 m to 1.6 m for best performance
- PinPoint LED visible red light with 640 nm wavelength and point-shaped light spot
- LED indicators for power and object presence status
- Operating mode switch for inverting switching function (light/dark switching)
- High switching frequency up to 1000 Hz and fast response time ≤ 625 µs
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Robust IP67 rated plastic ABS housing suitable for harsh environments
- Wide ambient operating temperature range from -30 °C to +55 °C
- Complies with multiple international safety and EMC standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring, configuration, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and presence detection in manufacturing
- Packaging and assembly line monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life reduces power consumption and waste
- Durable construction minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GLD6SP-1GE121AEZZZ photoelectric sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
