GLD6SP-22A121AEZZZ | Photoelectric sensors

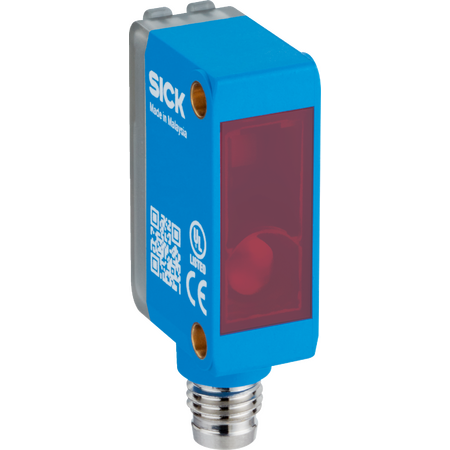

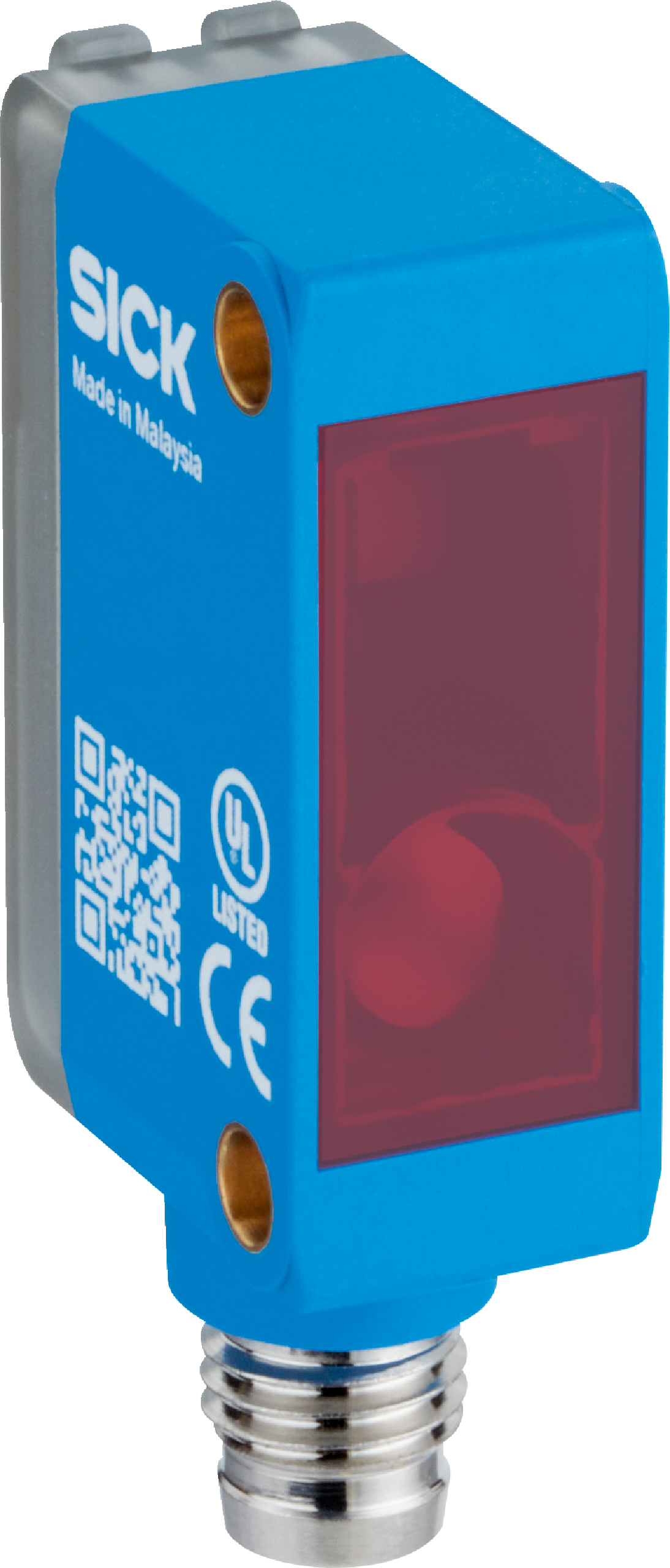

The SICK GLD6SP-22A121AEZZZ is a compact photoelectric retro-reflective sensor designed for precise object detection in industrial automation, featuring a dual lens system, robust IP67 housing, and fast switching capabilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GLD6SP-22A121AEZZZ | Photoelectric sensors
Brand: SICK
SKU: 1139254
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK GLD6SP sensor, Industrial object sensor, PNP photoelectric sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.03 m to 6 m; recommended 0.25 m to 1.6 m
- Light source: PinPoint LED, visible red light, 640 nm wavelength
- Light spot size: Ø 11.5 mm at 350 mm distance
- LED indicators: Green for power, yellow for object detection status
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Output type: 1 PNP digital output, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 625 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Circuit protection: Reverse polarity, overcurrent, short-circuit
- Housing material: Plastic ABS; front screen PMMA
- Connection: Male M8 connector, 4-pin
- Enclosure rating: IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 11 ms, 18 shocks total
- Vibration resistance: 10 Hz to 55 Hz, amplitude 0.5 mm
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.03 m to 6 m with recommended best performance range of 0.25 m to 1.6 m
- PinPoint LED visible red light with 640 nm wavelength and point-shaped light spot
- Polarisation filter included to reduce interference
- LED indicators for power and object detection status
- Fast response time of ≤ 625 µs and switching frequency up to 1,000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Robust plastic ABS housing with IP67 rating for dust and water protection
- Wide ambient operating temperature range from -30 °C to +55 °C
- Shock and vibration resistant for industrial environments
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life reduces power consumption and waste
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GLD6SP-22A121AEZZZ Photoelectric Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
