GLD6SP-22A121AEZZZ | Photoelectric sensors

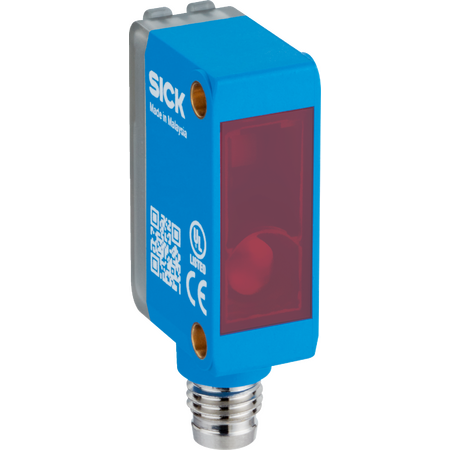

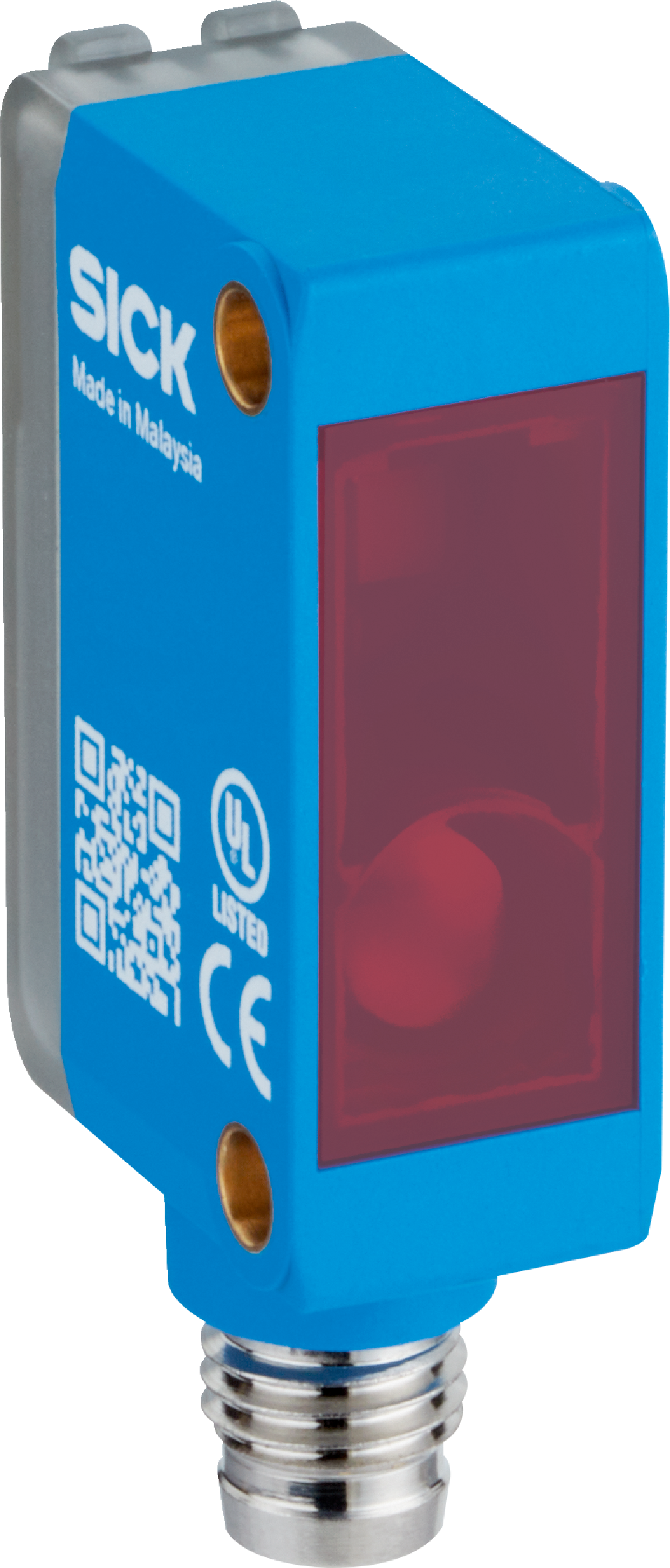

The SICK GLD6SP-22A121AEZZZ is a compact photoelectric retro-reflective sensor designed for precise object detection in industrial automation, featuring a dual lens system, visible red LED light, and robust IP67 housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GLD6SP-22A121AEZZZ | Photoelectric sensors
Brand: SICK
SKU: 1150891
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK GLD6SP sensor, Industrial object sensor, Visible red light sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.03 m to 6 m; recommended 0.25 m to 1.6 m
- Light source: PinPoint LED, visible red light, 640 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Output type: 1 PNP digital output, light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 625 µs
- Switching frequency: 1,000 Hz
- Protection: Reverse polarity, overcurrent, short-circuit
- Housing material: Plastic ABS; front screen PMMA
- Connector: Male M8, 4-pin
- Enclosure rating: IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Electromagnetic compatibility: EN 60947-5-2
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.03 m to 6 m with recommended best performance range of 0.25 m to 1.6 m
- PinPoint LED visible red light with 640 nm wavelength and 100,000 hours average service life
- Polarisation filter included to reduce interference
- LED indicators for power and object detection status
- Operating mode switch for inverting switching function (light/dark switching)
- High switching frequency of 1,000 Hz and fast response time ≤ 625 µs
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Robust IP67 rated plastic ABS housing with metal M8 4-pin connector
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Long service life minimizes waste and replacement frequency
- Robust design reduces environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GLD6SP-22A121AEZZZ Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
