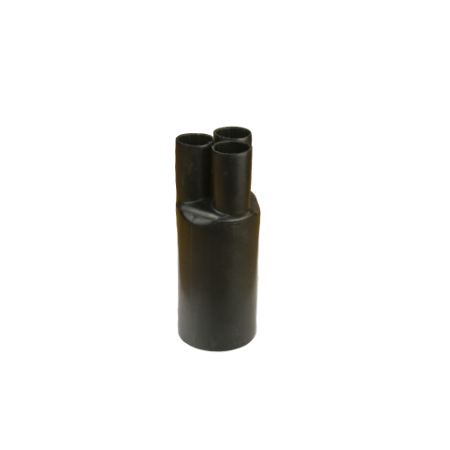

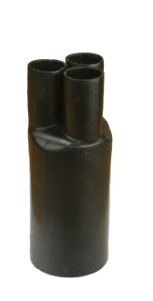

Glue Lined 3 Way Breakout Boot | -40°C to +100°C | UV Stabilised & Chemical Resistant | 3:1 Shrink Ratio by United Manufacturers Australia
Glue lined 3 way breakout boot designed for electrical insulation and protection, with a temperature range of -40°C to +100°C and a 3:1 shrink ratio. Ideal for industrial and commercial cable management, it offers UV stabilization and chemical resistance for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Glue Lined 3 Way Breakout Boot | -40°C to +100°C | UV Stabilised & Chemical Resistant | 3:1 Shrink Ratio by United Manufacturers Australia
Brand: United Manufacturers Australia
SKU: UMB320
Alternatively Known As: Heatshrink Breakout Boot, Glue Lined Heatshrink Boot, Cable Breakout Sleeve
Technical Specifications
- Type: 3 Way
- Size: 37.0mm - 14.0mm
- Fingers: 15.0mm - 4.0mm
- Pack Quantity: 1
- Temperature Range: -40°C to +100°C
- Shrink Ratio: 3:1
- UV Stabilised and Chemical Resistant
- Dimensions (H x L x W): 14mm x 50mm x 37mm
- Weight: 0.05 kg
Key Features
- Glue lined for quick and easy application
- Water tight and highly resistant to ultraviolet rays and various chemicals
- Adhesive lined and UV stabilised
- 3:1 shrink ratio
- Temperature range from -40°C to +100°C
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper sealing and protection of cable joints.
Applications
- Electrical insulation and protection for cable joints and terminations
- Industrial and commercial cable management
- Protection against moisture, UV rays, and chemicals in outdoor and indoor environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable material reduces the need for frequent replacements
- Protects cables from environmental damage, extending cable life and reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to United Manufacturers Australia for details.
Available Now
The Glue Lined 3way Break Out Boot by United Manufacturers Australia is available now for immediate purchase. Ideal for electrical insulation and cable protection applications.
