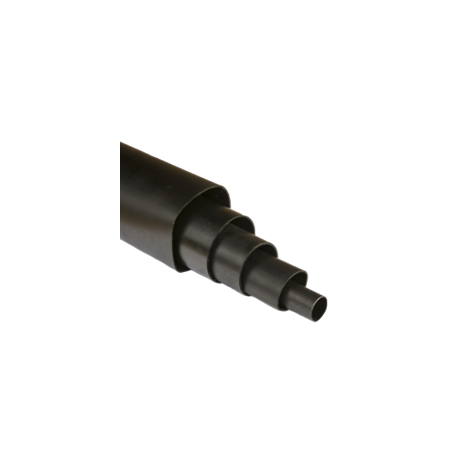

Glue Lined Thinwall Tubing | 3:1 Shrink Ratio | UV Stabilised & Flame Retardant | Black by United Manufacturers Australia
Glue lined thinwall tubing with a 3:1 shrink ratio and UV stabilisation—ideal for electrical insulation and waterproofing. Built for automotive, marine, and industrial applications, it offers flame retardant protection and flexibility for various uses.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Glue Lined Thinwall Tubing | 3:1 Shrink Ratio | UV Stabilised & Flame Retardant | Black by United Manufacturers Australia
Brand: United Manufacturers Australia
SKU: UMGUL20
Alternatively Known As: Heat Shrink Tubing, Waterproof Heatshrink, Flame Retardant Heat Shrink Tubing, UV Resistant Heatshrink
Technical Specifications
- Shrink Ratio: 3:1
- Operating Temperature: -55°C to +125°C
- Flame Retardant: 125°C degree cross-linked
- UV Stabilised
- Length: 1.2 meters
- Size Range: 19.1mm to 6.4mm
- Colour: Black (Red available on request)
- Dimensions (H x L x W): 6mm x 1200mm x 19mm
- Weight: 0.05 kg
Key Features
- Highest level of waterproofing protection
- 3:1 shrink ratio for versatile application
- UV stabilised for outdoor durability
- Operating temperature range from -55°C to +125°C
- 125°C flame retardant cross-linked material
- Flexible and quick to shrink
- Environmentally friendly and low smoke emission
- Available in black, red on request
Professional Installation Requirements
- Installation by a qualified electrician or trained professional is recommended to ensure proper application and safety.
Applications
- Electrical insulation and waterproofing
- Protection of wiring and connections in automotive, marine, and industrial environments
- Use in environments requiring UV resistance and flame retardancy
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Environmentally friendly material with low smoke emission during use
- Durable and long-lasting, reducing the need for frequent replacements
Warranty Information
Standard manufacturer warranty applies. Please refer to United Manufacturers Australia for specific warranty details.
Available Now
Glue Lined Thinwall Tubing Length by United Manufacturers Australia is available now for immediate purchase. Ideal for electrical insulation and waterproofing applications in industrial, automotive, and marine environments.
