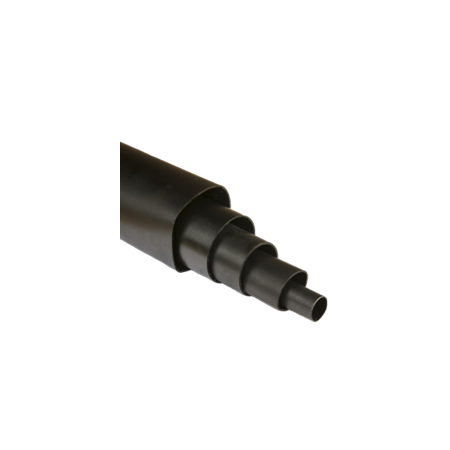

Glue Lined Thinwall Tubing | 3:1 Shrink Ratio | -55°C to +125°C | UV Stabilised by United Manufacturers Australia
Glue lined thinwall tubing with a 3:1 shrink ratio and operating temperature range of -55°C to +125°C—ideal for electrical insulation and waterproofing. Built for automotive, marine, and industrial applications, it offers the highest level of waterproofing protection and is UV stabilised for outdoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Glue Lined Thinwall Tubing | 3:1 Shrink Ratio | -55°C to +125°C | UV Stabilised by United Manufacturers Australia
Brand: United Manufacturers Australia
SKU: UMGUL40
Alternatively Known As: Heat Shrink Tubing, Waterproof Heatshrink, Shrink Tube, Heat Shrink Sleeve
Technical Specifications
- Shrink Ratio: 3:1
- Operating Temperature: -55°C to +125°C
- Flame Retardant: 125°C cross-linked
- UV Stabilised
- Length: 1.2 meters
- Size Range: 39.0mm to 13.0mm diameter
- Dimensions (H x L x W): 13mm x 1200mm x 39mm
- Weight: 0.05 kg
Key Features
- Highest level of waterproofing protection
- 3:1 Shrink Ratio
- UV stabilised for outdoor use
- Operating temperature range from -55°C to +125°C
- 125°C flame retardant cross-linked material
- Flexible and quick to shrink
- Environmentally friendly and low smoke
- Available in black with red on request
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure proper shrinkage and sealing.
Applications
- Electrical insulation and waterproofing
- Protection of wiring and connections in automotive, marine, and industrial applications
- Environmental sealing and strain relief for cables
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Environmentally friendly material with low smoke emission during use
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Glue Lined Thinwall Tubing Length by United Manufacturers Australia is available now for immediate purchase, ideal for electrical insulation and waterproofing applications.
