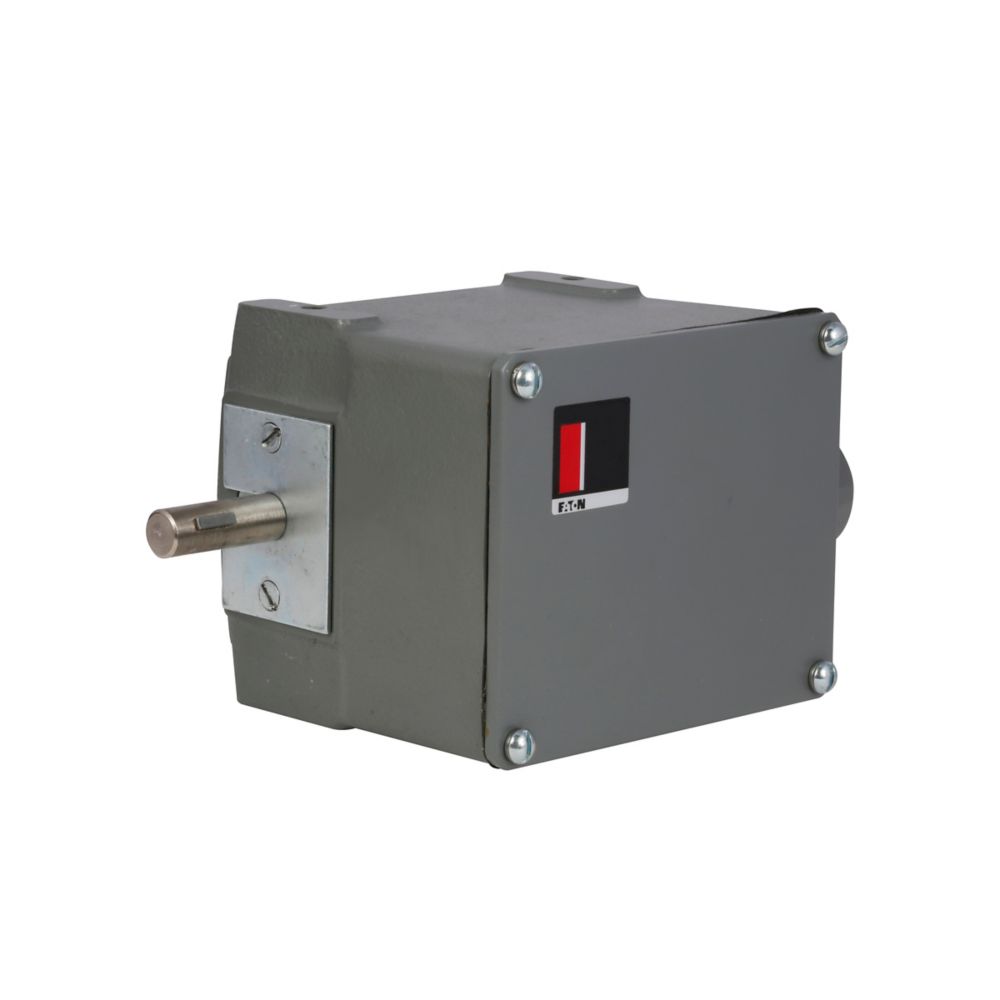

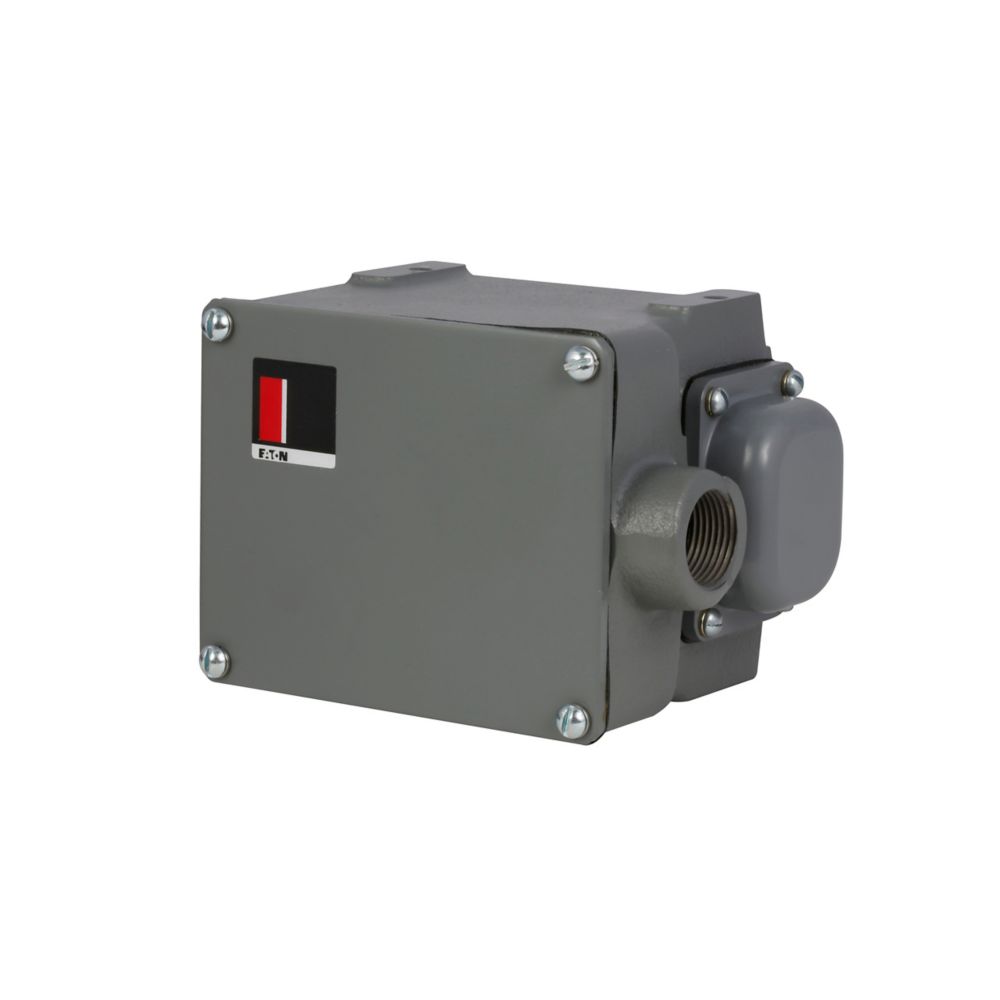

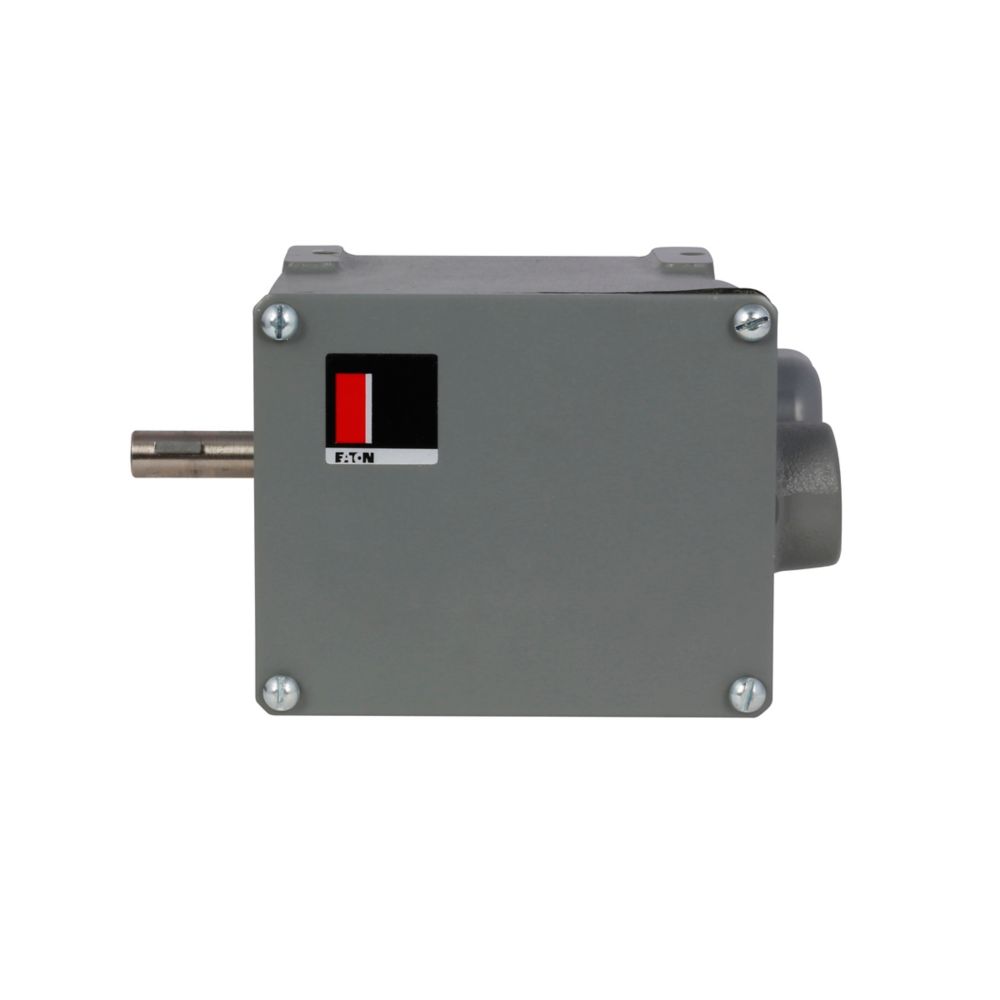

GP Limit Switch 2NO 2NC | Type J Rotating Shaft | NEMA 4 Rated | by Eaton
The GP Limit Switch 2NO 2NC is a Type J rotating shaft limit switch designed for industrial machinery control and conveyor systems. With a durable die cast zinc enclosure and a NEMA 4 environmental rating, it ensures reliable operation in hazardous locations. Rated for 10A max AC and 10A continuous max DC, this switch is UL Listed for safety compliance, making it an ideal choice for automated manufacturing equipment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GP Limit Switch 2NO 2NC | Type J Rotating Shaft | NEMA 4 Rated | by Eaton
Brand: Eaton
SKU: 10316H54
Alternatively Known As: Eaton 10316H54 Limit Switch, Type J Limit Switch, Rotating Shaft Limit Switch, Industrial Limit Switch
Technical Specifications
- Contact Rating: 10A at 600Vac, 10A at 240Vdc
- Contact Configuration: 2 Normally Closed (NC)
- Switch Type: Type J Rotating Shaft
- Enclosure Material: Die cast zinc
- Connection Type: Screw terminals
- Maximum AC Current: 10A
- Maximum DC Current: 10A continuous
- Environmental Rating: NEMA 4
- UL Listed
- Dimensions (H x L x W): 127mm x 222mm x 178mm
- Weight: 4.06 kg
Key Features
- Type J rotating shaft limit switch
- Die cast zinc enclosure for durability
- Rated for 10A max AC and 10A continuous max DC
- Contact configuration: 2 Normally Closed (NC)
- Screw terminal connections
- NEMA 4 environmental rating for protection against water and dust
- UL Listed for safety compliance
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
- Industrial machinery control
- Conveyor systems
- Automated manufacturing equipment
- Hazardous location environments requiring limit switch control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable die cast zinc enclosure extends product life reducing waste
- NEMA 4 rating ensures protection against environmental elements, reducing maintenance and replacement frequency
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eaton 10316 GP Limit Switch 2NO 2NC is available for immediate purchase, ideal for industrial and hazardous location applications requiring reliable limit switch control.
