Green Indicating Light | 12-30VAC/DC | IP67 & IP69K Rated | 100,000 Hour Life | @Each by Eaton
The Green Indicating Light operates on a 12-30VAC/DC voltage range, featuring a bright green LED for clear status indication. With an impressive operational life of 100,000 hours and high environmental protection ratings of IP67 and IP69K, this light is perfect for industrial control panels and automation systems. Designed for flush mounting, it ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

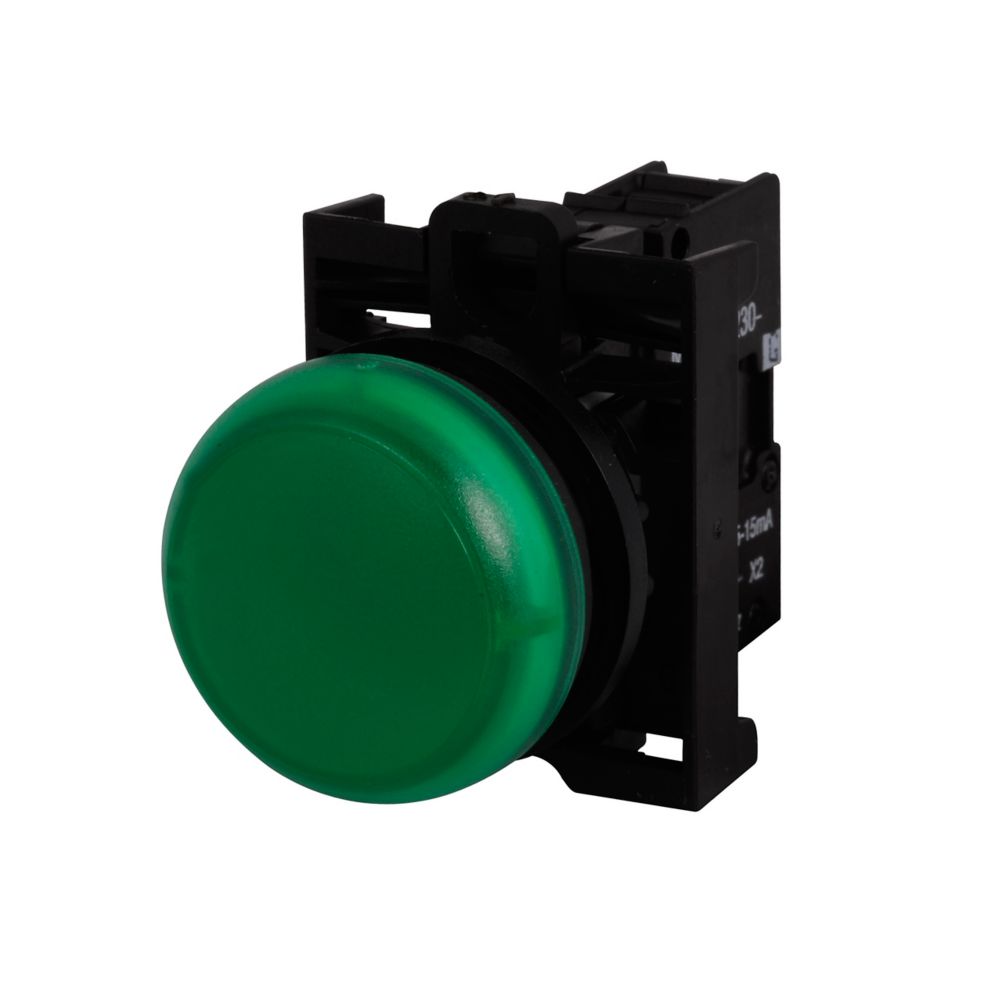

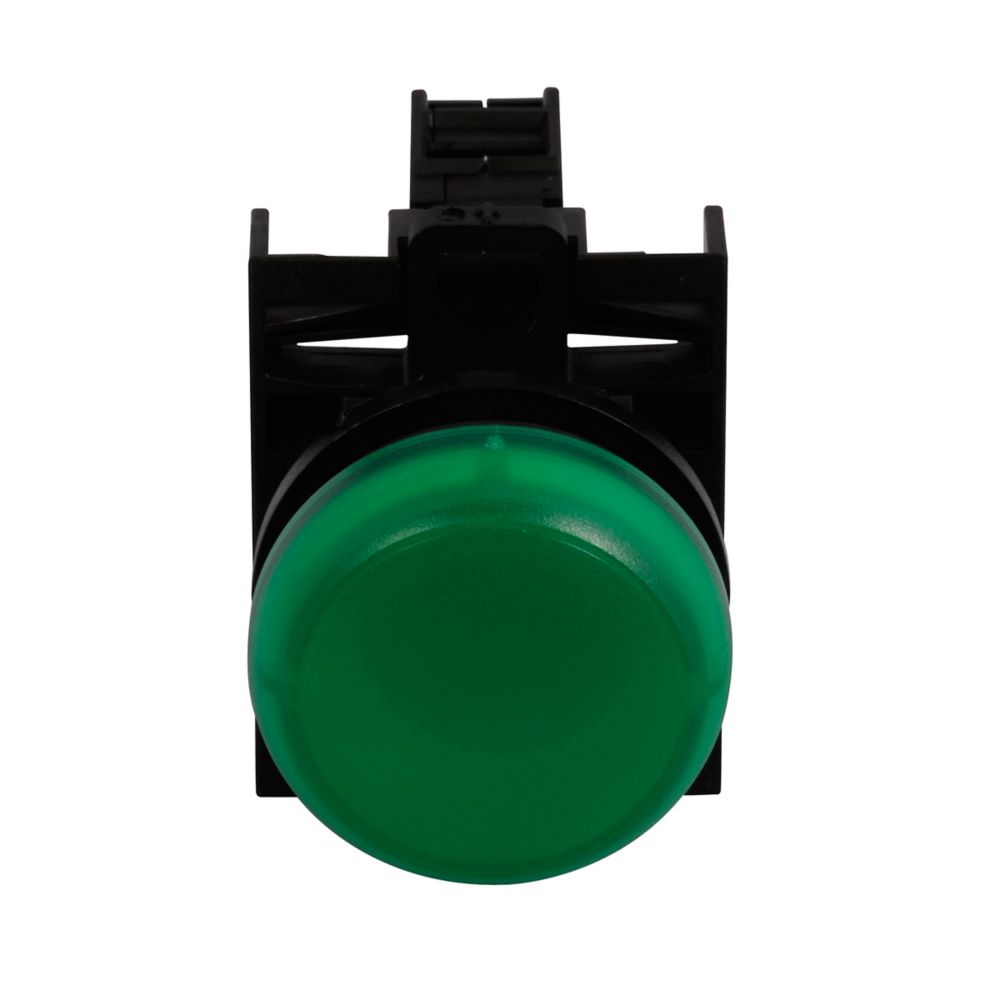

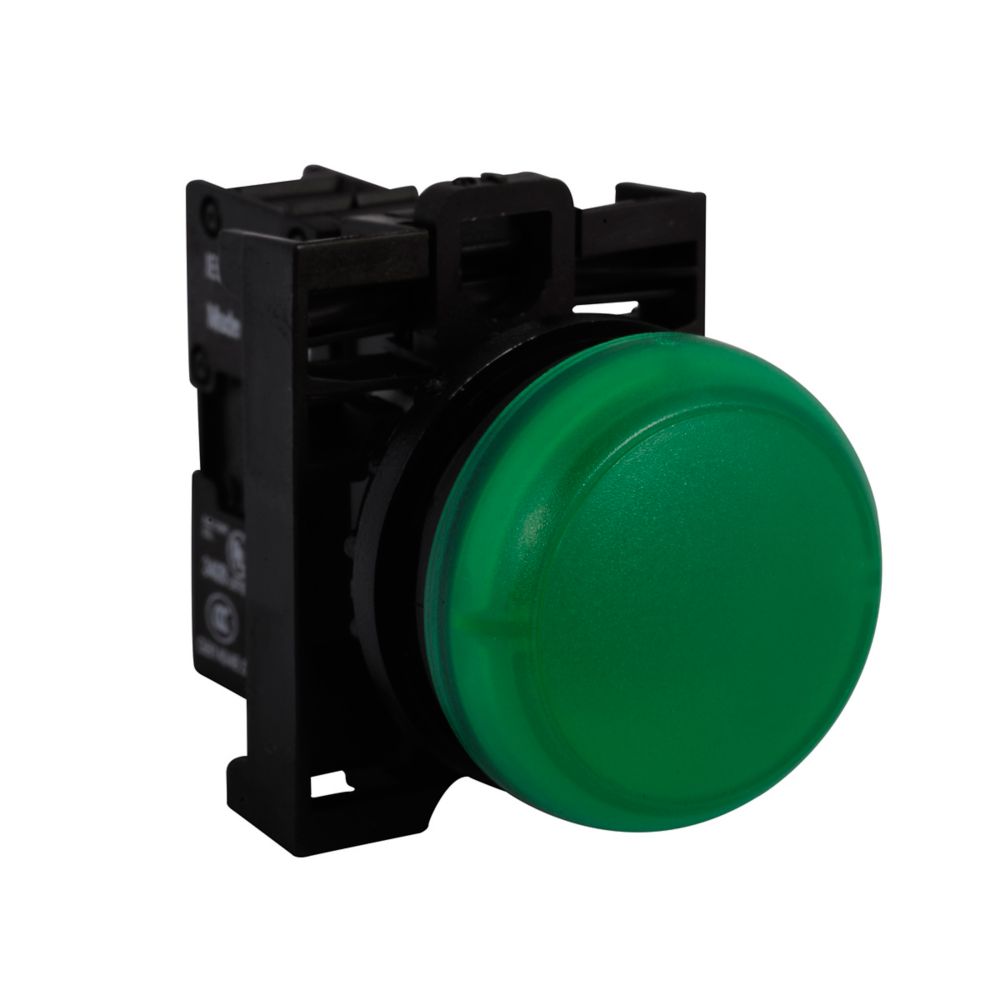

Product Name/Title: Green Indicating Light | 12-30VAC/DC | IP67 & IP69K Rated | 100,000 Hour Life | @Each by Eaton
Brand: Eaton
SKU: M22-L-G-G-P
Alternatively Known As: Eaton M22 Green LED Indicator Light, M22-L-G-G-P Indicator Lamp, Modular Pushbutton Indicator Light
Technical Specifications
- Voltage rating: 12-30 VAC/DC
- Illumination: Green LED
- Environmental rating: IP67, IP69K, NEMA 4X, 13
- Operating life: 100,000 hours
- Actuator type: Flush
- Lens color: Green
- Light color: Green
- Size: 22.5 mm
- Dimensions (H x L x W): 25mm x 50mm x 100mm
- Weight: 0.1 kg
Key Features
- Flush actuator design
- Green illuminated lens for clear status indication
- High environmental protection with IP67, IP69K, NEMA 4X, and 13 ratings
- Long operational life of 100,000 hours
- Operates on 12-30 VAC/DC voltage range
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper environmental sealing.
Applications
- Industrial control panels
- Machinery status indication
- Automation systems
- Electrical switchboards
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- LED technology reduces energy consumption compared to traditional bulbs
- Long lifespan reduces waste and replacement frequency
Warranty Information
One (1) year from the date of installation or eighteen (18) months from the date of shipment, whichever occurs first, as per Eaton Selling Policy 25-000.
Available Now
The Eaton M22-L-G-G-P Green Indicating Light is available for immediate purchase, ideal for industrial and automation control panel applications.
