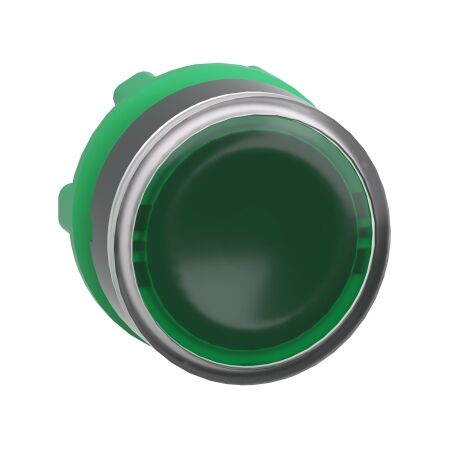

Green Latching Illuminated Pushbutton | 22mm Mounting Diameter | IP66/IP67/IP69 Rated | by Clipsal
The Green Latching Illuminated Pushbutton is designed for industrial control panels, featuring a 22mm mounting diameter and a push-push latching mechanism for secure operation. With an integral green LED for clear visual indication and high ingress protection (IP66/IP67/IP69), it's perfect for harsh environments and ensures reliable performance in machinery start/stop stations and building automation systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Green Latching Illuminated Pushbutton | 22mm Mounting Diameter | IP66/IP67/IP69 Rated | by Clipsal
Brand: Clipsal
SKU: SCHZB5AH033
Alternatively Known As: illuminated pushbutton, green latching push button, 22mm LED pushbutton, Clipsal SCHZB5AH033, push-push illuminated switch
Technical Specifications
- Actuator type: Push-push latching
- Illumination: Integral LED, green
- Head type: Flush
- Mounting diameter: 22mm
- Material: Plastic
- Rated insulation voltage: 600V
- Degree of protection: IP66, IP67, IP69, IP69K
- Mechanical durability: 5,000,000 cycles
- Electrical durability: 1,000,000 cycles
- Operating temperature: -40°C to +70°C
- Dimensions (H x L x W): 30mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Green flush illuminated pushbutton head for clear visual indication
- Latching (push-push) mechanism for secure operation
- 22mm mounting diameter suitable for standard control panels
- High ingress protection (IP66/IP67/IP69/IP69K) for harsh environments
- Long mechanical and electrical life for reliable performance
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards.
Applications
- Industrial control panels
- Machinery start/stop stations
- Building automation systems
- Commercial equipment control interfaces
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- LED illumination reduces energy consumption compared to traditional bulbs
- Durable design minimizes replacement frequency and waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Green Latching Illuminated Pushbutton SCHZB5AH033 is available for immediate purchase. Ideal for industrial and commercial control panel applications requiring clear visual feedback and reliable latching action.
