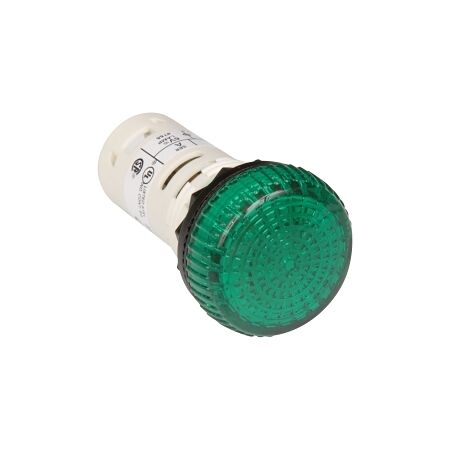

Allen-Bradley 800F Pilot Light Monolithic 22.5mm Green Integrated LED 120V AC

Green LED Pilot Light 22.5mm | 120V AC | Monolithic Design by NHP

BRAND: NHP

SKU: 800FDP3N5

$45.70 List price: $60.70

+ −

30 Days Return Delivery Options

Green LED pilot light with 22.5mm diameter and 120V AC operation—ideal for industrial control panels and commercial equipment status indication. Built for reliability, with monolithic design and easy screw connection.

Description
Attachments

Product Name/Title: Allen-Bradley 800F Pilot Light Monolithic 22.5mm Green Integrated LED 120V AC

Brand: NHP

SKU: 800FDP3N5

Alternatively Known As: 800F Pilot Light, Green Indicator Light, 22.5mm LED Light

Technical Specifications

Operating Voltage: 120 V AC
Type of Electric Connection: Screw connection
Number of Indicator Lights: 1
Colour Lens: Green
Degree of Protection: Other
Material Front Ring: Plastic
With Light Source: Yes
Construction Type Lens: Round
With Front Ring: Yes
Max Shock Acceleration: 100 g
Max Vibration Frequency Operational: 2000 Hz
Max Vibration Acceleration: 10 m/s²
Hole Diameter: 22.5 mm
Diameter Cap: 30.4 mm
Dimensions (H x L x W): 22.5mm x 30.4mm x 30.4mm
Weight: 0.2 kg

Key Features

Monolithic design with integrated LED for reliable performance.
Screw connection for easy installation.
Green lens for clear visibility.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Control panels, machinery indicators
Commercial: Equipment status indication

Standards & Compliance

Complies with AS/NZS 60950 for safety of IT and communication equipment.

Environmental Benefits

Energy-efficient LED technology reduces power consumption.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 800F Pilot Light Monolithic 22.5mm Green Integrated LED 120V AC is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable

800FDP3N5-AU-Monolithic-Pilot-Light-22.5mm-Datasheet.pdf (800FDP3N5-AU-Monolithic-Pilot-Light-22.5mm-Datasheet.pdf, 268 Kb) [Download]
