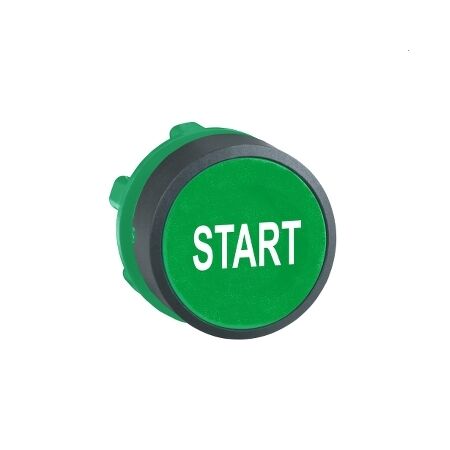

Green Push Button Head | 22mm Flush | Spring Return | IP66 Rated by Clipsal
Green push button head with 22mm flush mount and spring return—ideal for industrial control panels. Built for durability with IP66 rating and 10 million cycle lifespan, marked START for easy identification.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Harmony XB5, push-button head, plastic, flush, green, 22mm, spring return, marked START
Brand: Clipsal
SKU: ZB5AA333
Alternatively Known As: Harmony XB5 Push Button, Green Push Button Head, Industrial Push Button
Technical Specifications
- Type: Head for non-illuminated push-button
- Mounting diameter: 22 mm
- Bezel material: Dark grey plastic
- Ambient air temperature for operation: -40...70 °C
- IP Rating: IP66, IP67, IP69, IP69K
- IK Rating: IK03
- Mechanical durability: 10,000,000 cycles
- Overvoltage category: Class II
- NEMA degree of protection: NEMA 13, NEMA 4X
- Shock resistance: 30 gn for half sine wave acceleration
- Vibration resistance: 5 gn (f= 2-500 Hz)
- Dimensions (H x L x W): 29mm x 29mm x 22mm
- Weight: 0.018 kg
Key Features
- Spring return mechanism for easy operation.
- IP66 rated for protection against dust and water.
- Mechanical durability of 10 million cycles.
- Marked START for clear identification.
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Industrial: Control panels, machinery, and equipment.
Standards & Compliance
- Complies with IEC 60947-1, IEC 60947-5-4, UL 508, JIS C8201-5-1
Environmental Benefits
- Green Premium product with packaging made from recycled cardboard.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB5 Push-Button Head in green is available now for immediate purchase. Ideal for industrial control applications.
