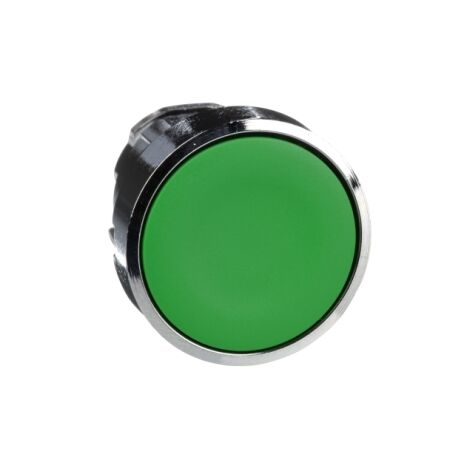

Green Push Button Head | 22mm Spring Return | IP69K Rated by Clipsal
Green push button head with 22mm diameter and spring return—ideal for industrial control panels and machinery. Built for durability, with IP69K rating for high protection against dust and water.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Harmony XB4, push-button head, metal, flush, green, 22mm, spring return, unmarked
Brand: Clipsal
SKU: ZB4BA3
Alternatively Known As: Harmony XB4 Push Button, Green Push Button Head, Industrial Push Button
Technical Specifications
- Type: Head for non-illuminated push-button
- Material: Chromium plated metal
- Operating temperature: -40 to 70 °C
- Vibration resistance: 5 gn (f= 2-500 Hz)
- Shock resistance: 30 gn (duration = 18 ms)
- Overvoltage category: Class I
- NEMA degree of protection: NEMA 13, NEMA 4X
- Dimensions (H x L x W): 29mm x 29mm x 22.5mm
- Weight: 0.028 kg
Key Features
- IP66, IP67, IP69K rated for high protection against dust and water.
- Mechanical durability of 10 million cycles.
- Spring return mechanism for reliable operation.
Professional Installation Requirements
- Professional installation is recommended for optimal safety and functionality.
Applications
- Industrial: Control panels, machinery, automation systems
Standards & Compliance
- Complies with IEC 60947-5-1 for safety and performance standards.
Environmental Benefits
- Green Premium product with packaging made from recycled cardboard.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Harmony XB4 Green Push-Button Head is available now for immediate purchase. Ideal for industrial control applications.
