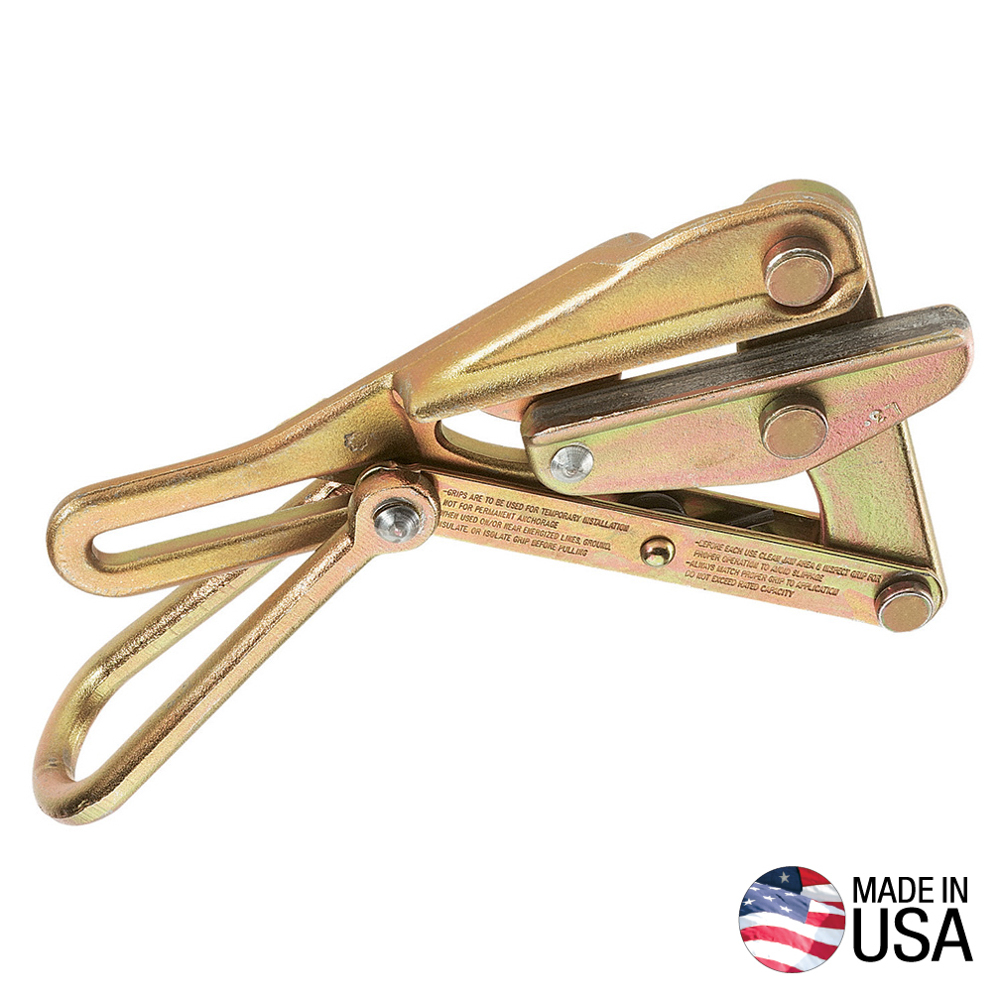

Grip for High-Strength Cables | 14 mm | 3629 kg Load Capacity | Double V Groove Design | by Wattmaster
The Grip for High-Strength Cables is designed for cable sizes from 5.5 mm to 13.9 mm, providing a maximum safe load of 3629 kg. Ideal for wire pulling in construction and electrical applications, this durable grip features double 'V' grooves for enhanced cable alignment and a locking handle for easy placement. Built from drop-forged, heat-treated steel, it ensures reliability and safety during use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Grip for High-Strength Cables | 14 mm | 3629 kg Load Capacity | Double V Groove Design | by Wattmaster
Brand: Wattmaster
SKU: A-1684-5
Alternatively Known As: Chicago Grip, Wire Pulling Grip, Cable Grip, High-Strength Cable Grip, Wire Puller
Technical Specifications
- Cable Diameter Range: 5.5 mm to 13.9 mm (0.218'' to 0.55'')
- Maximum Safe Load: 3629 kg (8000 lbs)
- Jaw Type: Double V groove
- Tooth Type: Smooth
- Jaw Length: 127 mm (5 inches)
- Material: Drop-forged, heat-treated steel
- Locking Handle: Yes
- Spring Loaded: Yes
- Hot Latch: No
- Swing Latch: No
- Dimensions (H x L x W): 150mm x 127mm x 50mm
- Weight: 2.6 kg
Key Features
- Designed for cable sizes from 5.5 mm to 13.9 mm (0.218'' to 0.55'')
- Maximum safe load of 3629 kg (8000 lbs)
- Double 'V' grooves provide four-point contact to reduce slipping and ensure proper cable alignment
- Manufactured from drop-forged, heat-treated steel for durability
- Locking handle keeps jaw open for easy placement with a hot stick
- Spring loaded jaw with smooth tooth type
- Made in the USA
Professional Installation Requirements
- Professional installation by trained personnel is recommended to ensure safe and proper use, especially when working near live electrical lines.
Applications
- Wire pulling for aluminium, copper, weatherproof coated wire, PVC-covered conductors
- Suitable for messenger and guy strand cables
- Temporary cable installation and pulling tasks
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Enables safe and efficient cable installation, reducing risk of damage to cables and environment
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Wattmaster Grip for High-Strength Cables - 14 mm is available for immediate purchase, ideal for wire pulling applications in construction, electrical, and utility industries.
