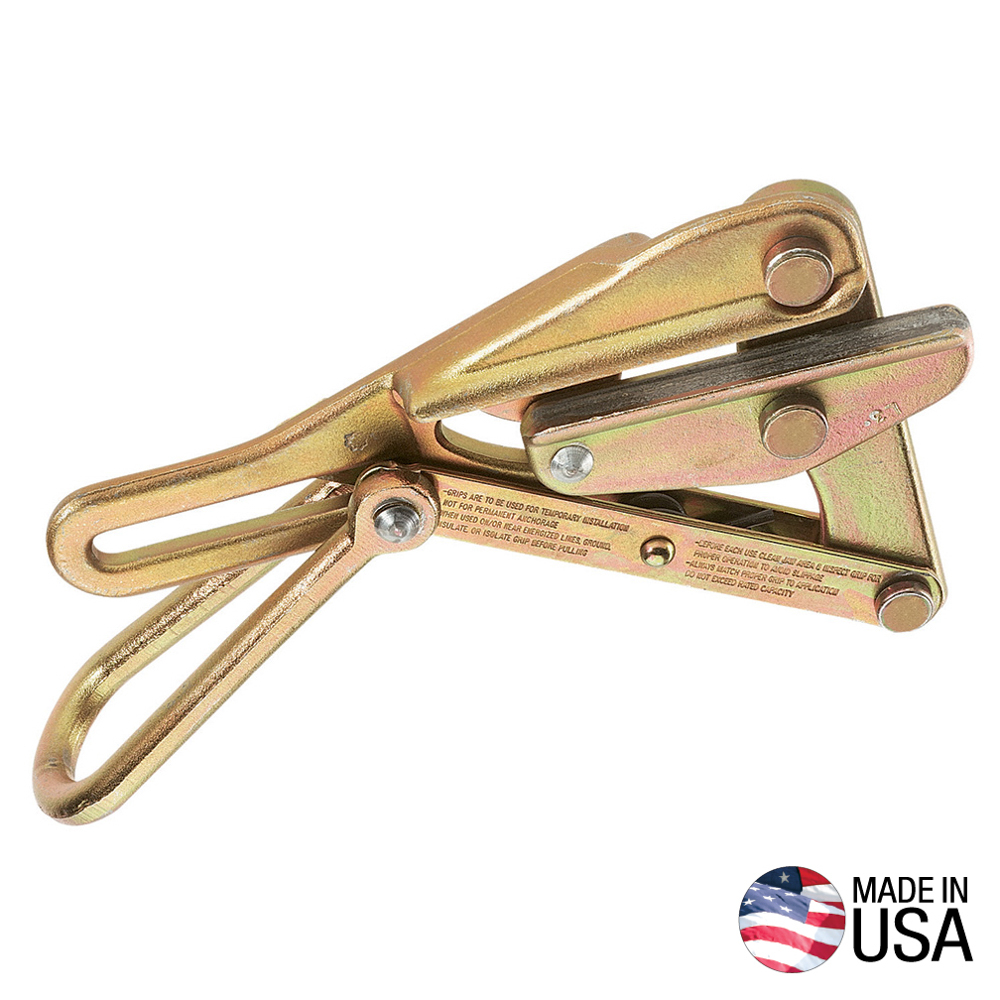

Grip for High-Strength Cables | 15,000 lbs Load Capacity | Double V Grooves | Locking Handle | by Wattmaster
The Grip for High-Strength Cables is designed for cables with diameters ranging from 0.31'' to 0.62'' (7.9 mm to 15.7 mm), making it ideal for electrical, construction, and utility applications. With a maximum safe load of 15,000 lbs and double V grooves for enhanced grip, this durable tool ensures secure cable handling and alignment, perfect for professionals in the field.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Grip for High-Strength Cables | 15,000 lbs Load Capacity | Double V Grooves | Locking Handle | by Wattmaster
Brand: Wattmaster
SKU: A-1628-16
Alternatively Known As: Chicago Grip, Wire Pulling Grip, Cable Grip, High-Strength Cable Grip, Guy Strand Grip
Technical Specifications
- Cable Diameter Compatibility: 0.31'' to 0.62'' (7.9 mm to 15.7 mm)
- Maximum Safe Load: 15,000 lbs (6803 kg)
- Jaw Type: Double V grooves for four-point contact
- Jaw Length: 7.25'' (184 mm)
- Locking Handle: Yes
- Material: Custom drop-forged steel, machined and heat treated
- Weight: 13.7 lb (6.2 kg)
- Dimensions (H x L x W): 185mm x 185mm x 70mm
- Weight: 6.2 kg
Key Features
- Designed for 0.31'' to 0.62'' (7.9 mm to 15.7 mm) diameter cable sizes
- Maximum safe load of 15,000 lbs (6803 kg)
- Double V grooves provide four-point contact to reduce slipping and ensure proper cable alignment
- Locking handle keeps jaw open for easy placement on cable with a hot stick
- Manufactured from custom drop-forged steel, machined and heat treated for durability
- Individually hand inspected and actuated for proper function
- Rigorously tested and pulled to rated load for quality and reliability
- Made in the USA
Professional Installation Requirements
- Should be installed and used by trained professionals familiar with cable handling and safety procedures to ensure proper operation and avoid slippage.
Applications
- Extra-high-strength cables
- Messenger cables
- Guy strand cables
- Aircraft cables
- EHS cables
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces the need for frequent replacements, minimizing waste
- Designed for temporary installation, supporting safe and efficient cable handling
Warranty Information
Warranty details are subject to Wattmaster's standard terms and conditions. Please refer to the manufacturer for specific warranty coverage.
Available Now
The Wattmaster Grip for High-Strength Cables - 16 mm Chicago Grip is available for immediate purchase, ideal for use in electrical, construction, and utility applications requiring secure cable handling.
