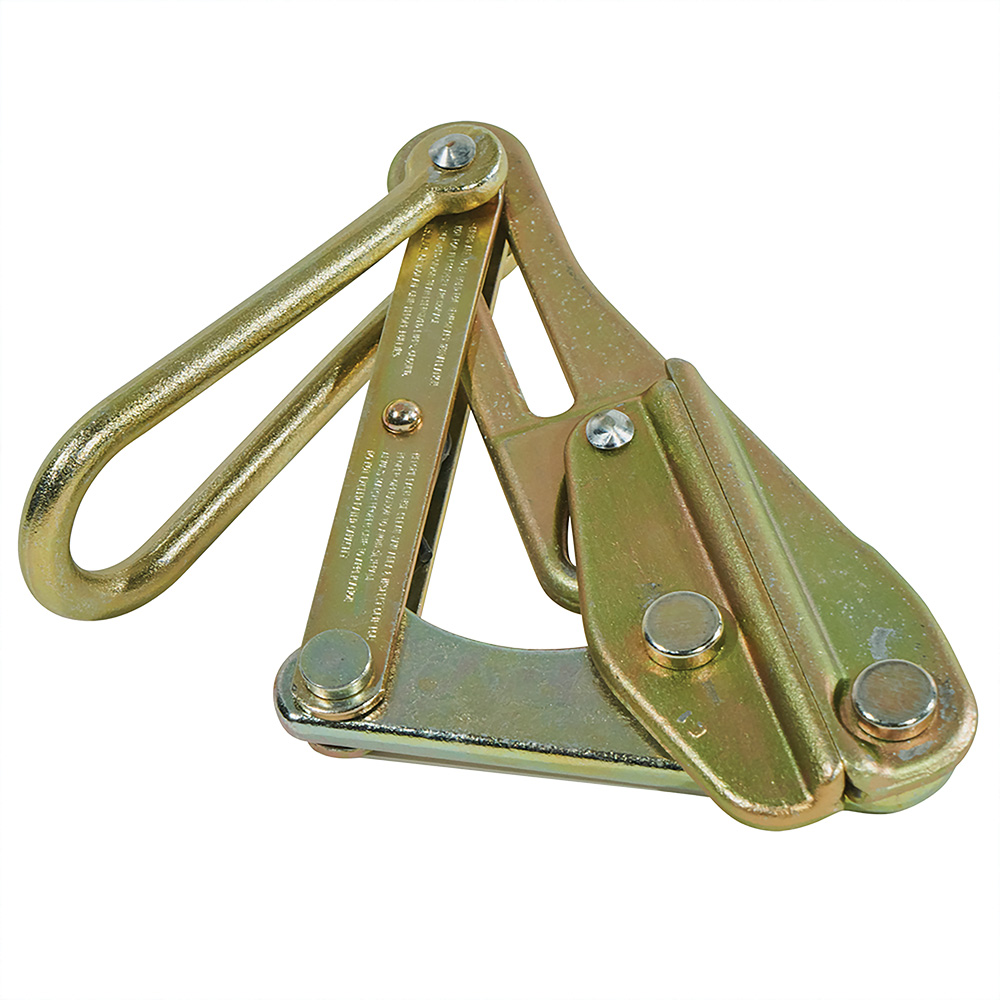

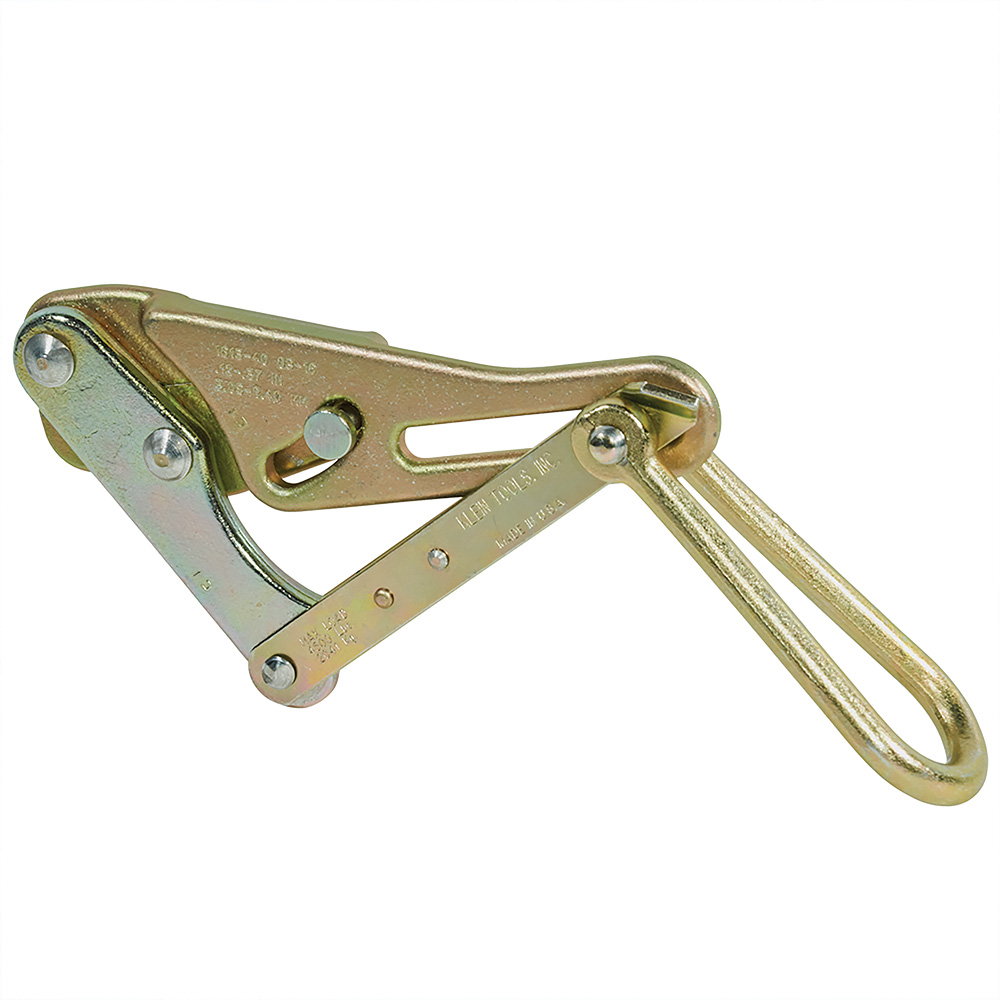

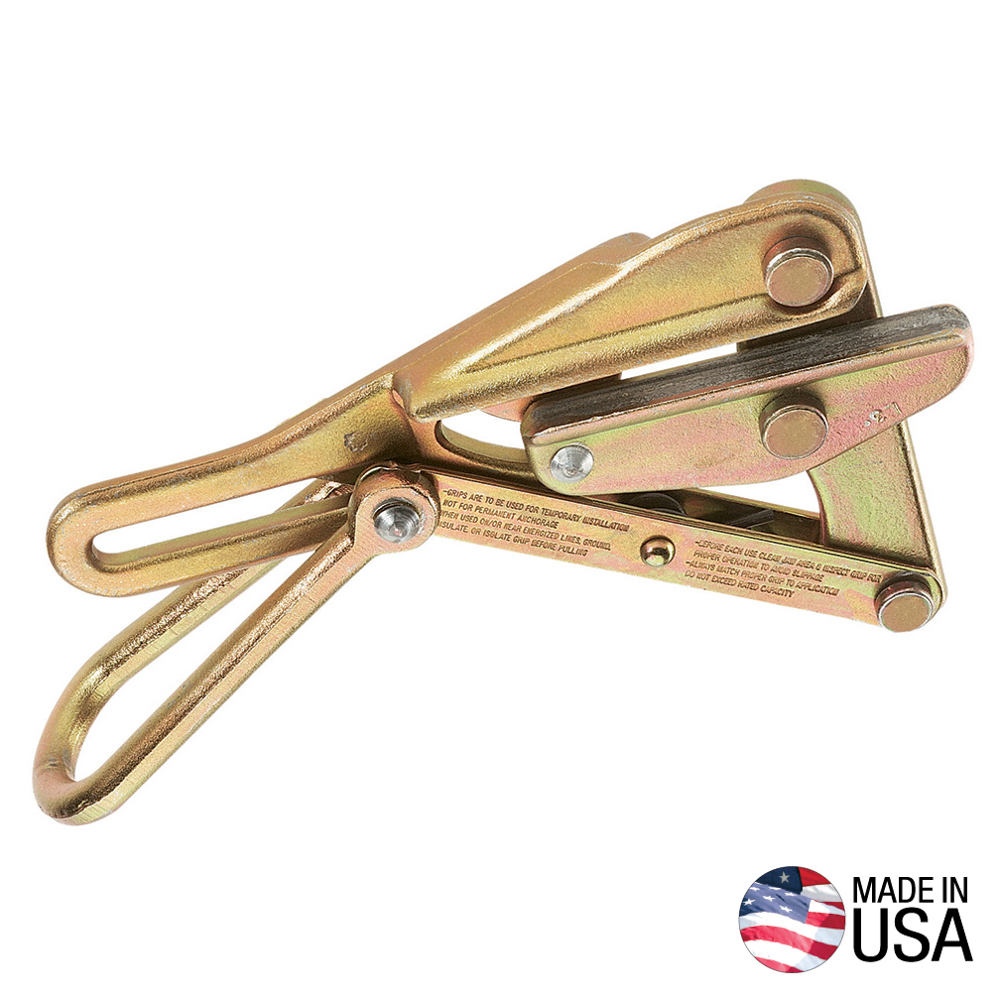

Grip for High Strength Cables | Double V Grooves | 4500 lbs Load Capacity | Custom Drop-Forged Steel | @Each by Wattmaster
The Grip for High Strength Cables is designed for cables ranging from 0.12'' to 0.37'' in diameter, featuring double V grooves for enhanced grip and a maximum safe load of 4500 lbs. Ideal for professional use with extra-high-strength cables, this durable grip ensures reliable performance and safety during installation, making it perfect for various applications including messenger and guy strand cables.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Grip for High Strength Cables | Double V Grooves | 4500 lbs Load Capacity | Custom Drop-Forged Steel | @Each by Wattmaster
Brand: Wattmaster
SKU: A-1613-40
Alternatively Known As: Chicago Grip, Wire Pulling Grip, Cable Grip, High Strength Cable Grip
Technical Specifications
- Compatible Cable Diameter: 0.12'' to 0.37'' (3.05 to 9.40 mm)
- Maximum Safe Load: 4500 lbs (2041 kg)
- Jaw Type: Double V grooves for four-point contact
- Material: Custom drop-forged steel, machined and heat treated
- Locking Handle: Yes
- Weight: 2.7 lb (1.2 kg)
- Jaw Length: 4.188'' (10.6 cm)
- Hot Latch: No
- Swing Latch: No
- Spring: No
- Dimensions (H x L x W): 106mm x 106mm x 40mm
- Weight: 1.2 kg
Key Features
- Double V grooves provide four-point contact to reduce slipping and ensure proper cable alignment
- Designed for cable sizes from 0.12'' to 0.37'' (3.05 to 9.40 mm)
- Maximum safe load of 4500 lbs (2041 kg)
- Made from custom drop-forged steel, machined and heat treated for durability
- Individually hand inspected and tested to rated load for quality and reliability
- Locking handle included for secure grip
Professional Installation Requirements
- Professional use recommended; inspect grip before each use and ensure proper operation to avoid slippage. Use appropriate safety measures when working near live lines.
Applications
- Extra-high-strength cables
- Messenger cables
- Guy strand cables
- Aircraft and EHS cables
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable construction reduces need for frequent replacements, minimizing waste
- Manufactured with high-quality materials for long service life
Warranty Information
Warranty details not specified; product quality ensured through rigorous testing and inspection.
Available Now
The Wattmaster Grip for High Strength Cables 0.94 cm is available for immediate purchase, ideal for use with extra-high-strength cables, messenger, and guy strand applications.
