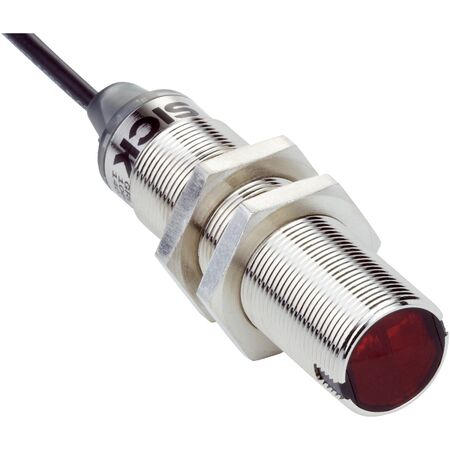

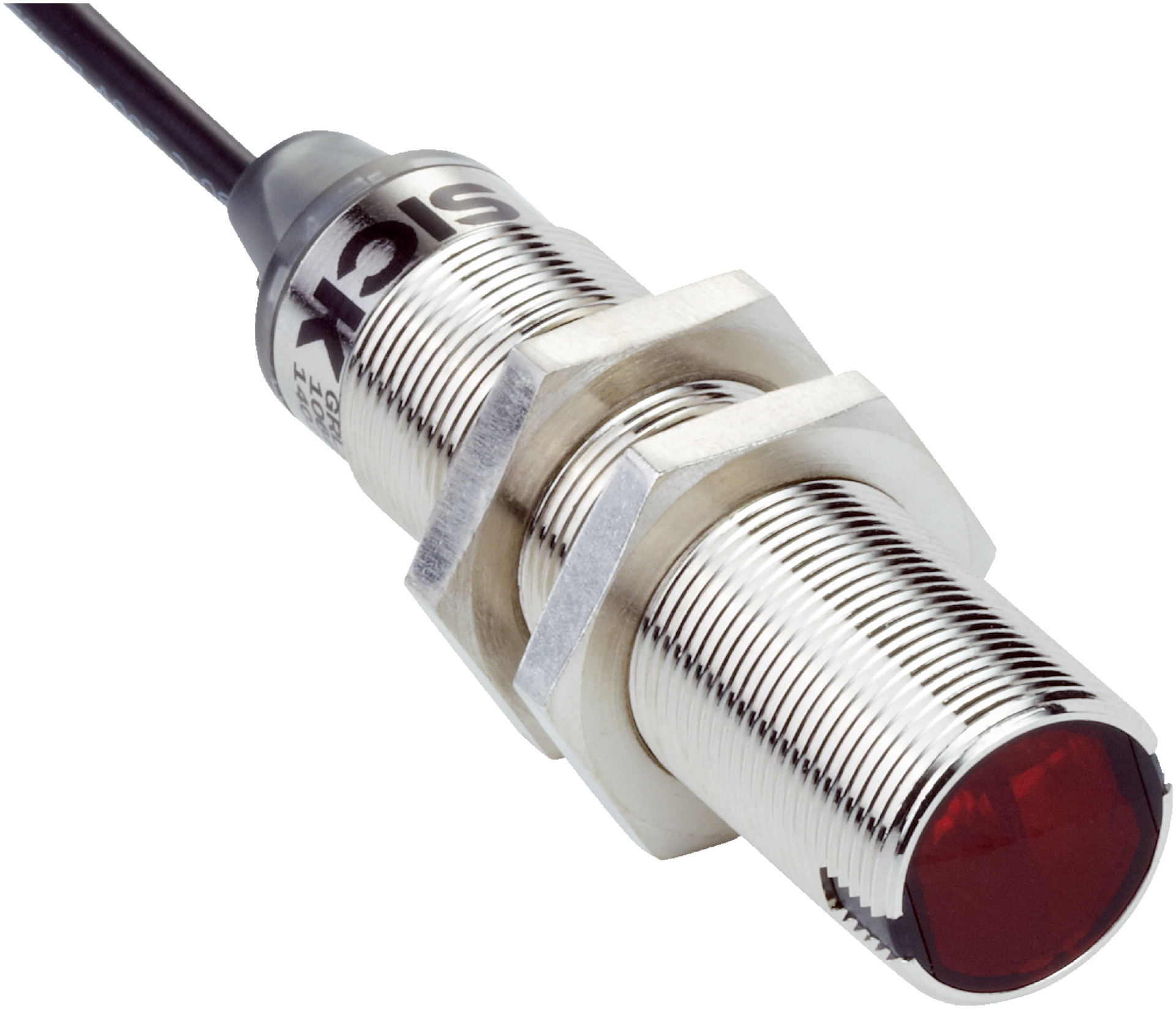

GRL18-P1132 | Photoelectric sensors
The SICK GRL18-P1132 is a durable photoelectric retro-reflective sensor designed for precise object detection in industrial automation, featuring a robust metal housing and IP67 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GRL18-P1132 | Photoelectric sensors
Brand: SICK
SKU: 1066556
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Industrial object sensor, SICK sensor GRL18-P1132
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.06 m to 6 m
- Light source: PinPoint LED, 650 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 500 µs
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 2 m, PVC
- Protection class: III
- Housing material: Metal (nickel-plated brass) and ABS
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 18mm x 72mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Axial optical axis with sensing range from 0.06 m to 6 m
- Potentiometer adjustment for sensitivity
- LED indicators for power and object detection status
- Robust metal housing with nickel-plated brass and ABS
- IP67 rated enclosure for dust and water protection
- Polarisation filter to reduce interference
- Cable connection with 4-wire, 2 m PVC cable
- High switching frequency of 1000 Hz and fast response time under 500 µs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable construction minimizes waste and replacement frequency
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GRL18-P1132 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
