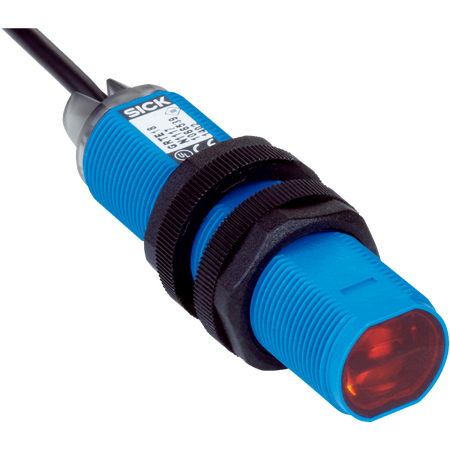

GRTE18-P1117 | Photoelectric sensors
The SICK GRTE18-P1117 is a robust photoelectric proximity sensor featuring a visible red PinPoint LED, suitable for precise object detection in industrial automation with IP67 protection and fast response time.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: GRTE18-P1117 | Photoelectric sensors
Brand: SICK
SKU: 1066540
Alternatively Known As: Photoelectric sensor, Proximity sensor, Optical sensor, PNP photoelectric sensor, Cylindrical photoelectric sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 1,000 µs
- Switching frequency: 500 Hz
- Cable: 4-wire, 2 m, PVC
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- EMC: EN 60947-5-2
- UL File No.: E348498
- Dimensions (H x L x W): 18mm x 72mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light with PinPoint LED light source
- Axial optical axis with sensing range from 5 mm to 100 mm
- Potentiometer adjustment for sensitivity
- LED indicators: green for power, yellow for object detection
- Robust cylindrical housing with M18 x 1 thread diameter
- High switching frequency of 500 Hz and response time under 1 ms
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +55°C
- Cable connection with 4-wire, 2 m PVC cable
- Complementary PNP output with light/dark switching mode
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GRTE18-P1117 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
